> SIEMENS>AUTOMAÇÃO>SIMATIC S7-1500: E / S>6ES7523-1BL00-0AA0 SIEMENS SIMATIC S7-1500 digital input/output module, DI16x 24VDC BA, 16 channels in group..
ANUNCIAR
Produto anterior Próximo produto

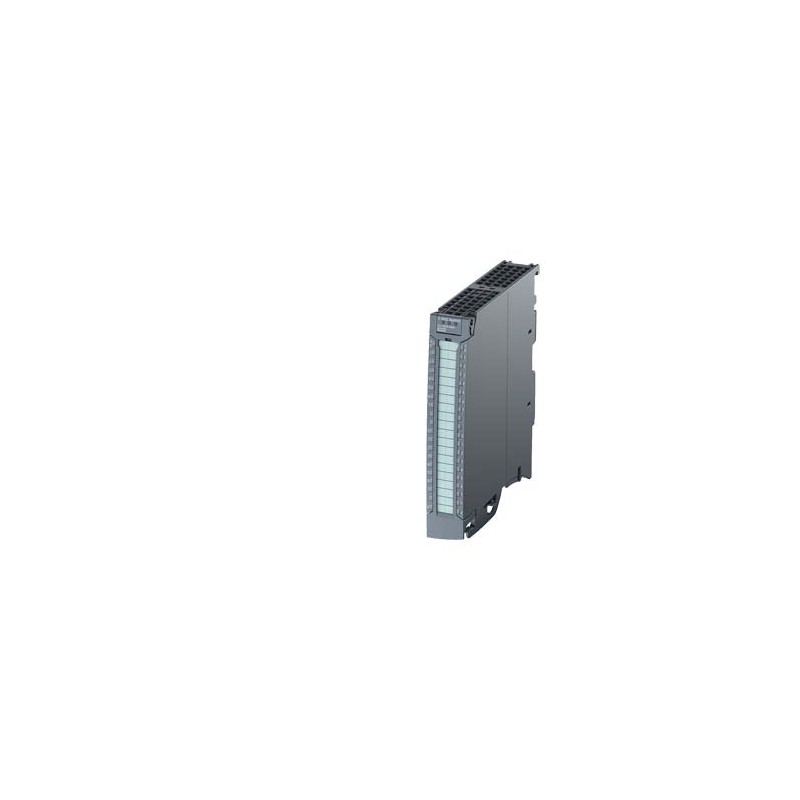

6ES7523-1BL00-0AA0 SIEMENS SIMATIC S7-1500 digital input/output module, DI16x 24VDC BA, 16 channels in group.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

6ES7523-1BL00-0AA0 SIEMENS SIMATIC S7-1500 digital input/output module, DI16x 24VDC BA, 16 channels in group..

6ES7523-1BL00-0AA0

SIEMENS

SIMATIC S7-1500 digital input/output module, DI16x 24VDC BA, 16 channels in groups of 16, input delay typ. 3.2 ms input type 3 (IEC 61131), DQ16XDC 24V/0.5A BA; 16 channels in groups of 8; 4 A per group; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015. delivery including front connector push-in,

SIMATIC S7-1500, Módulo Digital de I/O, ED 16 x 24VDC, 16 canais em grupos de 16, input delay 3.2MS; tipo de entrada 3 (CIS 61131), SD 16 x DC24V / 0,5A; 16 canais em grupos de 8; 4A por grupo. Inclui conector PUSH-IN dianteiro

Mais detalhes


AUTOMAÇÃO > SIMATIC S7-1500: E / S

Produto novo em sua embalagem original com todas as garantias e certificações de SIEMENS

Preço total: $637.81
Preço unitário: $637.81
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


Dados adicionais

Product
Article Number (Market Facing Number)6ES7523-1BL00-0AA0
Product DescriptionSIMATIC S7-1500 digital input/output module, DI16x 24VDC BA, 16 channels in groups of 16, input delay typ. 3.2 ms input type 3 (IEC 61131), DQ16XDC 24V/0.5A BA; 16 channels in groups of 8; 4 A per group; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015. delivery including front connector push-in,
Product familySM 523 digital input/output modules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group219 / 219
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works70 Day/Days
Net Weight (kg)0,346 Kg
Packaging Dimension15,10 x 20,30 x 3,70
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047623402312
UPC887621779047
Commodity Code85389091
LKZ_FDB/ CatalogIDST73
Product Group4501
Group CodeR151
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 21.10.2013
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-22-04
eClass7.127-24-22-04
eClass827-24-22-04
eClass927-24-22-04
eClass9.127-24-22-04
ETIM5EC001419
ETIM6EC001419
ETIM7EC001419
ETIM8EC001419
IDEA43566
UNSPSC1532-15-17-05

Dados ETIM

ETIM: EC001419 - Módulo de entradas/saídas digitais do PLC

Valor Unidade



Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
6ES7523-1BL00-0AA0 EN_6ES7523-1BL00-0AA0.pdf 190 Kbytes 6ES7523-1BL00-0AA0 EN_6ES7523-1BL00-0AA0.pdf
