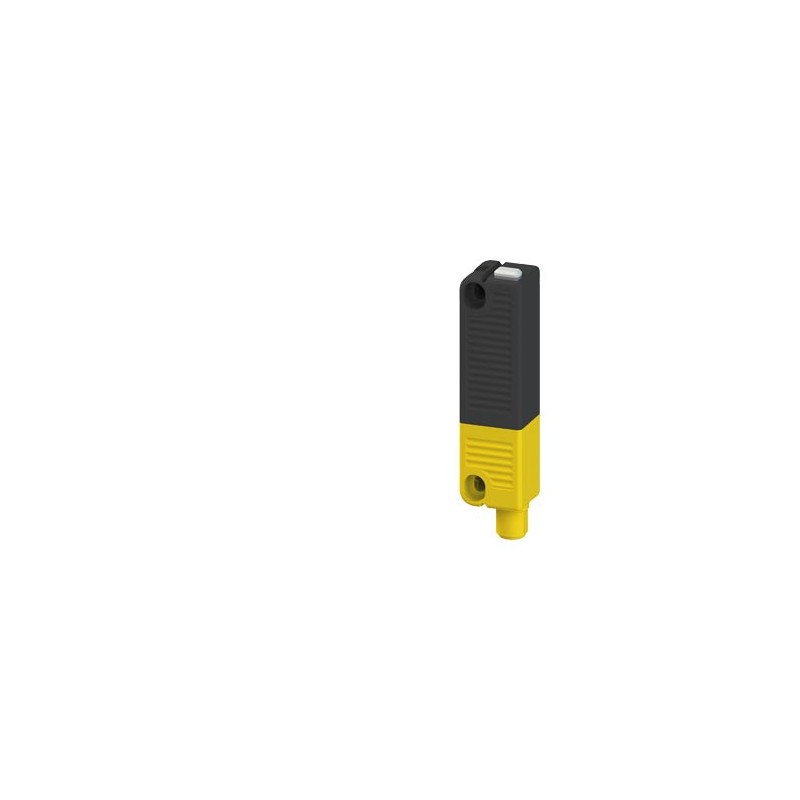

SIEMENS 3SE6315-1BB03-1AP0 3SE6315-1BB03-1AP0 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

3SE6315-1BB03-1AP0 SIEMENS contact-free safety switch RFID rectangular 106 mm x 25 mm individually coded, si..

Referência: 3SE6315-1BB03-1AP0

Fabricante: SIEMENS

Descrição:

contact-free safety switch RFID rectangular 106 mm x 25 mm individually coded, single teach-in, with M12 plug 8-pole and magnet latching 18 N. order actuator separately: 3SE6310-1BC01
variante sem contato da chave de segurança RFID retangular de 106 mm × codificação única de 25 mm, aprendizado único, com conector M12 de 8 pólos e retenção magnética de 18 N; Encomende o atuador separadamente: 3SE6310-1BC01.

Categorias:

  • SIEMENS > CONTROLE E CONTATORES > Interruptores de limite e relés de segurança

Produto novo em sua embalagem original com todas as garantias e certificações de SIEMENS

  • Mais informação
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 413,42 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 4-6 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

Dados adicionais

Product
Article Number (Market Facing Number)3SE6315-1BB03-1AP0
Product Descriptioncontact-free safety switch RFID rectangular 106 mm x 25 mm individually coded, single teach-in, with M12 plug 8-pole and magnet latching 18 N. order actuator separately: 3SE6310-1BC01
Product family3SE63 RFID safety switches
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works60 Day/Days
Net Weight (kg)0,115 Kg
Packaging Dimension120,00 x 140,00 x 35,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621100227
UPCNot available
Commodity Code85365019
LKZ_FDB/ CatalogIDCC-IC10
Product Group3750
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass1227-27-44-01
eClass627-27-24-02
eClass7.127-27-24-02
eClass827-27-24-02
eClass927-27-24-02
eClass9.127-27-24-02
ETIM7EC002544
ETIM8EC002544
