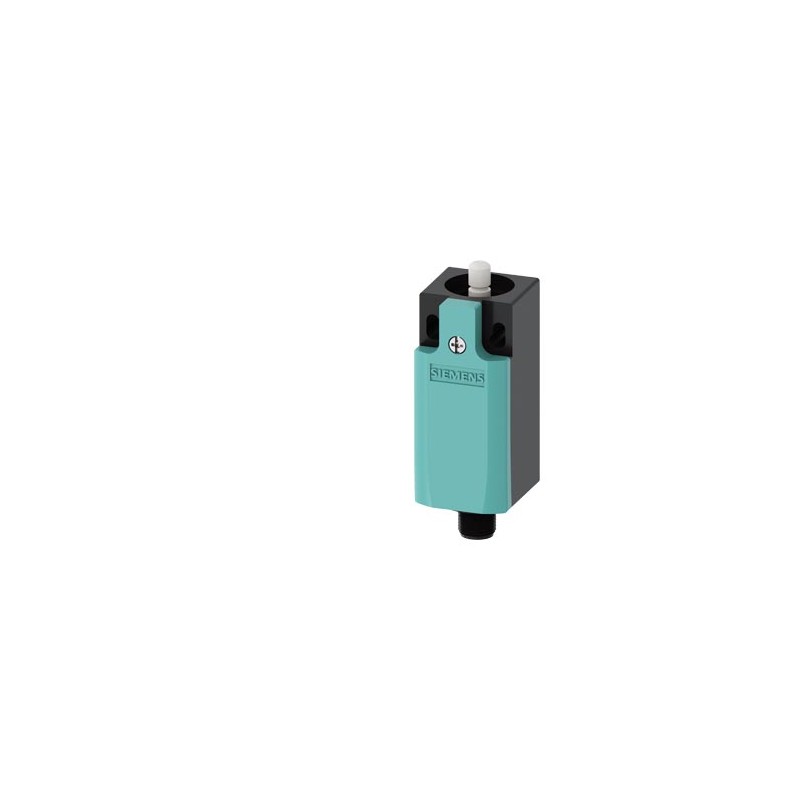

SIEMENS 3SE5234-0LC05-1AE2 3SE5234-0LC05-1AE2 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

3SE5234-0LC05-1AE2 SIEMENS Basic switch/complete switch, plastic enclosure according to EN 50047, 31 mm, 1 N..

Referência: 3SE5234-0LC05-1AE2

Fabricante: SIEMENS

Descrição:

Basic switch/complete switch, plastic enclosure according to EN 50047, 31 mm, 1 NO/2 NC quick action contacts, with M12 connector, 5-pole, 2 NC connected. Pin assignment: Pin1=21, Pin4=22 Pin2=31, Pin5=32 for max. 125 V and 4 A with Teflon plunger. Suitable for connection to all SIMATIC ET200* compact block I/O modules.
Caixa plástica do interruptor de posição conforme DIN EN 50047, contatos de ação súbita de 31 mm 1NA/2NC com conector M12, 4 polos conectados 2NA Distribuição de Pinos: Pino 1=21, Pino2=22, Pino3=31, Pino4=32 para 250 V e 4 A máximo com haste de Teflon.

Categorias:

  • Sensores > Interruptor de posição individual
  • SIEMENS > CONTROLE E CONTATORES > Interruptores de limite e relés de segurança

Produto novo em sua embalagem original com todas as garantias e certificações de SIEMENS

  • Mais informação
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 41,00 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 4-6 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

Dados adicionais

Product
Article Number (Market Facing Number)3SE5234-0LC05-1AE2
Product DescriptionBasic switch/complete switch, plastic enclosure according to EN 50047, 31 mm, 1 NO/2 NC quick action contacts, with M12 connector, 5-pole, 2 NC connected. Pin assignment: Pin1=21, Pin4=22 Pin2=31, Pin5=32 for max. 125 V and 4 A with Teflon plunger. Suitable for connection to all SIMATIC ET200* compact block I/O modules.
Product familyEnclosure width 31 mm acc. to EN 50047
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41K / 41K
Surcharge for Raw MaterialsNone
Metal FactorLA------
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works10 Day/Days
Net Weight (kg)0,074 Kg
Packaging Dimension50,00 x 129,00 x 43,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621064635
UPCNot available
Commodity Code85365080
LKZ_FDB/ CatalogIDCC-IC10
Product Group5317
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Imidazolidine-2-thione (2-imidazoline-2-thiol)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-27-06-01
eClass7.127-27-06-01
eClass827-27-06-01
eClass927-27-06-01
eClass9.127-27-06-01
ETIM5EC000030
ETIM6EC000030
ETIM7EC000030
ETIM8EC000030
IDEA45202
UNSPSC1539-12-22-13

Dados ETIM

ETIM: EC000030 - Interruptor de posição individual

Valor Unidade
