> SIEMENS>CONTROLE E CONTATORES>Arrancadores de alto desempenho>3RW4436-6BC36 SIEMENS SIRIUS soft starter Values at 575 V, 50 °C standard: 145 A, 125 hp Inside-delta: 251 A..
Produto anterior Próximo produto

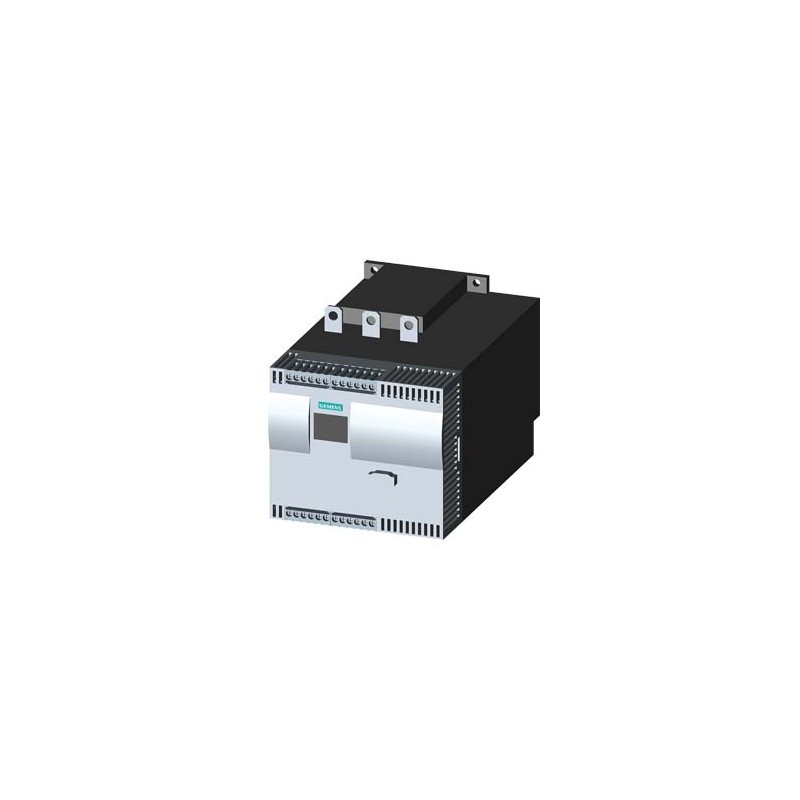

3RW4436-6BC36 SIEMENS SIRIUS soft starter Values at 575 V, 50 °C standard: 145 A, 125 hp Inside-delta: 251 A.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

3RW4436-6BC36 SIEMENS SIRIUS soft starter Values at 575 V, 50 °C standard: 145 A, 125 hp Inside-delta: 251 A..

3RW4436-6BC36

SIEMENS

SIRIUS soft starter Values at 575 V, 50 °C standard: 145 A, 125 hp Inside-delta: 251 A, 250 hp 400-690 V AC, 115 V AC Screw terminals !!! Phased-out product !!! Successor is SIRIUS 3RW5, Preferred successor type is >>3RW5536-6HA16<

SIRIUS Acionador de partida eletrônico de alto desempenho 400 - 690 V AC/690 V, 40ºC, CLASS10: (c. padrão: 162A, 160KW) Vm: 115V AC, conexão de parafuso. Fabricado sob encomenda sem possibilidade de devolução ou cancelamento.

Mais detalhes


Aparelhos elétricos de baixa tensão > Acionador de partida progressivo

CONTROLE E CONTATORES > Arrancadores de alto desempenho

Produto novo em sua embalagem original com todas as garantias e certificações de SIEMENS

* Este artigo pode estar obsoleto. Se você estiver interessado, insira seu e-mail e informaremos se há unidades disponíveis. Caso não existam mais, um dos nossos técnicos procurará uma alternativa fornecivel com características semelhantes.

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


Dados adicionais

Product
Article Number (Market Facing Number)3RW4436-6BC36
Product DescriptionSIRIUS soft starter Values at 575 V, 50 °C standard: 145 A, 125 hp Inside-delta: 251 A, 250 hp 400-690 V AC, 115 V AC Screw terminals !!! Phased-out product !!! Successor is SIRIUS 3RW5, Preferred successor type is >>3RW5536-6HA16<<
Product family3RW44 soft starters
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 01.10.2019
Notes
Sucessor:Nachfolger ist SIRIUS 3RW5, Präferierte Nachfolgertype ist >>3RW5536-6HA16<<
Price data
Region Specific PriceGroup / Headquarter Price Group42H / 42H
Surcharge for Raw MaterialsNone
Metal FactorLAO-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works50 Day/Days
Net Weight (kg)6,523 Kg
Packaging Dimension320,00 x 390,00 x 320,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209625792
UPC887621015558
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3728
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 28.05.2009
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

4,4'-isopropylidenediphenol (Bisphenol A, BPA)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead titanium zirconium oxide

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-09-07
eClass7.127-37-09-07
eClass827-37-09-07
eClass927-37-09-07
eClass9.127-37-09-07
ETIM5EC000640
ETIM6EC000640
ETIM7EC000640
ETIM8EC000640
IDEA44740
UNSPSC1439-12-15-21
UNSPSC1539-12-15-21

Dados ETIM

ETIM: EC000640 - Acionador de partida progressivo

Valor Unidade



Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3RW4436-6BC36 3RW4436-6BC36 PT_3RW4436-6BC36.pdf 227 Kbytes 3RW4436-6BC36 3RW4436-6BC36 PT_3RW4436-6BC36.pdf
