> PHOENIX_CONTACT>Conectores PCB>ZFKDSA 4-7,5- 4 BS:L1,L2,L3,PE 1986107 PHOENIX CONTACT Do PWB bloco terminal
Produto anterior Próximo produto

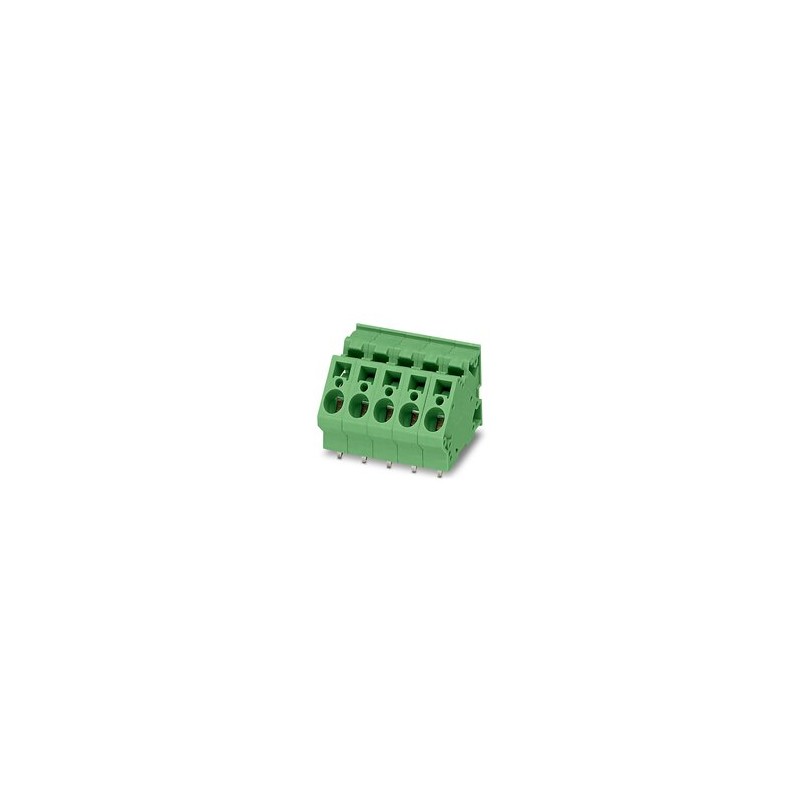

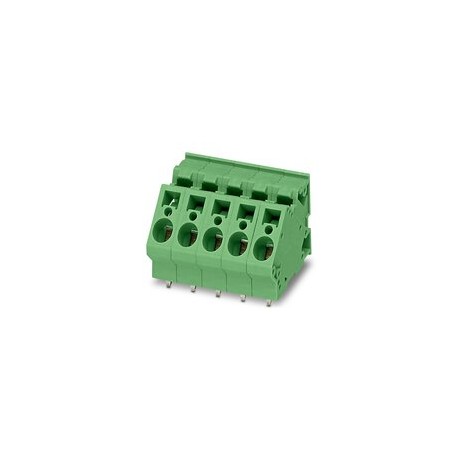

ZFKDSA 4-7,5- 4 BS:L1,L2,L3,PE 1986107 PHOENIX CONTACT Do PWB bloco terminal Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

ZFKDSA 4-7,5- 4 BS:L1,L2,L3,PE 1986107 PHOENIX CONTACT Do PWB bloco terminal

ZFKDSA 4-7,5- 4 BS:L1,L2,L3,PE

1986107

PHOENIX_CONTACT

50

Do PWB bloco terminal

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm2, number of rows: 1, number of positions per row: 8, product range: ZFKDS(A) 4, pitch: 7.5 mm, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Pin layout: Linear double pinning, Solder pin [P]: 4.6 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

Mais detalhes


Conectores PCB

* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT

* Este artigo pode estar obsoleto. Se você estiver interessado, insira seu e-mail e informaremos se há unidades disponíveis. Caso não existam mais, um dos nossos técnicos procurará uma alternativa fornecivel com características semelhantes.

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


Dados técnicos
Product properties
TypePC terminal block can be aligned
Product lineCOMBICON Terminals L
Product typePrinted circuit board terminal
Product familyZFKDS(A) 4
Number of positions8
Pitch7.5 mm
Number of rows1
Pin layoutLinear double pinning
Solder pins per potential2
Electrical properties
Nominal current IN32 A
Nominal voltage UN630 V
Degree of pollution3
Rated voltage (III/3)500 V
Rated surge voltage (III/3)6 kV
Rated voltage (III/2)630 V
Rated surge voltage (III/2)6 kV
Rated voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
Connection data
Connection technology
TypePC terminal block can be aligned
Nominal cross section4 mm²
Conductor connection
Connection methodSpring-cage connection
Conductor cross section rigid0.2 mm² ... 6 mm²
Conductor cross section flexible0.2 mm² ... 4 mm²
Conductor cross section AWG24 ... 10
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 4 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 4 mm²
Stripping length10 mm
Mounting
Mounting typeWave soldering
Pin layoutLinear double pinning
Connection methodSpring-cage connection
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (10 - 16 µm Sn)
Metal surface soldering area (top layer)Tin (10 - 16 µm Sn)
Material data - housing
Color ()()
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Dimensions
Dimensional drawinghxwaiuudgf.jpeg
Pitch7.5 mm
Length [l]29 mm
Installed height23 mm
Solder pin length [P]4.6 mm
Pin dimensions1 x 1.4 mm
PCB design
Hole diameter1.8 mm
Mechanical tests
Connection test
SpecificationIEC 60998-2-2:1991-10
ResultTest passed
Test for conductor damage and slackening
SpecificationIEC 60998-2-2:1991-10
ResultTest passed
Pull-out test
SpecificationIEC 60998-2-2:1991-10
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
6 mm² / solid / > 80 N
4 mm² / flexible / > 60 N
Electrical tests
Temperature-rise test
SpecificationIEC 60998-2-1:1990-04
Requirement temperature-rise testIncrease in temperature ≤ 45 K
Insulation resistance
SpecificationIEC 60998-2-2:1991-10
Insulation resistance, neighboring positions109Ω
Air clearances and creepage distances
Insulating material groupI
Rated insulation voltage (III/3)500 V
Rated surge voltage (III/3)6 kV
Rated insulation voltage (III/2)630 V
Rated surge voltage (III/2)6 kV
Rated insulation voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:1995-03
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Sweep speed5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Glow-wire test
SpecificationIEC 60998-2-2:1991-10
Temperature850 °C
Time of exposure5 s
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard
