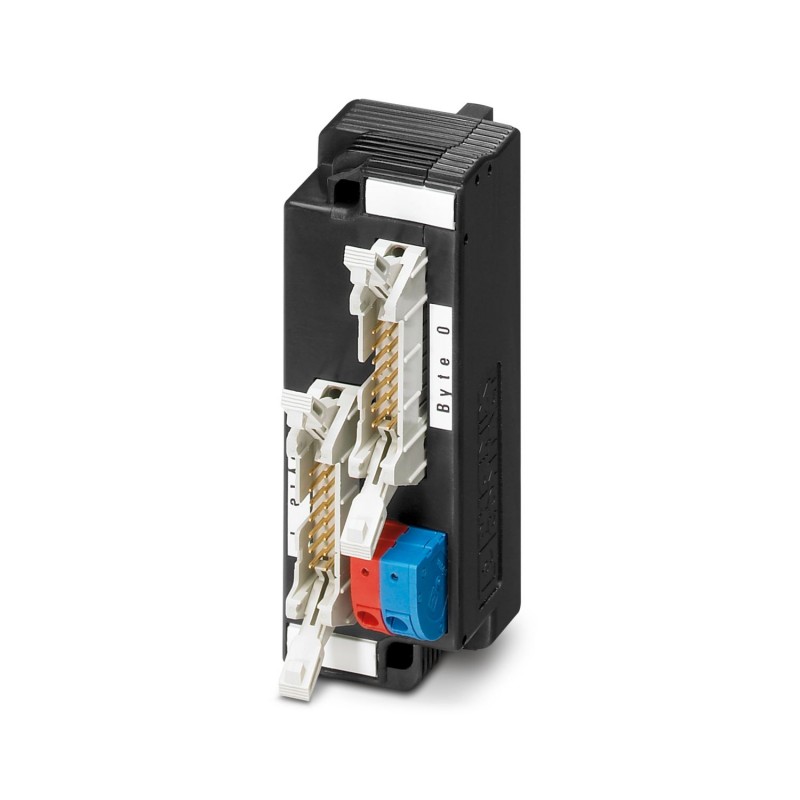

FLKM 14-PA-MODI/M340 2903208 PHOENIX CONTACT Adaptador frontal
FLKM 14-PA-MODI/M340
2903208
PHOENIX_CONTACT
Adaptador frontal
Adaptador Frontal VARIOFACE para Schneider Electric Modicon M340
VARIOFACE front adapter, for Schneider Electric Modicon M340
Controladores industriais (PLC) > Acessórios para controladores
Interface
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Best sellers
▲Mais informação
▲| Product type | Front adapter |
| Product family | VARIOFACE |
| Data management status | |
| Article revision | 06 |
| Insulation characteristics: Air clearances and creepage distances | |
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
| Operating voltage (AC) | ≤ 30 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Nominal operating mode | 100% operating factor |
| Current (per branch) | ≤ 1 A |
| Current (Voltage supply via IDC/FLK) | ≤ 3 A |
| Current (Voltage supply via Push-in connection) | ≤ 10 A |
| Air clearances and creepage distances | |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV (1.2/50 μs) |
| Supported controller SCHNEIDER ELECTRIC Modicon M340 | |
| Suitable I/O card | BMX DDI 1602 |
| BMX DDI 1603 | |
| BMX DAI 1602 | |
| BMX DAI 1603 | |
| BMX DDO 1602 | |
| BMX DDO 1612 | |
| Connection 1 (control level) | |
| Connection method | Plug-in connection |
| Number of connections | 2 |
| Number of positions | 10 |
| Pitch | 7.5 mm |
| Connection 2 (field level) | |
| Connection in acc. with standard | IEC 60603-13 |
| Connection method | IDC/FLK pin strip |
| Number of connections | 2 |
| Number of positions | 14 |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
| Connection 3 (supply) | |
| Connection method | Push-in spring connection |
| Stripping length | 10 mm |
| Number of connections | 1 |
| Number of positions | 4 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| 0.25 mm² ... 2.5 mm² (Ferrule without plastic sleeve) | |
| 0.25 mm² ... 1 mm² (Ferrule with plastic sleeve) | |
| Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve) |
| Conductor cross section AWG | 24 ... 12 |
| Pitch | 5 mm |
| Item dimensions | |
| Width | 31.9 mm |
| Height | 86.26 mm |
| Depth | 54.1 mm |
| Ambient conditions | |
| Degree of protection (Module) | IP20 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
| Air clearances and creepage distances | |
| Standards/regulations | EN IEC 60664-1 |
| Mounting type | Plug-in mounting |
| Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
| PHOENIX CONTACT-2903208-FLKM 14-PA-MODI/M340 | 117 Kbytes |
|
