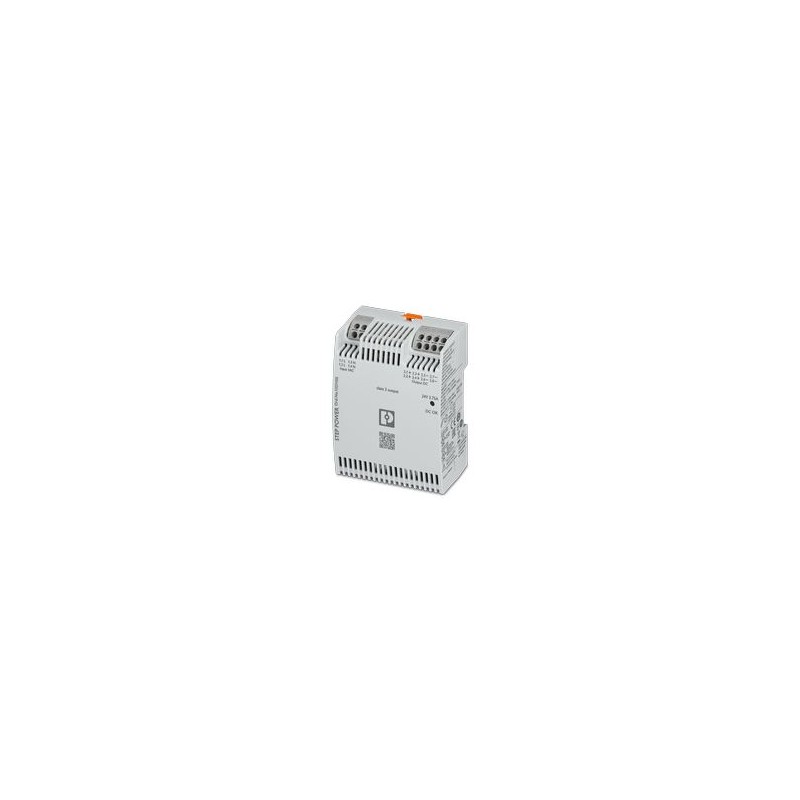

STEP3-PS/1AC/24DC/3.75/PT/CO 1321105 PHOENIX CONTACT Fontes de alimentação primárias comutadas, STEP POWER, .. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

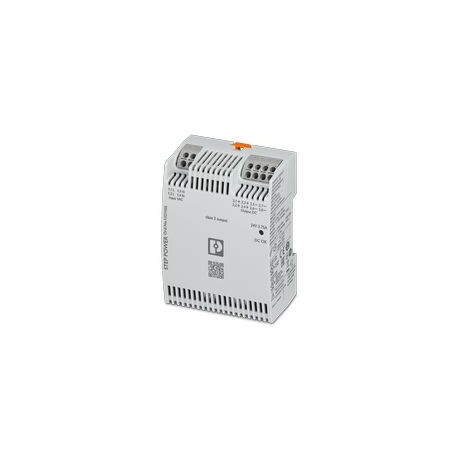

STEP3-PS/1AC/24DC/3.75/PT/CO 1321105 PHOENIX CONTACT Fontes de alimentação primárias comutadas, STEP POWER, ..

STEP3-PS/1AC/24DC/3.75/PT/CO

1321105

PHOENIX_CONTACT

Fontes de alimentação primárias comutadas, STEP POWER, conexão push-in, trilho e montagem direta, com pintura protetora, entrada: 1 fase, saída: 24 V DC / 3,75 A

Fontes de alimentação primárias de comutação, STEPPOWER, Conexão push-in, montagem em trilhos, com pintura protetora, entrada: 1fase, saída: 24 VDC / 3,75 A

Primary-switched power supply unit, STEP POWER, Push-in connection, DIN rail or direct mounting, with protective coating, input: 1-phase, output: 24 V DC / 3.75 A

Mais detalhes


Aparelhos elétricos de baixa tensão > Fonte de alimentação CC

Fontes de alimentação

Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT

Preço total: $146.06
Preço unitário: $146.06
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


Dados técnicos
Input data
AC operation
Network typeStar network
Input voltage range100 V AC ... 240 V AC -15 % ... +10 %
Derating< 100 V AC ... 85 V AC (1 %/V)
Typical national grid voltage120 V AC
230 V AC
Voltage type of supply voltageAC
Inrush currenttyp. 30 A (25 °C)
Inrush current integral (I2t)typ. 0.35 A2s
Frequency range (fN)50 Hz ... 60 Hz ±10 %
Mains buffering timetyp. 25 ms (120 V AC)
typ. 25 ms (230 V AC)
Current consumption1 A (100 V AC)
0.45 A (240 V AC)
Protective circuitTransient surge protection; Varistor
Switch-on timetyp. 2 s
Device mains fuse4 A internal (device protection), slow-blow
Recommended breaker for input protection6 A ... 16 A (Characteristics B, C, D, K)
Discharge current to PE< 0.25 mA
DC operation
Input voltage range110 V DC ... 250 V DC -20 % ... +10 %
Derating< 110 V DC ... 88 V DC (1 %/V)
Voltage type of supply voltageDC
Current consumption0.88 A (110 V DC)
0.38 A (250 V DC)
Output data
Efficiency> 92.5 % (120 V AC)
> 94 % (230 V AC)
Nominal output voltage24 V DC
Nominal output current (IN)3.75 A
Short-circuit-proofyes
No-load proofyes
Derating> 50 °C ... 70 °C (2 % / K)
Crest factortyp. 1.78
typ. 1.87
Output power (PN)90 W
Connection in parallelyes, for increasing power and redundancy with diode
Connection in seriesyes, for increased output voltage
Feedback voltage resistance≤ 35 V DC
Protection against overvoltage at the output (OVP)< 35 V DC
Residual rippletyp. 100 mVPP
Control deviation< 0.5 % (Static load change 10 % ... 90 %)
< 3 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.1 % (change in input voltage ±10 %)
Rise timetyp. 100 ms (UOut= 10 % ... 90 %)
Minimum no-load power dissipation< 0.21 W (120 V AC)
Maximum no-load power dissipation< 0.21 W (230 V AC)
Minimum nominal load power dissipation< 7 W (120 V AC)
Power loss nominal load max.< 5.7 W (230 V AC)
Integrated fuse protectionno
Connection data
Input
Position1.x
Connection technology
Position marking1.1, 1.2 (L), 1.3, 1.4 (N)
Conductor connection
Connection methodPush-in connection
rigid0.2 mm² ... 2.5 mm²
1 mm² (recommended)
flexible0.2 mm² ... 2.5 mm²
1 mm² (recommended)
flexible with ferrule without plastic sleeve0.5 mm² ... 1.5 mm²
1 mm² (recommended)
flexible with ferrule with plastic sleeve0.2 mm² ... 1 mm²
1 mm² (recommended)
rigid (AWG)24 ... 14 (Cu)
17 (recommended)
Stripping length10 mm (rigid/flexible)
10 mm (Ferrule)
Output
Position2.x
Connection technology
Position marking2.1, 2.2, 2.3, 2.4 (+), 2.5, 2.6, 2.7, 2.8 (-)
Conductor connection
Connection methodPush-in connection
rigid0.2 mm² ... 2.5 mm²
1 mm² (recommended)
flexible0.2 mm² ... 2.5 mm²
1 mm² (recommended)
flexible with ferrule without plastic sleeve0.5 mm² ... 1.5 mm²
1 mm² (recommended)
flexible with ferrule with plastic sleeve0.2 mm² ... 1 mm²
1 mm² (recommended)
rigid (AWG)24 ... 14 (Cu)
17 (recommended)
Stripping length10 mm (rigid/flexible)
10 mm (Ferrule)
Signaling
LED signaling
Types of signalingLED DC OK – signal state operation (UN= 24 V DC, IOut= IN)
FunctionVisual operating state display
Colorgreen
LED offSupply voltage input AC not present (Off)
LED on (green), DC OKUOut>0.9 x UN(UN= 24 V DC) (on)
Signal threshold> 0,9 x UN(UN= 24 V DC) (LED lights up green)
< 0,9 x UN(UN= 24 V DC) (LED off)
Electrical properties
Number of phases1.00
Insulation voltage input/output4 kV AC (type test)
3.75 kV AC (routine test)
Product properties
Product typePower supply
Product familySTEP POWER
MTBF (IEC 61709, SN 29500)> 2036000 h (25 °C)
> 1175000 h (40 °C)
> 777000 h (50 °C)
Environmental protection directiveRoHS Directive 2011/65/EU
WEEE
Reach
Insulation characteristics
Protection classII (in closed control cabinet)
Degree of pollution2
Dimensions
Item dimensions
Width72 mm
Height90 mm
Depth43 mm
37 mm (Device depth (DIN rail mounting))
Dimensional drawingiqoekjygsb.jpg
Horizontal pitch4 Div. (DIN 43880)
Installation dimensions
Installation distance right/left0 mm / 0 mm
Installation distance top/bottom30 mm / 30 mm
Mounting
Mounting typeDIN rail or direct mounting
Assembly instructionsalignable: 0 mm horizontally, 30 mm vertically
Mounting positionhorizontal DIN rail NS 35, EN 60715
With protective coatingPCB only
yes
Material specifications
Flammability rating according to UL 94V0 (Housing, terminal blocks, base latches)
Housing materialPlastic
Foot latch materialPolyamid
Housing materialPolycarbonate
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-10 °C ... 70 °C (Derating > 50°C: 2 %/K)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Ambient temperature (start-up type tested)-40 °C
Maximum altitude≤ 3000 m (> 2000 m, Derating: 10 %/1000 m)
Max. permissible relative humidity (operation)≤ 95 % (non-condensing)
Shock (operation)18 ms, 30g, per spatial direction (IEC 60068-2-27)
Vibration (operation)< 15 Hz, amplitude ±2.5 mm (IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min.
Standards and regulations
Overvoltage category
EN 61010-1II (≤ 3000 m)
Overvoltage category
EN 62477-1III (≤ 2000 m)
Electrical safety
Standard designationElectrical safety
Standards/specificationsIEC 61010-1 (SELV)
Protective extra-low voltage
Standard designationProtective extra-low voltage
Standards/specificationsIEC 61010-1 (SELV)
IEC 61010-2-201 (PELV)
Safe isolation
Standard designationSafe isolation
Standards/specificationsIEC 61558-2-16
Low-voltage power supplies, DC output
Standard designationLow-voltage power supplies, DC output
Standards/specificationsEN 61204-3
Safety requirements for electrical equipment for measurement, control, and laboratory use
Standard designationSafety requirements for electrical equipment for measurement, control, and laboratory use
Standards/specificationsIEC 61010-1
Household and similar electrical appliances - Safety
Standard designationSafety of electrical devices for household use and similar purposes
Standards/specificationsDIN EN 60335-1
Electric vehicle conductive charging system - Part 21-2: EMC requirements for off board electric vehicle charging systems
Standard designationElectric vehicle conductive charging system - Part 21-2: EMC requirements for off board electric vehicle charging systems
Standards/specificationsIEC 61851-21-2
NoteClass B
Approvals
UL
IdentificationUL 1310 Class 2 Power Units
UL
IdentificationUL/C-UL Listed UL 61010-1
UL
IdentificationUL/C-UL Listed UL 61010-2-201
UL
IdentificationUL/C-UL Listed ANSI/UL 121201 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
EMC data
Low Voltage DirectiveConformance with Low Voltage Directive 2014/35/EC
Interference emissionInterference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial)
Noise immunityEN 61000-6-2:2005
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Conducted noise emissionEN 55016
EN 61000-6-3 (Class B)
Noise emissionEN 55016
EN 61000-6-3 (Class B)
Harmonic currents
Standards/regulationsEN 61000-3-2
EN 61000-3-2 (Class A)
Flicker
Standards/regulationsEN 61000-3-3
Frequency range0 kHz ... 2 kHz
Electrostatic discharge
Standards/regulationsEN 61000-4-2
Electrostatic discharge
Contact discharge6 kV (Test Level 3)
Discharge in air8 kV (Test Level 3)
CommentsCriterion A
Electromagnetic HF field
Standards/regulationsEN 61000-4-3
Electromagnetic HF field
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m (Test Level 3)
Frequency range1 GHz ... 6 GHz
Test field strength10 V/m (Test Level 3)
CommentsCriterion A
Fast transients (burst)
Standards/regulationsEN 61000-4-4
Fast transients (burst)
Inputasymmetrical 4 kV (Test Level 4)
Outputasymmetrical 2 kV (Test Level 3)
CommentsCriterion A
Surge voltage load (surge)
Standards/regulationsEN 61000-4-5
Inputsymmetrical 2 kV (Test Level 4)
asymmetrical 4 kV (Test Level 4)
Outputsymmetrical 1 kV (Test Level 3)
asymmetrical 2 kV (Test Level 3)
CommentsCriterion B
Conducted interference
Standards/regulationsEN 61000-4-6
Conducted interference
Input/Outputasymmetrical
Frequency range0.15 MHz ... 80 MHz
CommentsCriterion A
Voltage10 V (Test Level 3)
Voltage dips
Standards/regulationsEN 61000-4-11
Voltage230 V AC
Frequency50 Hz
Voltage dip70 %
Number of periods25 periods
Additional textClass 3
CommentsCriterion A
Voltage dip40 %
Number of periods10 periods
Additional textClass 3
CommentsCriterion A
Voltage dip0 %
Number of periods1 period
Additional textClass 3
CommentsCriterion A
Criteria
Criterion ANormal operating behavior within the specified limits.
Criterion BTemporary impairment to operational behavior that is corrected by the device itself.
Criterion CTemporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements.

ETIM for 1321105 Componentes industriais para Baixa Tensão (EC002540)
Característica Valor
Tipo de tensão de alimentação (EF002991) AC
1a tensão de saída (EF006792) 24 V
Máx. corrente de saída 1 (EF008284) 3.75 A
Tensão secundária ajustável (EF007002) Não
Valor nominal tensão de saída 1 (EF009393) 24 V
Valor nominal corrente de saída 1 (EF009396) 3.75 A
Protegido contra curtos-circuitos (EF007332) Sim
Tensão de alimentação nominal em AC 50 Hz (EF007076) 85 V
Tensão nominal de alimentação em AC 60 Hz (EF007077) 85 V
Tensão de alimentação nominal em DC (EF007078) 88 V
Tensão de saída estabilizada (EF003092) Sim
Potência à saída (EF003034) 90 W
Estabilizado (EF005302) Sim
Acabamento da conexão elétrica (EF003961) Outro
Possível montagem em calha (EF003972) Sim
Possível montagem na parede (EF003973) Sim
Versão modular (EF001126) Sim
Altura embutida (EF000332) 90 mm
Possibilidade de montagem direta (EF005689) Sim
Largura (EF000008) 72 mm
Altura (EF000040) 90 mm
Profundidade (EF000049) 43 mm
Adequado para funções de segurança (EF001597) Sim
SIL de acordo com IEC 61508 (EF009889) Nenhum
Nível de desempenho de acordo com EN ISO 13849-1 (EF007399) Nenhum
Grau de proteção (IP) (EF005474) IP20
Grau de proteção (NEMA) (EF011959) Outro

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF CATALOG PHOENIX PROTECTION EN .pdf 27 Mbytes

Avaliações: (0) ▲

Não há comentários do produto ainda.

Adicionar avaliação
Adicionar avaliação
ocultar formulário
Avaliação:
Nome:
Email:
Título:
Opinión:
Você recomendaria esse produto para comprar?
  Captcha
  Adicionar avaliação

Últimas opiniões dos nossos clientes

Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
