ST-3ES1N8A6100S 1613546 PHOENIX CONTACT Conectores de encaixe para equipamentos parede frontal
ST-3ES1N8A6100S
1613546
PHOENIX_CONTACT
Conectores de encaixe para equipamentos parede frontal

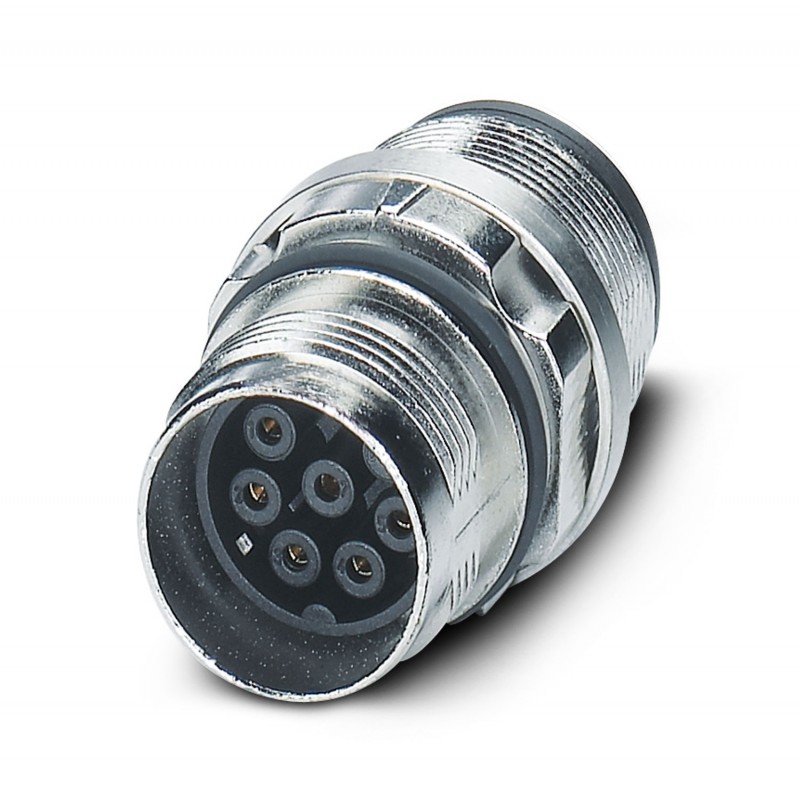

Conecte. ficha. para ser apar. parede frontal, reta, para bloqueio padrão e SPEEDCON, M17, número de pólos: 3+PE, tipo de contato: Fêmea, O-ring axial, Fixação central, blindado: sim, índice de proteção: IP67, número de pólos: 4, tipo de conexão: Conexão crimpada, série: ST Produto alternativo de acordo com RoHS II sem exceção 6c (Pb< 0,1%): 1242775
Device connector front mounting, straight, for standard and SPEEDCON interlock, M17, number of positions: 3+PE, contact connection type: Socket, Axial O-ring, Central fixing, shielded: yes, number of positions: 4, connection method: Crimp connection, series: ST, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1242775
Conectores > Condutor circular, de montagem (sem cabo)
Conexão de dispositivos de campo
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲| Order information: | Order crimp contacts Ø 2 mm separately |
| Safety note | |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| • The products are suitable for applications in plant, controller, and electrical device engineering. | |
| • When operating the connectors in outdoor applications, they must be separately protected against environmental influences. | |
| • Assembled products may not be manipulated or improperly opened. | |
| • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). | |
| • When using the product in direct connection with third-party manufacturers, the user is responsible. | |
| • For operating voltages > 50 V AC, conductive connector housings must be grounded | |
| • Ensure that the protective or functional ground has been properly connected. | |
| • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector | |
| • Only use tools recommended by Phoenix Contact | |
| • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. | |
| • Operate the connector only when it is fully plugged in and interlocked. | |
| • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. | |
| • Observe the minimum bending radius of the cable. Lay the cable without twisting it. | |
| • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). | |
| Mounting type | Front mounting |
| Mounting | Central fixing |
| Product type | Circular connectors (device side) |
| Series | ST |
| Application | Power |
| Number of positions | 4 |
| Connection profile | 3+PE |
| Shielded | yes |
| Coding | N |
| Thread type | M17 |
| Data management status | |
| Article revision | 07 |
| Seal material | FPM |
| Contact | |
| Contact diameter | 2 mm |
| Max. current | 25 A |
| Nominal voltage UN | 630 V |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
| Contact | |
| Contact diameter | 2 mm |
| Conductor connection | |
| Connection method | Crimp connection |
| Contact connection type | Socket |
| Type | straight |
| Direction of rotation | Standard |
| Connection 1 | |
| Head design | Socket |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Ambient temperature (storage/transport) | 15 °C ... 25 °C |
| Altitude | 3000 m |
| Permissible humidity (storage/transport) | 50 % ... 65 % |
| Característica | Valor |
|---|---|
| Tipo de contacto (EF001587) | Outro |
| Número de contatos de dados (EF012232) | 0 |
| Número de contatos de potência (EF012216) | 0 |
| Número de contatos de controlo (EF012217) | 4 |
| Temperatura ambiente (EF002386) | -40 °C |
| Tensão especificada de funcionamento (EF000228) | 630 V |
| Acabamento da conexão elétrica (EF003961) | Conexão por cravação |
| Tipo de fecho (EF000208) | Outro |
| Com condutor de proteção (EF007468) | Não |
| Blindado (EF000881) | Sim |
| Com indicação de estado (EF001602) | Não |
