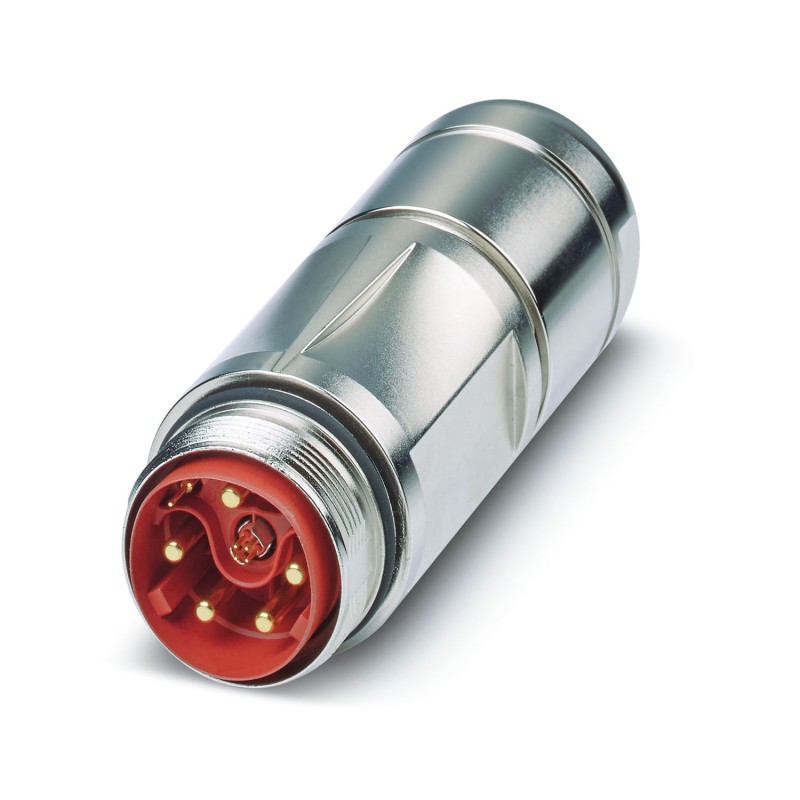

SB-8EP0A8A9L34S 1105749 PHOENIX CONTACT Acoplador de conector, longas retas, blindado: sim, padrão e SPEEDCO..
SB-8EP0A8A9L34S
1105749
PHOENIX_CONTACT
Acoplador de conector, longas retas, blindado: sim, padrão e SPEEDCON de intertravamento, M40, o número de posições: 0+4+4+PE, sem elemento de dados, tipo de contato: pin, ligação faston, diâmetro de cabo de gama: 20,5 mm ... 26,5 mm
Coupler connector, straight long, shielded: yes, for standard and SPEEDCON interlock, M40, number of positions: 0+4+4+PE, without data element, type of contact: pin, crimp connection, cable diameter range: 20.5 mm ... 26.5 mm
Conexão de dispositivos de campo
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Mais informação
▲Dados comerciais
| Chave de encomenda | 1105749 |
|---|---|
| Quantidade de embalagem | 1 |
| GTIN (EAN) | 4063151003616 |
| Número do imposto alfandegário | 85366990 |
Voltar para cima
Voltar para cima
Voltar para cima
Voltar para cima
Standards and Regulations
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| • The products are suitable for applications in plant, controller, and electrical device engineering. | |
| • When operating the connectors in outdoor applications, they must be separately protected against environmental influences. | |
| • Assembled products may not be manipulated or improperly opened. | |
| • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). | |
| • When using the product in direct connection with third-party manufacturers, the user is responsible. | |
| • For operating voltages > 50 V AC, conductive connector housings must be grounded | |
| • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector | |
| • Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product | |
| • Only use tools recommended by Phoenix Contact | |
| • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. | |
| • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products | |
| • Operate the connector only when it is fully plugged in and interlocked. | |
| • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. | |
| • Observe the minimum bending radius of the cable. Lay the cable without twisting it. | |
| • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
Data of the insulating body
| Coding | Signal, coding 1 |
|---|---|
| Contact connection method | Crimp connection |
| Type of contacts | Pin |
| Application | Power |
| Number of positions | 9 |
| Direction of rotation | Standard |
| Contact diameter of power contacts | 3.6 mm |
| Litz wire cross section of power contacts min. | 1 mm² |
| Litz wire cross section of power contacts max. | 16 mm² |
| Rated current for power contacts | 70 A |
| Additional text | for max. connection cross section |
| Rated voltage of power contact | 630 V AC |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated voltage (II/3) power contact | 850 V DC |
| Rated voltage (III/3) power contact | 630 V AC |
| Contact diameter of signal contacts | 1 mm |
| Litz wire cross section of signal contacts min. | 0.06 mm² |
| Litz wire cross section of signal contacts max. | 1.5 mm² |
| Rated current of each signal contact at 25°C | 8 A |
| Additional text | for max. connection cross section |
| Rated surge voltage | 6 kV |
| Rated voltage (III/3) signal contact | 500 V |
| Additional text | for max. connection cross section |
Housing data
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
|---|---|
| Type of locking | for standard and SPEEDCON interlock |
| Degree of protection (when plugged in) | IP68/IP69K |
| Thread type | M40 |
