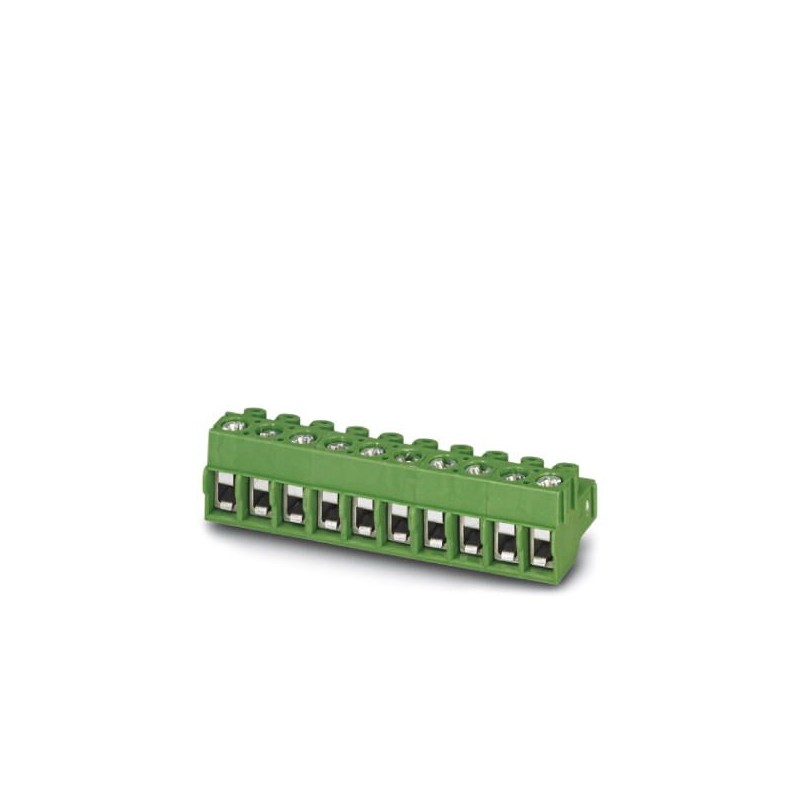

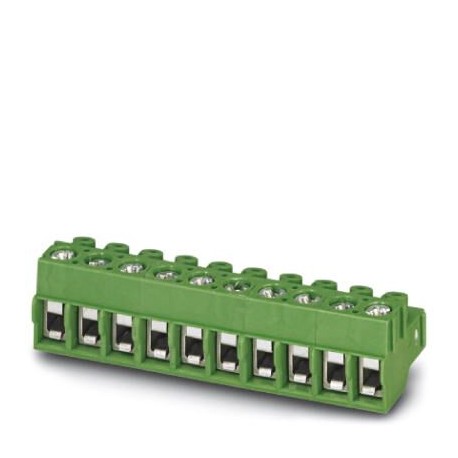

PT 1,5/12-PVH-5,0-M BD:1-12 1715893 PHOENIX CONTACT Conector do PWB
PT 1,5/12-PVH-5,0-M BD:1-12
1715893
PHOENIX_CONTACT
50
Conector do PWB
Conector para placa de circuito impresso, seção nominal: 1,5 mm², cor: verde, corrente nominal: 12 A, tensão de dimensionamento (III/2): 400 V, superfície de contato: Estanho, tipo de contato: Conexão fêmea, Número de potenciais: 12, Número de linhas: 1, Número de polos por linha: 12, Número de conexões: 12, Família de artigos: PT 1.5/.. -PVH, passo: 5 mm, tipo de conexão: Conexão a parafuso com suporte de proteção de fio, direção de conexão do condutor/placa de circuito impresso: 0 °, Stecksystem: COMBICON COMPACT PST 1.3, Fechadura: sem, tipo de embalagem: caixa
PCB connector, nominal current: 12 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of positions: 12, pitch: 5 mm, connection method: Screw connection with wire protector, color: green, contact surface: Tin
Conectores > Conector de cabo para conector de circuito impresso
Conectores PCB
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Best sellers
▲Mais informação
▲Dados comerciais
| Chave de encomenda | 1715893 |
|---|---|
| Quantidade de embalagem | 1 |
| GTIN (EAN) | 4055626471402 |
| Número do imposto alfandegário | 85366990 |
Item properties
| Brief article description | PCB connector |
|---|---|
| Plug-in system | COMBICON COMPACT PST 1,3 |
| Type of contact | Female connector |
| Range of articles | PT 1,5/..-PVH |
| Pitch | 5 mm |
| Number of positions | 12 |
| Connection method | Screw connection with wire protector |
| Number of levels | 1 |
| Number of connections | 12 |
| Number of potentials | 12 |
Electrical parameters
| Nominal current | 12 A |
|---|---|
| Nom. voltage | 400 V |
| Rated voltage | 250 V |
| Rated voltage (III/2) | 400 V |
| Rated voltage (II/2) | 630 V |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
Connection capacity
| Connection method | Screw connection with wire protector |
|---|---|
| pluggable | Yes |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG / kcmil | 26 ... 14 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 1.5 mm² |
| 2 conductors with same cross section, solid | 0.2 mm² ... 0.75 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 0.75 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 0.34 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 0.75 mm² |
| Stripping length | 5 mm |
| Torque | 0.35 Nm ... 0.4 Nm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Housing color | green (6021) |
|---|---|
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Dimensional drawing |  |
|---|---|
| Length [ l ] | 15 mm |
| Width [ w ] | 60 mm |
| Height [ h ] | 11.4 mm |
| Pitch | 5 mm |
| Dimension a | 55 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C (dependent on the derating curve) |
Termination and connection method
| Test result | Test passed |
|---|---|
| Test – repeated connection and release | IEC 60999-1:1999-11 |
| Test passed | |
| Test for conductor damage and slackening | IEC 60999-1:1999-11 |
| Test passed |
Pull-out test
| Pull-out test | IEC 60999-1:1999-11 |
|---|---|
| Test passed | |
| Conductor cross section / conductor type / tensile force | 0.2 mm² / solid / > 10 N |
| 0.2 mm² / flexible / > 10 N | |
| 2.5 mm² / solid / > 50 N | |
| 2.5 mm² / flexible / > 50 N |
Mechanical tests according to standard
| Visual examination | Test passed IEC 60512-1-1:2002-02 |
|---|---|
| Dimensional test | Test passed IEC 60512-1-2:2002-02 |
| Resistance of marking | Test passed IEC 60068-2-70:1995-12 |
| Result | Test passed |
| Specification | IEC 60512-7:1993-08 |
| Insertion strength per pos. approx. | 2.5 N |
| Withdraw strength per pos. approx. | 2 N |
| Polarization and coding | Test passed IEC 60512-7:1993-08 (Polarization) |
| Result | Test passed |
| Specification | IEC 60512-8:1993-01 |
| Test force per pos. | 20 N |
Air clearances and creepage distances
| Clearances and creepage distances | IEC 60664-1:2007-04 |
|---|---|
| Specification | IEC 60664-1:2007-04 |
| Minimum clearance - inhomogeneous field (III/3) | 3 mm |
| Minimum clearance - inhomogeneous field (III/2) | 3 mm |
| Minimum clearance - inhomogeneous field (II/2) | 3 mm |
| Minimum creepage distance value (III/3) | 3.2 mm |
| Minimum creepage distance value (III/2) | 3 mm |
| Minimum creepage distance value (II/2) | 3.2 mm |
| Note on connection cross section | With connected conductor 2.5 mm² (solid). |
Mechanical tests (A)
| Insertion strength per pos. approx. | 2.5 N |
|---|---|
| Withdraw strength per pos. approx. | 2 N |
| Polarization when inserted requirement >20 N | Test passed |
| Contact holder in insert requirements >20 N | Test passed |
Durability tests (B)
| Specification | IEC 60512-5:1992-08 |
|---|---|
| Contact resistance R1 | 1.3 mΩ |
| Insertion/withdrawal cycles | 10 |
| Contact resistance R2 | 1.4 mΩ |
| Impulse withstand voltage at sea level | 4.9 kV |
| Power-frequency withstand voltage | 2.5 kV |
| Insulation resistance, neighboring positions | > 10 TΩ |
Climatic tests (D)
| Specification | ISO 6988:1985-02 |
|---|---|
| Cold stress | -40 °C/2 h |
| Thermal stress | 100 °C/168 h |
| Corrosive stress | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Impulse withstand voltage at sea level | 4.8 kV |
| Power-frequency withstand voltage | 2.5 kV |
Environmental and durability tests (E)
| Specification | |
|---|---|
| Result, degree of protection, IP code | Finger safety with IP20 test finger |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 years |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classificações
eCl@ss
| eCl@ss 4.0 | 27260700 |
|---|---|
| eCl@ss 4.1 | 27260700 |
| eCl@ss 5.0 | 27260700 |
| eCl@ss 5.1 | 27260700 |
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440309 |
| eCl@ss 8.0 | 27440309 |
| eCl@ss 9.0 | 27440309 |
Datasheet - PDF
