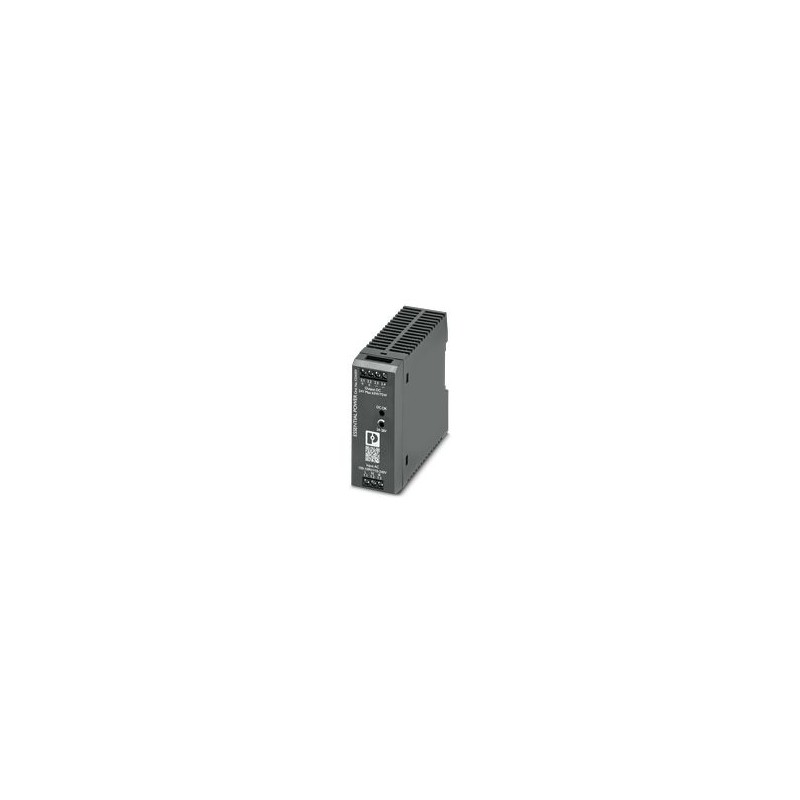

PS-EE-2G/1AC/24DC/75W/SC 1234301 PHOENIX CONTACT Fontes de alimentação de comutação primária, ESSENTIAL POWE..
PS-EE-2G/1AC/24DC/75W/SC
1234301
PHOENIX_CONTACT
Fontes de alimentação de comutação primária, ESSENTIAL POWER, Conexão a parafuso, Montagem em trilho, entrada: 1 fase, saída: 24 V DC / 3.125 A, ajustável a partir de 24 V DC ... 28 V CC
Fontes de alimentação primárias de comutação, ESSENTIAL POWER, Conexão de parafuso, Montagem em trilhos, Entrada: 1 fase, Saída: 24 V DC / 3.125 A
Primary-switched power supply unit, ESSENTIAL POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 3.125 A, adjustable from 24 V DC ... 28 V DC
Aparelhos elétricos de baixa tensão > Fonte de alimentação CC
Home > PHOENIX_CONTACT
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Best sellers
▲Mais informação
▲Dados técnicos
Input data
| AC operation | |
| Supply system configuration | TN, TT, IT (PE) |
| Nominal input voltage range | 100 V AC ... 240 V AC |
| Input voltage range | 110 V AC ... 240 V AC ±10 % (PN= 75 W) |
| 100 V AC ... 109 V AC -15 % ... +10 % (PN= 63 W) | |
| Typical national grid voltage | 120 V AC |
| 230 V AC | |
| Voltage type of supply voltage | AC |
| Inrush current | typ. 27 A (at 25 °C) |
| Inrush current integral (I2t) | typ. 0.6 A2s |
| Frequency range (fN) | 50 Hz ... 60 Hz ±10 % |
| Mains buffering time | typ. 14 ms (120 V AC) |
| typ. 70 ms (230 V AC) | |
| Current consumption | max. 1.5 A (75 W) |
| max. 1.5 A (63 W) | |
| typ. 1.3 A (110 V AC (75 W)) | |
| typ. 0.75 A (240 V AC (75 W)) | |
| typ. 1.2 A (100 V AC (63 W)) | |
| typ. 1.1 A (109 V AC (63 W)) | |
| Protective circuit | Transient protection; Varistor |
| Switch-on time | typ. 1 s |
| Device mains fuse | 3.15 A internal (device protection), fast-blow |
| Recommended breaker for input protection | 6 A ... 16 A (Characteristic B, C, D, K or comparable) |
| Discharge current to PE | < 3.5 mA |
Output data
| Efficiency | typ. 88 % (120 V AC) |
| typ. 89 % (230 V AC) | |
| Nominal output voltage | 24 V DC |
| Setting range of the output voltage (USet) | 24 V DC ... 28 V DC (> 24 V DC, constant capacity restricted) |
| Nominal output current (IN) | max. 3.125 A (PN= 75 W) |
| max. 2.62 A (PN= 63 W) | |
| Short-circuit-proof | yes |
| No-load proof | yes |
| Crest factor | typ. 3 (120 V AC) |
| typ. 4 (230 V AC) | |
| Output power (PN) | 75 W (240 V AC) |
| 63 W (100 V AC) | |
| Connection in parallel | yes, for increasing power and redundancy with diode |
| Connection in series | yes, for increased output voltage |
| Feedback voltage resistance | ≤ 35 V DC |
| Protection against overvoltage at the output (OVP) | ≤ 35 V DC |
| Residual ripple | typ. 50 mVPP(with nominal values) |
| Control deviation | < 2 % (change in load, static 10 % ... 90 %) |
| < 4 % (change in load, dynamic 10 % ... 90 %) | |
| < 0.1 % (change in input voltage ±10 %) | |
| Rise time | < 100 ms (UOut= 10 % ... 90 %) |
| Minimum no-load power dissipation | < 1 W (120 V AC) |
| Maximum no-load power dissipation | < 1 W (230 V AC) |
| Minimum nominal load power dissipation | < 11 W (120 V AC) |
| Power loss nominal load max. | < 9 W (230 V AC) |
| Integrated fuse protection | no |
Connection data
| Input | |
| Position | 1.x |
| Identification | 1.1 (), 1.2 (L), 1.3 (N) |
| Conductor connection | |
| Connection method | Screw connection |
| rigid | 0.5 mm² ... 2.5 mm² |
| flexible | 0.5 mm² ... 2.5 mm² |
| flexible with ferrule without plastic sleeve | 0.5 mm² ... 2.5 mm² |
| flexible with ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
| rigid (AWG) | 20 ... 14 (Cu) |
| Stripping length | 6.5 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| 5 lbf-in. ... 7 lbf-in. | |
| Drive form screw head | Slotted L |
| Output | |
| Position | 2.x |
| Identification | 2.1, 2.2 (+), 2.3, 2.4 (-) |
| Conductor connection | |
| Connection method | Screw connection |
| rigid | 0.5 mm² ... 2.5 mm² |
| flexible | 0.5 mm² ... 2.5 mm² |
| flexible with ferrule without plastic sleeve | 0.5 mm² ... 2.5 mm² |
| flexible with ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
| rigid (AWG) | 20 ... 14 (Cu) |
| Stripping length | 6.5 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| 5 lbf-in. ... 7 lbf-in. | |
| Drive form screw head | Slotted L |
Signaling
| LED signaling | |
| Types of signaling | LED DC OK – signal state operation (UN= 24 V DC, IOut= IN) |
| Function | Visual operating state display |
| Color | green |
| LED off | Supply voltage input AC not present (Off) |
| LED on (green), DC OK | UOUT> 17.5 V (On (green), DC OK) |
Electrical properties
| Number of phases | 1.00 |
| Insulation voltage input/output | 4 kV AC (type test) |
| 3 kV AC (routine test) | |
| Insulation voltage input / PE | 3.5 kV AC (type test) |
| 2.4 kV AC (routine test) |
Product properties
| Product type | Power supply |
| Product family | ESSENTIAL POWER |
| MTBF (Telcordia SR-332) | > 2800000 h (25 °C) |
| > 2300000 h (40 °C) | |
| > 2100000 h (45°C) | |
| Insulation characteristics | |
| Protection class | II |
| Degree of pollution | 2 |
| Life expectancy (electrolytic capacitors) | |
| Current | 3.15 A |
| Temperature | 40 °C |
| Time | 28000 h |
| Additional text | 120 V AC |
| Life expectancy (electrolytic capacitors) | |
| Current | 3.15 A |
| Temperature | 30 °C |
| Time | 57000 h |
| Additional text | 120 V AC |
| Life expectancy (electrolytic capacitors) | |
| Current | 3.15 A |
| Temperature | 40 °C |
| Time | 50000 h |
| Additional text | 230 V AC |
| Life expectancy (electrolytic capacitors) | |
| Current | 3.15 A |
| Temperature | 30 °C |
| Time | 100000 h |
| Additional text | 230 V AC |
Dimensions
| Item dimensions | |
| Width | 33 mm |
| Height | 90 mm |
| Depth | 100 mm |
| Installation dimensions | |
| Installation distance right/left | 10 mm / 10 mm |
| Installation distance top/bottom | 30 mm / 30 mm |
Mounting
| Mounting type | DIN rail mounting |
| Assembly instructions | alignable: 0 mm horizontally, 30 mm vertically |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| With protective coating | No |
Material specifications
| Housing material | Plastic |
| Hood version | Stainless steel |
| Side element version | Aluminum |
| Foot latch material | Polyamid |
| Housing material | Polycarbonate |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 70 °C (Derating >45°C: 2.5%/K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Maximum altitude | ≤ 5000 m (> 2000 m, Derating: 10 %/1000 m) |
| Climatic class | 3K22 (in accordance with EN 60721-3-3) |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Shock (operation) | 15 ms, 15 g, per spatial direction (IEC 60068-2-27) |
| Vibration (operation) | 10 Hz ... 50 Hz, amplitude ±0.2 mm |
| 50 Hz to 150 Hz, 2.3 g, 90 min. | |
Standards and regulations
| Overvoltage category | |
| EN 61010-1 | II (≤ 3000 m) |
| Electrical safety | |
| Standard designation | Electrical safety |
| Standards/specifications | IEC 61010-2-201 (SELV) |
| Safety for measurement, control, and laboratory equipment | |
| Standard designation | Safety for equipment for measurement, control, and laboratory use |
| Standards/specifications | IEC 61010-1 |
| Protective extra-low voltage | |
| Standard designation | Protective extra-low voltage |
| Standards/specifications | IEC 61010-1 (SELV) |
| IEC 61010-2-201 (PELV) | |
| Limitation of harmonic line currents | |
| Standard designation | Limitation of harmonic line currents |
| Standards/specifications | EN 61000-3-2 |
| Mains voltage dips | |
| Standard designation | Requirement of the semiconductor industry with regard to mains voltage dips |
| Standards/specifications | SEMI F47 - 0706 (185 V AC) |
Approvals
| UL | |
| Identification | UL/C-UL Listed UL 61010-1 |
| UL | |
| Identification | UL/C-UL Listed UL 61010-2-201 |
| CB scheme | |
| Identification | CB scheme (IEC 61010-1, IEC 61010-2-201) |
EMC data
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) |
| EMC requirements for noise immunity | EN 61000-6-2 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Conducted noise emission | EN 55016 |
| EN 61000-6-3 (Class B) | |
| Noise emission | EN 55016 |
| EN 61000-6-3 (Class B) | |
| Harmonic currents | |
| Standards/regulations | EN 61000-3-2 |
| EN 61000-3-2 (Class A) | |
| Frequency range | 0 kHz ... 2 kHz |
| Electrostatic discharge | |
| Standards/regulations | EN 61000-4-2 |
| Electrostatic discharge | |
| Contact discharge | 6 kV (Test Level 3) |
| Discharge in air | 8 kV (Test Level 3) |
| Comments | Criterion A |
| Electromagnetic HF field | |
| Standards/regulations | EN 61000-4-3 |
| Electromagnetic HF field | |
| Test field strength | 10 V/m (Test Level 3) |
| Frequency range | 1 GHz ... 6 GHz |
| Test field strength | 10 V/m (Test Level 3) |
| Frequency range | 2 GHz ... 3 GHz |
| Test field strength | 1 V/m (Test Level 3) |
| Comments | Criterion A |
| Fast transients (burst) | |
| Standards/regulations | EN 61000-4-4 |
| Fast transients (burst) | |
| Input | 4 kV (Test Level 4 - asymmetrical) |
| Output | 2 kV (Test Level 3 - asymmetrical) |
| Comments | Criterion A |
| Surge voltage load (surge) | |
| Standards/regulations | EN 61000-4-5 |
| Input | 2 kV (Test Level 4 - symmetrical) |
| 4 kV (Test Level 4 - asymmetrical) | |
| Output | 0.5 kV (Test Level 2 - symmetrical) |
| 1 kV (Test Level 3 - asymmetrical) | |
| Comments | Criterion A |
| Conducted interference | |
| Standards/regulations | EN 61000-4-6 |
| Conducted interference | |
| Input/Output | asymmetrical |
| Frequency range | 0.15 MHz ... 80 MHz |
| Comments | Criterion A |
| Voltage | 10 V (Test Level 3) |
| Voltage dips | |
| Standards/regulations | EN 61000-4-11 |
| Voltage | 230 V AC |
| Frequency | 50 Hz |
| Voltage dip | 70 % |
| Number of periods | 25 periods |
| Comments | Criterion A |
| Voltage dip | 40 % |
| Number of periods | 10 periods |
| Comments | Criterion A |
| Voltage dip | 0 % |
| Number of periods | 1 period |
| Comments | Criterion A |
| Criteria | |
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
| Característica | Valor |
|---|---|
| Tipo de tensão de alimentação (EF002991) | AC |
| 1a tensão de saída (EF006792) | 24 V |
| Máx. corrente de saída 1 (EF008284) | 3.125 A |
| Tensão secundária ajustável (EF007002) | Sim |
| Valor nominal tensão de saída 1 (EF009393) | 24 V |
| Valor nominal corrente de saída 1 (EF009396) | 3.125 A |
| Protegido contra curtos-circuitos (EF007332) | Sim |
| Tensão de alimentação nominal em AC 50 Hz (EF007076) | 85 V |
| Tensão nominal de alimentação em AC 60 Hz (EF007077) | 85 V |
| Tensão de saída estabilizada (EF003092) | Sim |
| Potência à saída (EF003034) | 75 W |
| Estabilizado (EF005302) | Sim |
| Acabamento da conexão elétrica (EF003961) | Ligação com parafuso |
| Possível montagem em calha (EF003972) | Sim |
| Possível montagem na parede (EF003973) | Não |
| Versão modular (EF001126) | Não |
| Altura embutida (EF000332) | 90 mm |
| Possibilidade de montagem direta (EF005689) | Não |
| Largura (EF000008) | 33 mm |
| Altura (EF000040) | 90 mm |
| Profundidade (EF000049) | 100 mm |
| Adequado para funções de segurança (EF001597) | Sim |
| SIL de acordo com IEC 61508 (EF009889) | Nenhum |
| Nível de desempenho de acordo com EN ISO 13849-1 (EF007399) | Nenhum |
| Grau de proteção (IP) (EF005474) | IP20 |
| Grau de proteção (NEMA) (EF011959) | Outro |
Avaliações: (0) ▲
Não há comentários do produto ainda.
Adicionar avaliação
ocultar formulário
| Avaliação: |
|
| Nome: | |
| Email: | |
| Título: | |
| Opinión: | |
| Você recomendaria esse produto para comprar? | |
|
|
|
| Adicionar avaliação | |
Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
