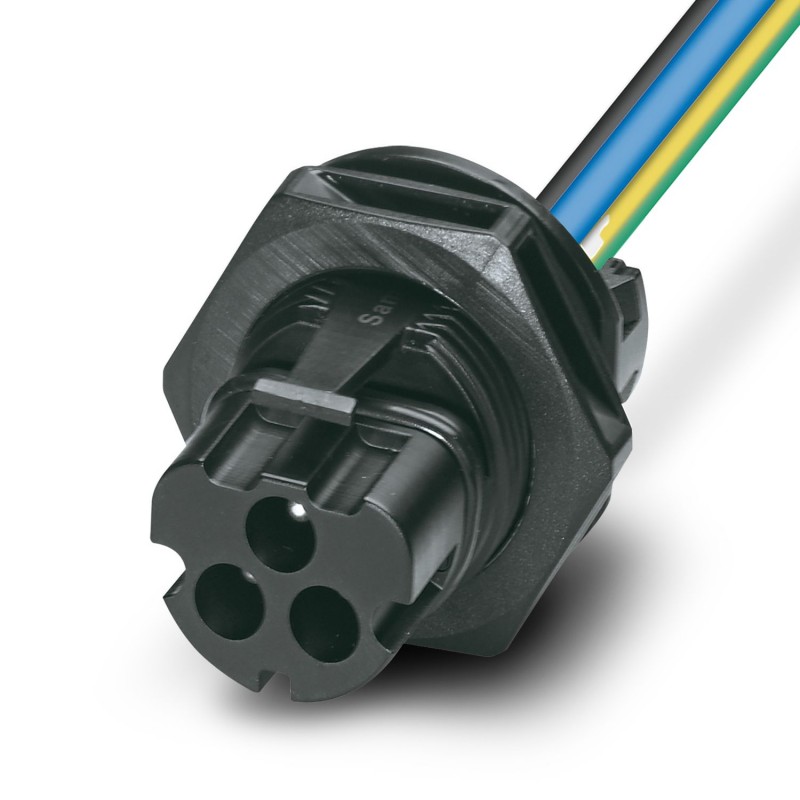

PRC 3-FT25-MC6-150 1409221 PHOENIX CONTACT Conectores de encaixe para equipamentos parede posterior
PRC 3-FT25-MC6-150
1409221
PHOENIX_CONTACT
10
Conectores de encaixe para equipamentos parede posterior
Conecte. ficha. para ser apar. Poster de parede., Família de artigos: PRC 35, material da caixa: EPI, cor: preto, número de pólos: 3, secção máxima do condutor: 6 mm², tensão nominal: 690 V AC, corrente atribuída: 35 A, Tipo de ligação: Ligação de crimpagem, Tipo de ligação de contacto: Macho, comprimento do cabo: 150. Este item também está disponível com outros comprimentos de cabo. Para suas necessidades, entre em contato com sua filial local da PHOENIX CONTACT.
Device connector rear mounting, Range of articles: PRC 35, housing material: PPE, color: black, number of positions: 3, max. conductor cross section: 6 mm2, rated voltage: 690 V AC, rated current: 35 A, Connection method: Crimp connection, Contact connection type: Pin, cable length: 150, This item is also available with other cable lengths. For your specific requirements, please contact your local PHOENIX CONTACT subsidiary.
Sistemas de encaixe de instalação de edifícios > Conexão de dispositivo para instalação de edifício de encaixe
Conexão de dispositivos de campo
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲| Order information: | This item is also available with other cable lengths. For your specific requirements, please contact your local PHOENIX CONTACT subsidiary. |
| Note on application | For assembly notes, please refer to the packing slip |
| Safety note | |
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. | |
| • Assembled products may not be manipulated or improperly opened. | |
| • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). | |
| • When using the product in direct connection with third-party manufacturers, the user is responsible. | |
| • For operating voltages > 50 V AC, conductive connector housings must be grounded | |
| • Ensure that the protective or functional ground has been properly connected. | |
| • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector | |
| • Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product | |
| • Only use tools recommended by Phoenix Contact | |
| • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. | |
| • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products | |
| • Operate the connector only when it is fully plugged in. | |
| • Operate the connector only when it is fully plugged in and interlocked. | |
| • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. | |
| • Observe the minimum bending radius of the cable. Lay the cable without twisting it. | |
| • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). | |
| Product type | Panel feed-through |
| Product family | PRC 35 |
| Number of positions | 3 |
| Connection profile | 2+PE |
| Coding | AD |
| Data management status | |
| Article revision | 14 |
| Insulation characteristics | |
| Protection class | II (double or reinforced insulation) |
| Degree of pollution | 2 |
| Conductor connection | |
| Tightening torque | 2.5 Nm ±0.1 Nm (Tightening torque nut) |
| Dimensional drawing |  |
| Width | 34.5 mm |
| Height | 38.4 mm |
| Length | 179.5 mm |
| Hole diameter | 25.5 mm |
| Wrench size, union nut | 32 mm |
| Rated voltage (III/2) | 690 V |
| Nominal voltage ATD | 690 V AC (III/2.00) in accordance with IEC 61984 |
| 500 V AC (III/2.00) in accordance with IEC 61535/2 PfG 1915 | |
| 600 V AC / DC (III/2.00) in accordance with UL 2238 / UL 2237 | |
| 500 V DC (III/2.00) in accordance with IEC 61535 | |
| 600 V AC / DC in accordance with UL 2237 | |
| Rated surge voltage (III/2) | 8 kV |
| Rated current | 35 A (With 6 mm² conductor cross section in accordance with IEC 61984) |
| 32 A (With 6 mm² conductor cross section in accordance with IEC 61535) | |
| 21.4 A (With 6 mm² conductor cross section and 85 °C in accordance with 2 PfG 1915) | |
| 32 A (with AWG 10, in accordance with UL 2237) |
| Mechanical data | |
| Insertion/withdrawal cycles | 100 |
| Insertion force | 30 N ±10 N |
| Color | black |
| Color of the housing part | black |
| Material | PPE (Nut) |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I / CTI 600 |
| Seal material | Silicon |
| EPDM | |
| Silicon | |
| Housing material | PPE |
| Contact material | Cu alloy |
| Contact surface material | Ag |
| Contact carrier material | PPE |
| O-ring material | Silicon |
| Material for screw connection | PPE |
| Pull-out-force | 150 N ±50 N |
| Cable length | 150 mm |
| Single wire, material | PVC |
| Wire diameter incl. insulation | 4.8 mm ±0.15 mm |
| Single wire, cross section | 6 mm² |
| Single wire, color | brown, blue, green/yellow |
| Cable cross section | 6 mm² |
| Halogen-free | no |
| Mounting type | Rear mounting |
| Thread type | M25 x 1,5 () |
| Ambient conditions | |
| Degree of protection (when plugged in) | IP66 / IP68 (2m / 24h) / IP69K |
| Degree of protection (not plugged in) | IP65 (Lengthwise waterproofing) |
| Degree of protection | IP66 / IP68 (2m / 24h) / IP69K |
| Ambient temperature (operation) | -40 °C ... 105 °C (Depending on the current carrying capacity/derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | 5 °C ... 85 °C |
| Standards/specifications | IEC 61984:2008 |
| EN 61984:2008 | |
| DIN EN IEC 61535:2020 | |
| IEC 61535:2019 | |
| 2 PfG 1915/03.2015 | |
| UL 2237 Ed.1:2021-01-08 | |
| CSA C22.2 No. 182.3-16 Ed.2:2019-01 |
| Característica | Valor |
|---|---|
| Corrente nominal especificada (EF000227) | 35 A |
| Número de polos (EF001391) | 3 |
| Grau de proteção (IP) (EF005474) | IP65 |
| Versão embutida (EF006776) | Conexão de peça/plug-in embutida |
| Número de conexões por polo (EF006769) | 1 |
| Codificação mecânica (EF002910) | Sim |
| Cor da caixa (EF000136) | Preto |
| Material da caixa protetora (EF001596) | Outro |
| Livre de halogéneo (EF000025) | Não |
| Tratamento da superfície de contacto (EF002558) | Banhado a prata |
| Comprimento (EF001438) | 179.5 mm |
| Altura (EF000040) | 38.4 mm |
| Largura (EF000008) | 34.5 mm |
