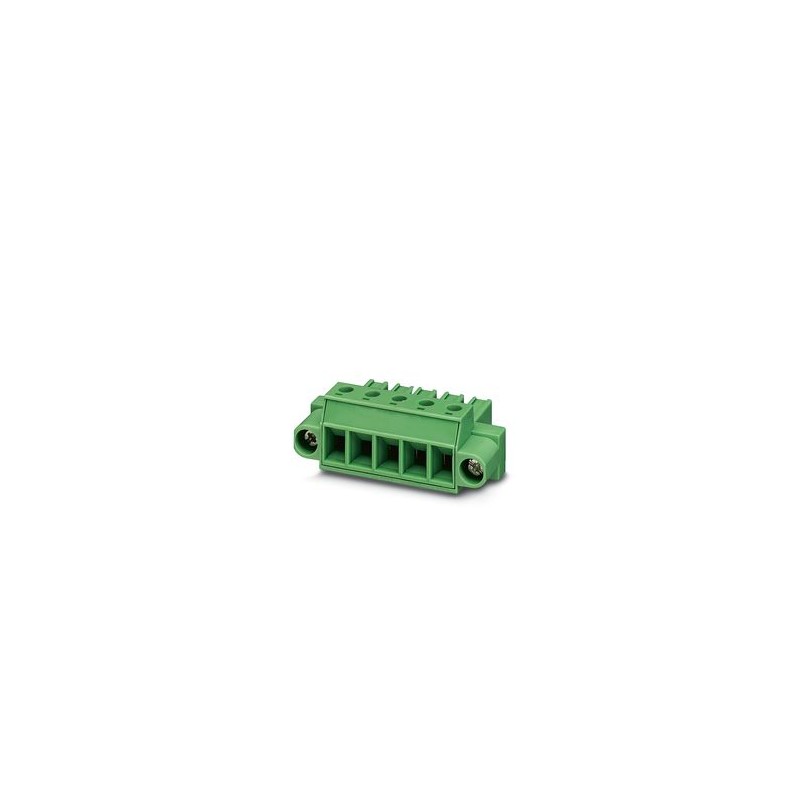

PC 4/ 9-STF-7,62 PA1,3,5,7,9 1009967 PHOENIX CONTACT Conector de placa de circuito impresso PC 4/ 9-STF-7,62.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

PC 4/ 9-STF-7,62 PA1,3,5,7,9 1009967 PHOENIX CONTACT Conector de placa de circuito impresso PC 4/ 9-STF-7,62..

PC 4/ 9-STF-7,62 PA1,3,5,7,9

1009967

PHOENIX_CONTACT

50

Conector de placa de circuito impresso - PC 4/ 9-STF-7,62 PA1,3,5,7,9 - 1009967

Conector para placa de circuito impresso, seção nominal: 4 mm², cor: verde, atual avaliado: 20 A, tensão de dimensionamento (III/2): 630 V, contatos de superfície: Estanho, tipo de contato: Conectando feminino, Número de potenciais: 9, Número de linhas: 1, Número de postes por linha: 9, número de conexões: 9, item familiar: PC 4/.. -STF, pitch: 7,62 mm, tipo de conexão: Conexão do parafuso com cápsula de tração, condutor de direção de conexão/placa de circuito impresso: 0 °, Stecksystem: POWER COMBICON 4, Bloqueio: Travamento por parafuso, tipo de embalagem: embalagem encaixotado

PCB connector, nominal cross section: 4 mm2, color: green, nominal current: 20 A, rated voltage (III/2): 630 V, contact surface: Tin, contact connection type: Socket, number of potentials: 5, number of rows: 1, number of positions: 9, number of connections: 5, product range: PC 4/..-STF, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON PC 4, locking: Screw locking mechanism, mounting: Screw flange, type of packaging: packed in cardboard

Mais detalhes


Conectores > Conector de cabo para conector de circuito impresso

Conectores PCB

* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT

Preço total: $542.13
Preço unitário: $10.84

*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Mais informação

▲


Dados técnicos
Product properties
Product lineCOMBICON Connectors L
Product typePCB connector
Product familyPC 4/..-STF
Number of positions9
Pitch7.62 mm
Number of connections5
Number of rows1
Number of potentials5
Electrical properties
Nominal current IN20 A
Nominal voltage UN630 V
Degree of pollution3
Contact resistance0.5 mΩ
Rated voltage (III/3)400 V
Rated surge voltage (III/3)6 kV
Rated voltage (III/2)630 V
Rated surge voltage (III/2)6 kV
Rated voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
Connection data
Connection technology
TypeStandard
Connector systemCOMBICON PC 4
Nominal cross section4 mm²
Contact connection typeSocket
Interlock
Locking typeScrew locking mechanism
Mounting flangeScrew flange
Tightening torque0.3 Nm ... 0.7 Nm
Conductor connection
Connection methodScrew connection with tension sleeve
Conductor/PCB connection direction0 °
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 4 mm²
Conductor cross section AWG24 ... 10
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 4 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 4 mm²
2 conductors with same cross section, solid0.2 mm² ... 2.5 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 2.5 mm²
Cylindrical gauge a x b / diameter3.6 mm x 3.1 mm / 3.0 mm
Stripping length7 mm
Tightening torque0.5 Nm ... 0.6 Nm
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Dimensions
Dimensional drawingbkgvpdefhs.jpg
Pitch7.62 mm
Width [w]83.8 mm
Height [h]18.1 mm
Length [l]30.7 mm
Mounting
Drive form screw headSlotted (L)
Connection methodScrew connection with tension sleeve
Drive form screw headSlotted (L)
Flange
Tightening torque0.3 Nm ... 0.7 Nm
Notes
Notes on operationIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Mechanical tests
Test for conductor damage and slackening
SpecificationIEC 60999-1:1999-11
ResultTest passed
Pull-out test
SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
4 mm² / solid / > 60 N
4 mm² / flexible / > 60 N
Insertion and withdrawal forces
ResultTest passed
No. of cycles50
Insertion strength per pos. approx.8 N
Withdraw strength per pos. approx.5 N
Torque test
SpecificationIEC 60999-1:1999-11
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Polarization and coding
SpecificationIEC 60512-13-5:2006-02
ResultTest passed
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Sweep speed5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Durability test
SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level7.3 kV
Contact resistance R10.5 mΩ
Contact resistance R20.6 mΩ
Insertion/withdrawal cycles50
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage3.31 kV
Shocks
SpecificationIEC 60068-2-27:2008-02
Pulse shapeHalf-sine
Acceleration30g
Shock duration18 ms
Test directionsX-, Y- and Z-axis (pos. and neg.)
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Electrical tests
Thermal test Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions12
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)400 V
Rated surge voltage (III/3)6 kV
minimum clearance value - non-homogenous field (III/3)5.5 mm
minimum creepage distance (III/3)5.5 mm
Rated insulation voltage (III/2)630 V
Rated surge voltage (III/2)6 kV
minimum clearance value - non-homogenous field (III/2)5.5 mm
minimum creepage distance (III/2)5.5 mm
Rated insulation voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
minimum clearance value - non-homogenous field (II/2)5.5 mm
minimum creepage distance (II/2)5.5 mm
Packaging specifications
Type of packagingpacked in cardboard
