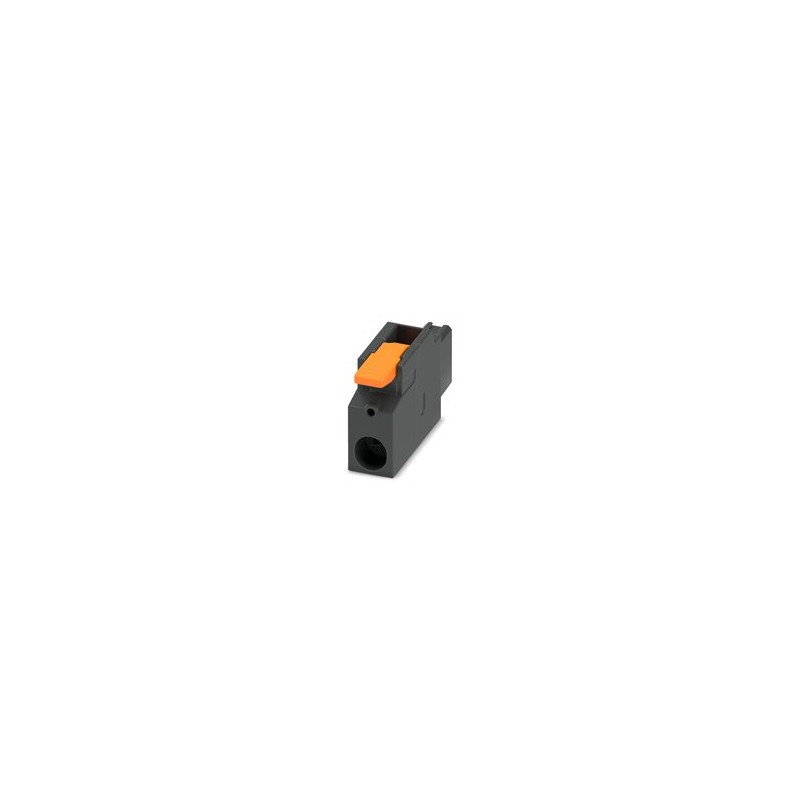

LPC 16 HC/ 1-ST-10,16 BK RC 1459330 PHOENIX CONTACT Conector PCB, secção transversal nominal: 16 mm², cor: p.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

LPC 16 HC/ 1-ST-10,16 BK RC 1459330 PHOENIX CONTACT Conector PCB, secção transversal nominal: 16 mm², cor: p..

LPC 16 HC/ 1-ST-10,16 BK RC

1459330

PHOENIX_CONTACT

25

Conector PCB, secção transversal nominal: 16 mm², cor: preto, corrente nominal: 76 A, tensão nominal (III/2): 1000 V, contactos de superfície: estanho, tipo de contacto: Fêmea, número de linhas: 1, número de polos: 1, família de artigos: LPC 16 HC/. -ST, passo: 10,16 mm, tipo de conexão: Conexão da alavanca push-in, direção da conexão driver/PCB: 0°, gancho de fixação: - sem gancho de fixação, sistema plug-in: COMBICON PC 16 avançado, travamento: sem, tipo de fixação: sem, tipo de embalagem: encaixotado

PCB connector, nominal cross section: 16 mm2, color: black, nominal current: 76 A, rated voltage (III/2): 1000 V, contact surface: Tin, contact connection type: Socket, number of rows: 1, number of positions: 1, product range: LPC 16 HC/..-ST, pitch: 10.16 mm, connection method: Lever Push-in connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 16 advanced, locking: without, mounting: without, type of packaging: packed in cardboard

Mais detalhes


Home > PHOENIX_CONTACT

* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT

Preço total: $127.73
Preço unitário: $5.11

Quantidade Preço
25+$5.11
50+$4.43
75+$4.10
100+$3.92
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


Dados técnicos
Product properties
Product lineCOMBICON Connectors XL
Product typePCB connector
Product familyLPC 16 HC/..-ST
Number of positions1
Pitch10.16 mm
Number of rows1
Electrical properties
Nominal current IN76 A
Nominal voltage UN1000 V
Degree of pollution3
Contact resistance0.235 mΩ
Rated voltage (III/3)1000 V
Rated surge voltage (III/3)8 kV
Rated voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV
Rated voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
Connection data
Connection technology
Connector systemCOMBICON PC 16 advanced
Nominal cross section16 mm²
Contact connection typeSocket
Interlock
Locking typewithout
Mounting flangewithout
Conductor connection
Connection methodLever Push-in connection
Conductor/PCB connection direction0 °
Conductor cross section rigid0.75 mm² ... 16 mm²
Conductor cross section flexible0.75 mm² ... 16 mm²
Conductor cross section AWG18 ... 4
Conductor cross section flexible, with ferrule without plastic sleeve0.75 mm² ... 16 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.75 mm² ... 16 mm²
Cylindrical gauge a x b / diameter- / 5.4 mm
Stripping length18 mm
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (10 - 16 µm Sn)
Metal surface contact area (top layer)Tin (10 - 16 µm Sn)
Material data - housing
Color (Housing)black (9005)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Material data – actuating element
Color (Actuating element)orange (2003)
Insulating materialPA GF
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Dimensions
Dimensional drawingbkgvpdefhs.jpg
Pitch10.16 mm
Width [w]23.52 mm
Height [h]32.2 mm
Length [l]56.3 mm
Notes
Notes on operationIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Mechanical tests
Conductor connection
SpecificationIEC 60999-1:1999-11
ResultTest passed
Test for conductor damage and slackening
SpecificationIEC 60999-1:1999-11
ResultTest passed
Repeated connection and disconnection
SpecificationIEC 60999-1:1999-11
ResultTest passed
Pull-out test
SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.75 mm² / solid / > 30 N
0.75 mm² / flexible / > 30 N
16 mm² / solid / > 100 N
16 mm² / flexible / > 100 N
Insertion and withdrawal forces
ResultTest passed
No. of cycles25
Insertion strength per pos. approx.8 N
Withdraw strength per pos. approx.6 N
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Polarization and coding
SpecificationIEC 60512-13-5:2006-02
ResultTest passed
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.15 mm (10 Hz ... 60.1 Hz)
Sweep speed20 m/s² (60.1 Hz  ... 150 Hz)
Test duration per axis2.5 h
Durability test
SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level9.8 kV
Contact resistance R10.235 mΩ
Contact resistance R20.212 mΩ
Insertion/withdrawal cycles25
Insulation resistance, neighboring positions> 5 MΩ
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Thermal stress105 °C/168 h
Power-frequency withstand voltage4.26 kV
Ambient conditions
Ambient temperature (operation)-40 °C ... 105 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Electrical tests
Thermal test | Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions6
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ
Temperature cycles
SpecificationIEC 60999-1:1999-11
ResultTest passed
Air clearances and creepage distances | 1. Insulation coordination
SpecificationIEC 61984:2008-10
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)1000 V
Rated surge voltage (III/3)8 kV
minimum clearance value - non-homogenous field (III/3)8 mm
minimum creepage distance (III/3)12.5 mm
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV
minimum clearance value - non-homogenous field (III/2)8 mm
minimum creepage distance (III/2)8 mm
Rated insulation voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
minimum clearance value - non-homogenous field (II/2)5.5 mm
minimum creepage distance (II/2)5.5 mm
Air clearances and creepage distances | 2. Insulation coordination
SpecificationIEC 60664-1:2020-05
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)1000 V AC/DC
Rated surge voltage (III/3)8 kV
minimum clearance value - non-homogenous field (III/3)8 mm
minimum creepage distance (III/3)12.5 mm
Rated insulation voltage (III/2)1500 V DC
Rated surge voltage (III/2)10 kV
minimum clearance value - non-homogenous field (III/2)11 mm
minimum creepage distance (III/2)11 mm
Rated insulation voltage (II/2)1500 V DC
Rated surge voltage (II/2)8 kV
minimum clearance value - non-homogenous field (II/2)8 mm
minimum creepage distance (II/2)8 mm
Packaging specifications
Type of packagingpacked in cardboard
