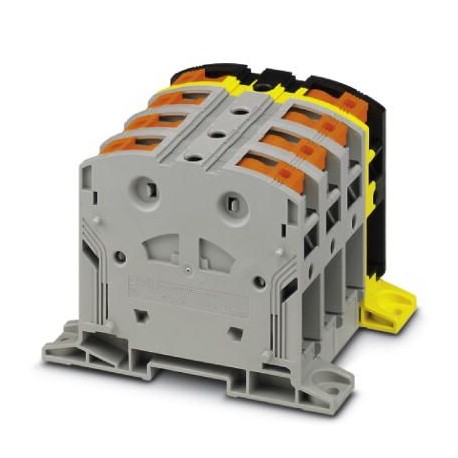

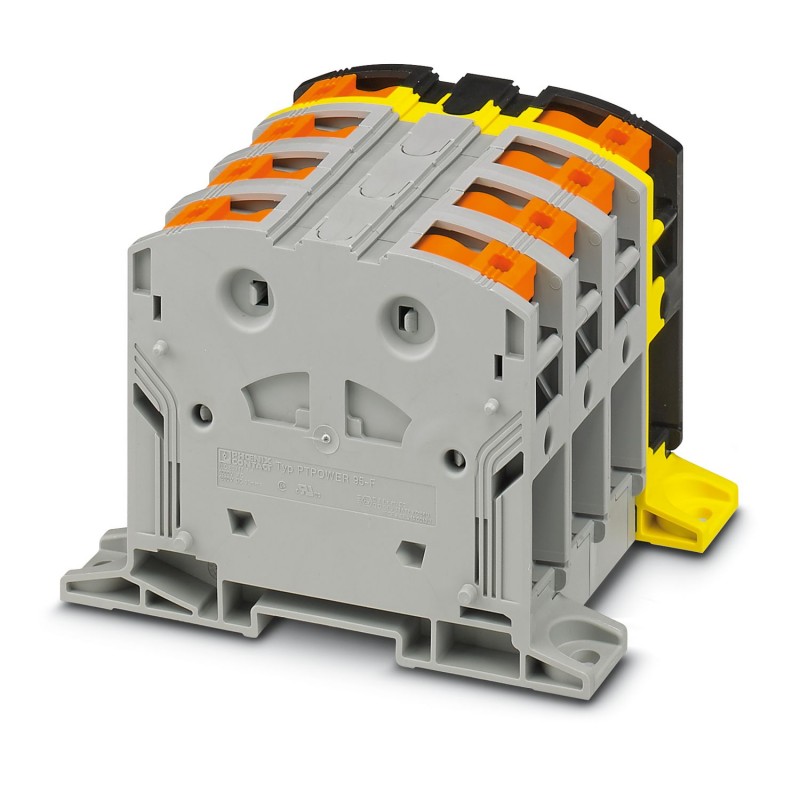

PTPOWER 95-3L/FE-F 3260127 PHOENIX CONTACT Terminal de alta corrente
PTPOWER 95-3L/FE-F
3260127
PHOENIX_CONTACT
2
Terminal de alta corrente
Terminal de alimentação, bloqueado, tensão nominal: 1000 V, corrente nominal: 232 A, número de ligações: 8, número de pólos: 4, tipo de ligação: Ligação PowerTurn, 1.º andar, secção transversal: 25 mm² - 95 mm², tipo de montagem: aparafusado directamente, cor: cinzento/preto-amarelo
High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 8, number of positions: 4, connection method: PowerTurn connection, cross section: 25 mm2 - 95 mm2, mounting type: direct screw connection, color: gray/black-yellow
Blocos de terminais > Terminal de conexão de passagem
Terminais
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲Dados técnicos
Product properties
| Product type | High current terminal block |
| Number of positions | 4 |
| Pitch | 25 mm |
| Number of connections | 8 |
| Number of rows | 1 |
| Potentials | 4 |
| Data management status | |
| Article revision | 12 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 7.54 W |
Connection data
| Number of connections per level | 2 |
| Nominal cross section | 95 mm² |
| Stripping length | 40 mm |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 25 mm² ... 95 mm² |
| Cross section AWG | 2 ... 3/0 (converted acc. to IEC) |
| Conductor cross section flexible | 25 mm² ... 95 mm² |
| Conductor cross section, flexible [AWG] | 2 ... 3/0 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 25 mm² ... 95 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 25 mm² ... 95 mm² |
| Cross-section with insertion bridge, rigid | 70 mm² |
| Cross-section with insertion bridge, flexible | 70 mm² |
| Nominal current | 232 A |
| Maximum load current | 232 A (with 95 mm² conductor cross section) |
| Nominal voltage | 1000 V |
| Connection cross sections directly pluggable | |
| Conductor cross section rigid | 25 mm² ... 95 mm² |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 25 mm² ... 95 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 25 mm² ... 95 mm² |
Ex data
| Rated data (ATEX/IECEx) | |
| Identification | II 2 GD Ex eb IIC Gb |
| Operating temperature range | -60 °C ... 110 °C |
| Ex-certified accessories | 1206612 SZF 3-1,0X5,5 |
| List of bridges | Insertion bridge / EB 2-25/PT / 3260157 |
| Bridge data | 144 A / 50 mm² |
| 174 A / 70 mm² | |
| List of bridges | Insertion bridge / EB 3-25/PT / 3260160 |
| Bridge data | 144 A / 50 mm² |
| 174 A / 70 mm² | |
| Ex temperature increase | 40 K (237 A / 95 mm²) |
| Rated voltage | 1100 V |
| at bridging with insertion bridge | 1100 V |
| for bridging with bridge | 1100 V |
| Rated insulation voltage | 1000 V |
| output | (Permanent) |
| Ex level General | |
| Rated current | 215 A |
| Maximum load current | 215 A |
| Contact resistance | 0.1 mΩ |
| Ex connection data General | |
| Ferrule length | 40 mm |
| Stripping length | 40 mm |
| Nominal cross section | 95 mm² |
| Rated cross section AWG | 4/0 |
| Connection capacity rigid | 25 mm² ... 95 mm² |
| Connection capacity AWG | 4 ... 4/0 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 95 mm² |
| Single conductor/terminal point, flexible, with ferrule, without plastic sleeve, AWG | 4 ... 4/0 |
Dimensions
| Dimensional drawing |  |
| Width | 100 mm |
| Height | 139.1 mm |
| Depth | 99.8 mm |
| Drill hole spacing | 126.4 mm |
| Hole diameter | 6.5 mm |
| Pitch | 25 mm |
Material specifications
| Color | multicolored |
| gray (RAL 7042) | |
| black (RAL 9005) | |
| yellow (RAL 1018) | |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Static insulating material application in cold | -60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Electrical tests
| Surge voltage test | |
| Test voltage setpoint | 9.8 kV |
| Result | Test passed |
| Temperature-rise test | |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Result | Test passed |
| Short-time withstand current 95 mm² | 11.4 kA |
| Result | Test passed |
| Power-frequency withstand voltage | |
| Test voltage setpoint | 6 kV |
| Result | Test passed |
Mechanical properties
| Mechanical data | |
| Open side panel | No |
| Technical data | |
| Drill hole spacing | 126.4 mm |
Mechanical tests
| Mechanical strength | |
| Result | Test passed |
| Attachment on the carrier | |
| DIN rail/fixing support | NS 35/15 |
| Test force setpoint | 15 N |
| Result | Test passed |
| Test for conductor damage and slackening | |
| Rotation speed | 10 rpm |
| Revolutions | 135 |
| Conductor cross section/weight | 25 mm² / 4.5 kg |
| 95 mm²/14 kg | |
| Result | Test passed |
Environmental and real-life conditions
| Aging | |
| Temperature cycles | 192 |
| Result | Test passed |
| Needle-flame test | |
| Time of exposure | 30 s |
| Result | Test passed |
| Oscillation/broadband noise | |
| Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
| Spectrum | Service life test category 2, bogie-mounted |
| Frequency | f1= 5 Hz to f2= 250 Hz |
| ASD level | 6.12 (m/s²)²/Hz |
| Acceleration | 3.12g |
| Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis |
| Result | Test passed |
| Shocks | |
| Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
| Pulse shape | Half-sine |
| Acceleration | 30g |
| Shock duration | 18 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Standards and regulations
| Connection in acc. with standard | IEC 60947-7-1 |
Mounting
| Mounting type | direct screw connection |
| Característica | Valor |
|---|---|
| Secção de condutor de fio fino de ligação sem ponteira (EF007341) | 25 mm² |
| Secção do condutor de fio fino de ligação com ponteira (EF007339) | 25 mm² |
| Secção da ligação de cabo rígido (EF007337) | 25 mm² |
| Corrente nominal especificada In (EF008250) | 232 A |
| Tensão especificada de funcionamento (EF000228) | 1000 V |
| Tipo de ligação elétrica 1 (EF002526) | Outro |
| Tipo de ligação elétrica 2 (EF002527) | Outro |
| Número de fixações por nível (EF002660) | 2 |
| Adequado para material condutor (EF012572) | Alumínio/cobre |
| Material do corpo isolante (EF007543) | Outro |
| Temperatura de operação (EF002393) | -60 °C |
| Classe de inflamabilidade do material de selagem de acordo com UL 94 (EF002521) | V0 |
| Largura (EF000008) | 100 mm |
| Altura (EF000040) | 139.1 mm |
| Profundidade (EF000049) | 99.8 mm |
| Placa de fecho necessária (EF002525) | Não |
| Cor (EF000007) | Multicolorido |
| Níveis ligados internamente (EF002661) | Sim |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF CATALOG PHOENIX TERMINAL BLOCKS EN.pdf | 69 Mbytes |
|
| PHOENIX CONTACT-3260127-PTPOWER 95-3L/FE-F | 111 Kbytes |
|
