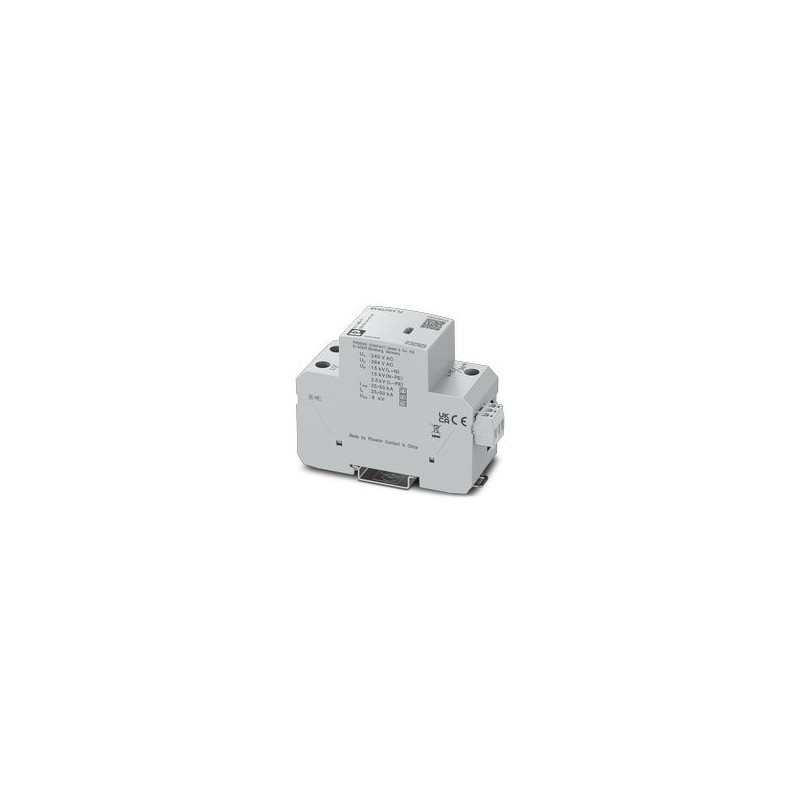

FLT-MB-T1-264/25-1+1-UT-R 1461300 PHOENIX CONTACT Para-raios e surtos combinados tipo 1+2+3
FLT-MB-T1-264/25-1+1-UT-R
1461300
PHOENIX_CONTACT
Para-raios e surtos combinados tipo 1+2+3
High-performance, spark gap-based non-pluggable lightning current arrester / surge protective device for 1-phase power supply networks with separate N and PE (3-conductor system: L1, N, PE), for lightning protection levels I and II, with remote signaling.
Home > PHOENIX_CONTACT
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲Dados técnicos
Product properties
| IEC test classification | T1 + T2 + T3 |
| I + II + III | |
| EN type | T1 + T2 + T3 |
| IEC power supply system | TN-S |
| TT | |
| Type | DIN rail module, one-piece |
| Product type | Combination type |
| Surge protection fault message | Optical, remote indicator contact |
| Insulation characteristics | |
| Overvoltage category | IV (between the main and auxiliary circuit) |
| II (Auxiliary circuit) | |
| Pollution degree | 2 |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
| Indicator/remote signaling | |
| Connection name | Remote fault indicator contact |
| Switching function | Changeover contact |
| Operating voltage | 12 V AC ... 250 V AC |
| 125 V DC (200 mA DC) | |
| Operating current | 10 mA AC ... 0.5 A AC |
| 0.5 A DC (30 V DC) | |
Connection data
| Cross section AWG | (converted acc. to IEC) |
| Connection method | Screw connection |
| Screw thread | M5 |
| Tightening torque | 3 Nm (2,5 mm² ... 16 mm²) |
| 4.5 Nm (25 mm² ... 35 mm²) | |
| Stripping length | 18 mm |
| Conductor cross section flexible | 2.5 mm² ... 25 mm² |
| Conductor cross section rigid | 2.5 mm² ... 35 mm² |
| Conductor cross section AWG | 13 ... 2 |
| Connection method | Fork-type cable lug |
| Conductor cross section flexible | 2.5 mm² ... 25 mm² |
| Remote fault indicator contact | |
| Connection method | Plug-in/screw connection via COMBICON |
| Screw thread | M2 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Stripping length | 7 mm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Dimensional drawing |  |
| Width | 36 mm |
| Height | 99.7 mm |
| Depth | 76.6 mm (incl. DIN rail 7.5 mm) |
| Horizontal pitch | 2 Div. |
Material specifications
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PBT |
| Material group | I |
| Housing material | PBT |
Mechanical properties
| Mechanical data | |
| Open side panel | No |
Protective circuit
| Mode of protection | L-N |
| L-PE | |
| N-PE | |
| Nominal voltage UN | 240/415 V AC (TN-S) |
| 240/415 V AC (TT) | |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 264 V AC |
| Rated load current IL | 80 A (< 55 °C) |
| Residual current IPE | ≤ 0.01 mA |
| Nominal discharge current In(8/20) µs (L-N) | 25 kA |
| Nominal discharge current In(8/20) µs (L-PE) | 25 kA |
| Nominal discharge current In(8/20) µs (N-PE) | 50 kA |
| Combination wave UOC | 6 kV |
| Impulse discharge current (10/350) µs (L-N), charge | 12.5 As |
| Impulse discharge current (10/350) µs (L-N), specific energy | 156 kJ/Ω |
| Impulse discharge current (10/350) µs (L-N), peak current value Iimp | 25 kA |
| Impulse discharge current (10/350) µs (L-PE), charge | 12.5 As |
| Impulse discharge current (10/350) µs (L-PE), specific energy | 156 kJ/Ω |
| Impulse discharge current (10/350) µs (L-PE), peak current value Iimp | 25 kA |
| Impulse discharge current (10/350) µs (N-PE), charge | 25 As |
| Impulse discharge current (10/350) µs (N-PE), specific energy | 625 kJ/Ω |
| Impulse discharge current (10/350) µs (N-PE), peak current value Iimp | 50 kA |
| Total discharge current Itotal(10/350) µs | 50 kA |
| Follow current quenching capacity Ifi(L-N) | 25 kA |
| Follow current interrupt rating Ifi(N-PE) | 100 A |
| Short-circuit current rating ISCCR | 25 kA |
| Voltage protection level Up(L-N) | ≤ 1.5 kV |
| Voltage protection level Up(L-PE) | ≤ 2.5 kV |
| Voltage protection level Up(N-PE) | ≤ 1.5 kV |
| Residual voltage Ures(L-N) | ≤ 1.5 kV (at In) |
| ≤ 1.3 kV (at 12.5 kA) | |
| ≤ 1.1 kV (at 5 kA) | |
| ≤ 1 kV (at 2.5 kA) | |
| Residual voltage Ures(L-PE) | ≤ 1.7 kV (at In) |
| ≤ 1.5 kV (at 12.5 kA) | |
| ≤ 1.3 kV (at 5 kA) | |
| ≤ 1.2 kV (at 2.5 kA) | |
| Residual voltage Ures(N-PE) | ≤ 1.3 kV (at In) |
| ≤ 1.1 kV (at 25 kA) | |
| ≤ 1 kV (at 10 kA) | |
| ≤ 0.5 kV (at 5 kA) | |
| TOV behavior at UT(L-N) | 457 V AC (5 s / withstand mode) |
| 457 V AC (120 min / withstand mode) | |
| TOV behavior at UT(N-PE) | 1200 V AC (200 ms / withstand mode) |
| Response time tA | ≤ 100 ns |
| Max. backup fuse with V-type through wiring | 80 A (gG) |
| Max. backup fuse with branch wiring | 315 A (gG) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 (Installed) |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m (operating voltage remote contact ≤ 250 V) |
| ≤ 5000 m (operating voltage remote contact ≤ 150 V) | |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 2g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 0,5g (9 … 200 Hz / 2.5 h / X, Y, Z) |
Standards and regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting type | DIN rail: 35 mm |
