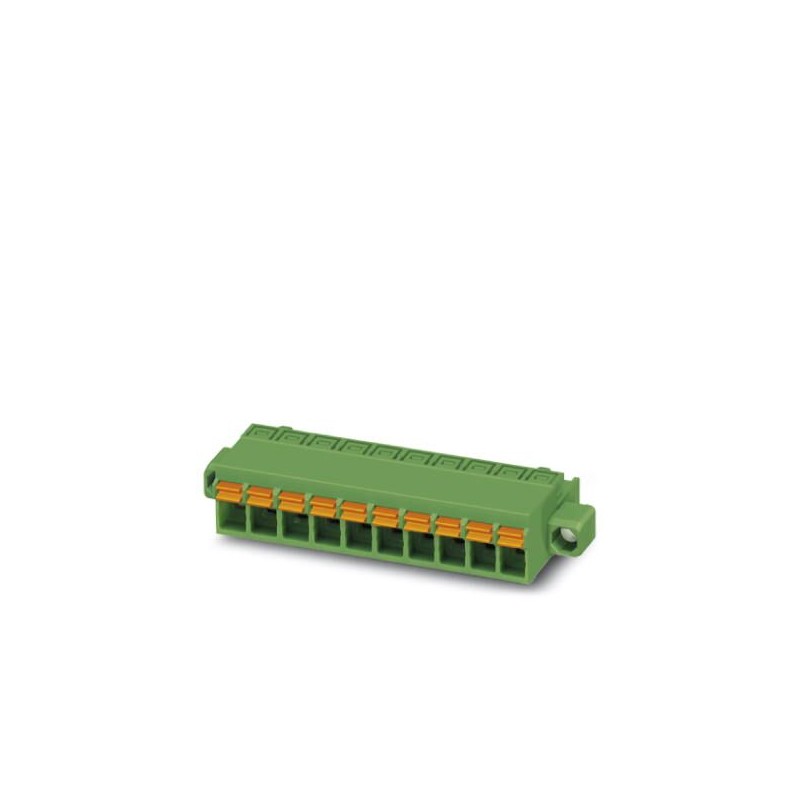

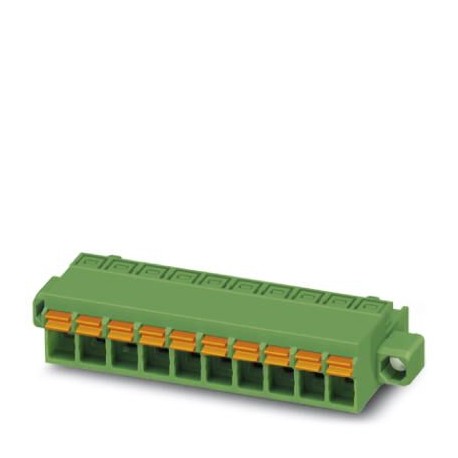

FKCN 2,5 HC/ 8-STF-5,08
1100207
PHOENIX_CONTACT
1000
PCB conector, corrente nominal: 12, a tensão nominal (III/2): 320 V, nominal da seção transversal de 2,5 mm2, número de posições: 8, pitch: 5.08 mm, método de ligação: Push-na primavera de conexão, cor: verde, superfície de contato: Estanho
PCB connector, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 8, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin
Conectores > Conector de cabo para conector de circuito impresso
Conectores PCB
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Obrigado pelo seu interesse nos nossos artigos, esperamos que o prazo indicado seja conveniente para si.
Durante a preparação do pedido pode seleccionar o tipo de envío que melhor se adapte ás suas necessidades: Aéreo Express 24Hrs, Terrestre Standard 48/72Hrs, etc.
Chave de encomenda | 1100207 |
---|---|
Quantidade de embalagem | 1 |
GTIN (EAN) | 4055626952413 |
Número do imposto alfandegário | 85366990 |
Brief article description | Printed-circuit board connector |
---|---|
Plug-in system | CLASSIC COMBICON |
Type of contact | Female connector |
Range of articles | FKCN 2,5/..-STF |
Pitch | 5.08 mm |
Number of positions | 8 |
Connection method | Push-in spring connection |
Number of levels | 1 |
Connection method | Push-in spring connection |
---|---|
pluggable | Yes |
Conductor cross section solid | 0.2 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG / kcmil | 24 ... 16 |
Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 1.5 mm² |
Stripping length | 10 mm |
Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
---|---|
Contact material | Cu alloy |
Surface characteristics | hot-dip tin-plated |
Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
Insulating material | PA |
---|---|
Insulating material group | I |
CTI according to IEC 60112 | 600 |
Flammability rating according to UL 94 | V0 |
Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Insulating material | PA |
---|---|
CTI according to IEC 60112 | 600 |
Flammability rating according to UL 94 | V0 |
Length [ l ] | 27.1 mm |
---|---|
Width [ w ] | 50.64 mm |
Height [ h ] | 10.9 mm |
Pitch | 5.08 mm |
Height (without solder pin) | 10.9 mm |
Dimension a | 35.56 mm |
Type of packaging | packed in cardboard |
---|---|
Pieces per package | 50 |
Denomination packing units | Pcs. |
Ambient temperature (storage/transport) | -40 °C ... 70 °C |
---|---|
Ambient temperature (assembly) | -5 °C ... 100 °C |
Ambient temperature (operation) | -40 °C ... 100 °C (dependent on the derating curve) |
Test result | Test passed |
---|---|
Test – repeated connection and release | IEC 60999-1:1999-11 |
Test passed | |
Test for conductor damage and slackening | IEC 60999-1:1999-11 |
Test passed |
Pull-out test | IEC 60999-1:1999-11 |
---|---|
Test passed | |
Conductor cross section / conductor type / tensile force | 0.2 mm² / solid / > 10 N |
0.2 mm² / flexible / > 10 N | |
1.5 mm² / solid / > 40 N | |
2.5 mm² / flexible / > 50 N |
Visual examination | Test passed IEC 60512-1-1:2002-02 |
---|---|
Dimensional test | Test passed IEC 60512-1-2:2002-02 |
Resistance of marking | Test passed IEC 60068-2-70:1995-12 |
Result | Test passed |
Specification | IEC 60512-13-2:2006-02 |
No. of cycles | 25 |
Insertion strength per pos. approx. | 8 N |
Withdraw strength per pos. approx. | 6 N |
Polarization and coding | Test passed IEC 60512-13-5:2006-02 |
Result | Test passed |
Specification | IEC 60512-15-1:2008-05 |
Test force per pos. | 38 N |
Clearances and creepage distances | IEC 60664-1:2007-04 |
---|---|
Specification | IEC 60664-1:2007-04 |
Rated insulation voltage (III/3) | 320 V |
Rated insulation voltage (III/2) | 320 V |
Rated insulation voltage (II/2) | 630 V |
Rated surge voltage (III/3) | 4 kV |
Rated surge voltage (III/2) | 4 kV |
Rated surge voltage (II/2) | 4 kV |
Minimum clearance - inhomogeneous field (III/3) | 3 mm |
Minimum clearance - inhomogeneous field (III/2) | 3 mm |
Minimum clearance - inhomogeneous field (II/2) | 3 mm |
Minimum creepage distance value (III/3) | 4 mm |
Minimum creepage distance value (III/2) | 3 mm |
Minimum creepage distance value (II/2) | 3.2 mm |
Specification | IEC 60999-1:1999-11 |
---|---|
Test current (minimum cross section) | 4 A DC |
Test current (maximum cross section) | 12 A DC |
Temperature cycles | 192 |
Insertion strength per pos. approx. | 8 N |
---|---|
Withdraw strength per pos. approx. | 6 N |
Polarization when inserted requirement >20 N | Test passed |
Contact holder in insert requirements >20 N | Test passed |
Specification | IEC 60512-9-1:2010-03 |
---|---|
Insertion/withdrawal cycles | 25 |
Contact resistance R21st level | 1.2 mΩ |
Contact resistance R22nd level | 1.6 mΩ |
Impulse withstand voltage at sea level | 4.8 kV |
Power-frequency withstand voltage | 2.21 kV |
Insulation resistance, neighboring positions | 127 TΩ |
Specification | ISO 6988:1985-02 |
---|---|
Cold stress | -40 °C/2 h |
Thermal stress | 100 °C/168 h |
Corrosive stress | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
Impulse withstand voltage at sea level | 4.8 kV |
Power-frequency withstand voltage | 2.21 kV |
Specification | IEC 61984:2008-10 |
---|---|
Result, degree of protection, IP code | Finger safety with IP20 test finger |
