> PHOENIX_CONTACT>Conectores PCB>FK-MCP 1,5/ 2-ST-3,5BDS:X71/-2 1011096 PHOENIX CONTACT Conector PCB, secção transversal nominal: 1,5 mm², co..
Produto anterior Próximo produto

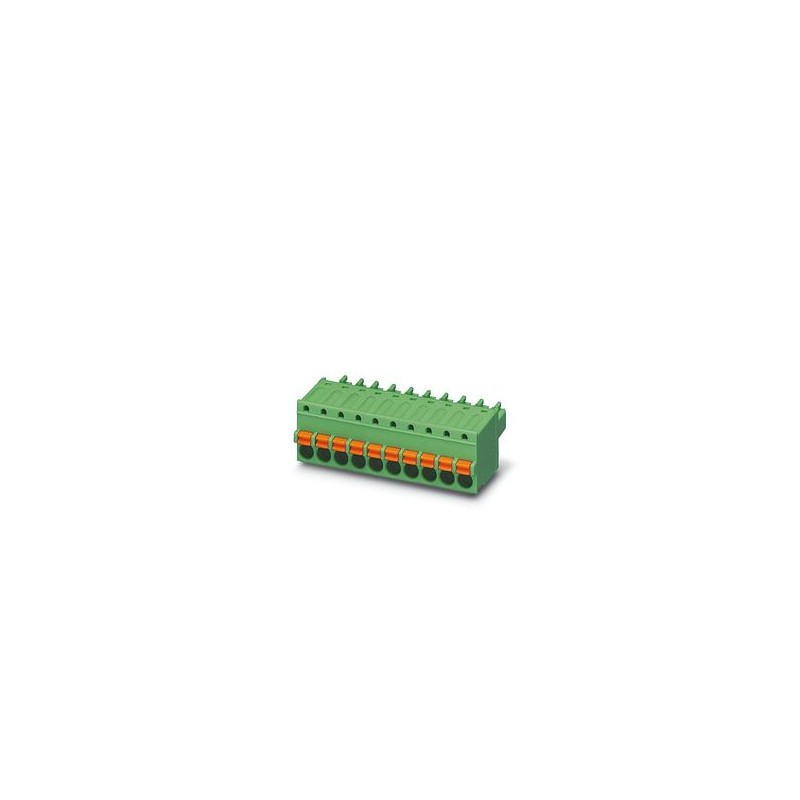

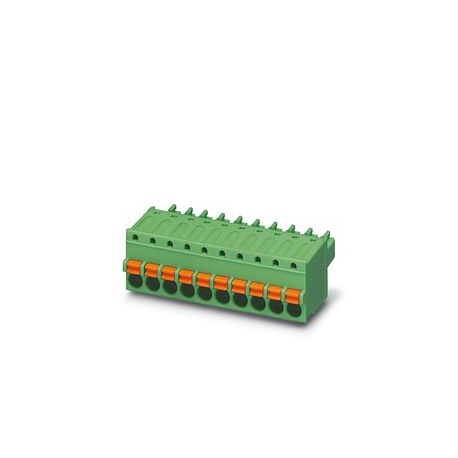

FK-MCP 1,5/ 2-ST-3,5BDS:X71/-2 1011096 PHOENIX CONTACT Conector PCB, secção transversal nominal: 1,5 mm², co.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

FK-MCP 1,5/ 2-ST-3,5BDS:X71/-2 1011096 PHOENIX CONTACT Conector PCB, secção transversal nominal: 1,5 mm², co..

FK-MCP 1,5/ 2-ST-3,5BDS:X71/-2

1011096

PHOENIX_CONTACT

Conector PCB, secção transversal nominal: 1,5 mm², cor: verde, corrente nominal: 8 A, tensão nominal (III/2): 160 V, contactos de superfície: estanho, tipo de contacto: Fêmea, número de linhas: 1, número de polos: 2, família de artigos: FK-MCP 1.5/.. -ST, passo: 3.5mm, tipo de conexão: Push-in conexão da mola, driver / placa de circuito impresso direção da conexão: 0°, sistema plug-in: COMBICON MC 1.5, travamento: sem, tipo de fixação: sem, tipo de embalagem: embalagem in a box

PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Socket, number of rows: 1, number of positions: 2, product range: FK-MCP 1,5/..-ST, pitch: 3.5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, plug-in system: COMBICON MC 1,5, locking: without, mounting: without, type of packaging: packed in cardboard

Mais detalhes


Conectores PCB

* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT

Preço total: $2.55
Preço unitário: $2.55

*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Mais informação

▲


Dados técnicos
Product properties
Product lineCOMBICON Connectors S
Product typePCB connector
Product familyFK-MCP 1,5/..-ST
Number of positions2
Pitch3.5 mm
Number of rows1
Electrical properties
Nominal current IN8 A
Nominal voltage UN160 V
Degree of pollution3
Contact resistance2 mΩ
Rated voltage (III/3)160 V
Rated surge voltage (III/3)2.5 kV
Rated voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
Rated voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV
Connection data
Connection technology
TypeStandard
Connector systemCOMBICON MC 1,5
Nominal cross section1.5 mm²
Contact connection typeSocket
Interlock
Locking typewithout
Mounting flangewithout
Conductor connection
Connection methodPush-in spring connection
Conductor/PCB connection direction0 °
Conductor cross section rigid0.14 mm² ... 1.5 mm²
Conductor cross section flexible0.14 mm² ... 1.5 mm²
Conductor cross section AWG26 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 0.5 mm²
Cylindrical gauge a x b / diameter2.4 mm x 1.5 mm / -
Stripping length9 mm
Specifications for ferrules without insulating collar
recommended crimping tool1212034 CRIMPFOX 6
ferrules without insulating collar, according to DIN 46228‑1Cross section: 0.25 mm²; Length: 7 mm
Cross section: 0.34 mm²; Length: 7 mm
Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross section: 1 mm²; Length: 8 mm ... 10 mm
Cross section: 1.5 mm²; Length: 10 mm
Specifications for ferrules with insulating collar
recommended crimping tool1212034 CRIMPFOX 6
ferrules with insulating collar, according to DIN 46228‑4Cross section: 0.14 mm²; Length: 8 mm
Cross section: 0.25 mm²; Length: 8 mm
Cross section: 0.34 mm²; Length: 8 mm
Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 10 mm
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Material data – actuating element
Color (Actuating element)orange (2003)
Insulating materialPOM
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94HB
Dimensions
Dimensional drawingbkgvpdefhs.jpg
Pitch3.5 mm
Width [w]7.9 mm
Height [h]12.4 mm
Length [l]21 mm
Mechanical tests
Conductor connection
SpecificationIEC 60999-1:1999-11
ResultTest passed
Test for conductor damage and slackening
SpecificationIEC 60999-1:1999-11
ResultTest passed
Repeated connection and disconnection
SpecificationIEC 60999-1:1999-11
ResultTest passed
Pull-out test
SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.14 mm² / solid / > 10 N
0.14 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Insertion and withdrawal forces
ResultTest passed
No. of cycles25
Insertion strength per pos. approx.7 N
Withdraw strength per pos. approx.5 N
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Polarization and coding
SpecificationIEC 60512-13-5:2006-02
ResultTest passed
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Sweep speed5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Durability test
SpecificationIEC 60512-5:1992-08
Impulse withstand voltage at sea level2.95 kV
Contact resistance R12 mΩ
Contact resistance R22.2 mΩ
Insertion/withdrawal cycles25
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage1.39 kV
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Electrical tests
Thermal test | Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions20
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions1012Ω
Temperature cycles
SpecificationIEC 60999-1:1999-11
ResultTest passed
Air clearances and creepage distances |
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)160 V
Rated surge voltage (III/3)2.5 kV
minimum clearance value - non-homogenous field (III/3)1.5 mm
minimum creepage distance (III/3)2 mm
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)1.5 mm
Rated insulation voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)1.5 mm
minimum creepage distance (II/2)1.6 mm
Packaging specifications
Type of packagingpacked in cardboard

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
