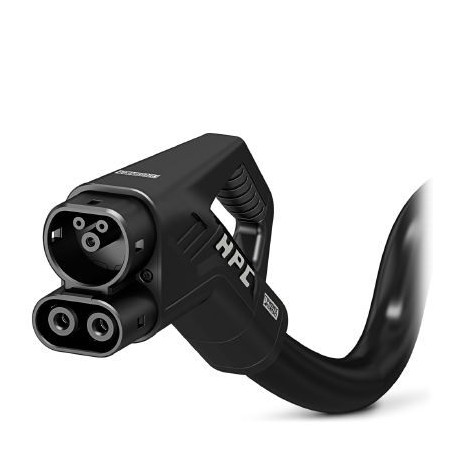

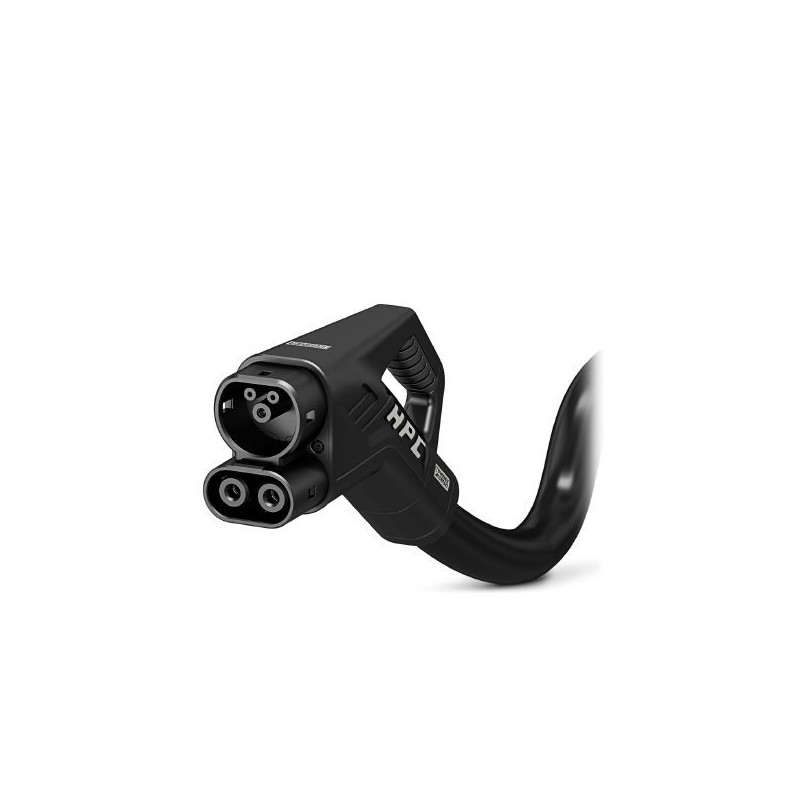

EV-T2HPCC-DC500A-6,0M50ECBK11 1101642 PHOENIX CONTACT DC cabo de carregamento, HPC-DC cabo de carregamento c..
EV-T2HPCC-DC500A-6,0M50ECBK11
1101642
PHOENIX_CONTACT
DC cabo de carregamento, HPC-DC cabo de carregamento com resfriado veículo conector, refrigerado a cabo, Sem painel de alimentação, CCS tipo 2, Combinado de Carregamento do Sistema, IEC 62196-3-1, 500 / 1000 V (DC), o design da linha HPC, cabo: 6 m, preto, hétero, NOTA: o Cabo de gestão podem ser necessários., acasalamento rosto: preto, área de alça: preto
CHARX connect, cabo de carregamento HPC-DC, com conector de carregamento de veículo refrigerado e cabo refrigerado, para carregamento de corrente contínua (DC) de veículos elétricos (EV), sem passagem, com sensores digitais de temperatura, HPC CCS tipo 2, IEC62196-3-1, 500 A / 1000 V (DC), HPC-Line, logotipo PHOENIX CONTACT, cabo: 6 m, preto, reto
DC charging cable, HPC-DC charging cable with cooled vehicle connector, cooled cable, Without panel feed-through, CCS type 2, Combined Charging System, IEC 62196-3-1, 500 A / 1000 V (DC), design line HPC, cable: 6 m, black, straight, NOTE: Cable management may be required., mating face: black, handle area: black
Dispositivos de encaixe industriais e especiais > Cabo de carregamento E-Mobility
Mobilidade Eletrônica
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Best sellers
▲Mais informação
▲Dados comerciais
| Chave de encomenda | 1101642 |
|---|---|
| Quantidade de embalagem | 1 UNID |
| Observação | Produzido sob encomenda (sem devolução) |
| GTIN (EAN) | 4055626959726 |
| Peso por unidade (exclusive embalagem) | 13.800,000 g |
| Número do imposto alfandegário | 85444290 |
| País de origem | DE (Alemanha) |
Desenhos
Product definition
| Product type | HPC-DC charging cable with cooled vehicle connector, cooled cable |
|---|---|
| Type | Without panel feed-through |
| Standards/regulations | IEC 62196-3-1 |
| Charging standard | CCS type 2 |
| Combined Charging System | |
| High Power Charging | |
| Charging mode | Mode 4 |
| Note | NOTE: Cable management may be required. |
| Cable management is required in certain regions if the cable length exceeds 5.0 m (Switzerland) or 7.5 m (USA) (IEC 61851-1). | |
| Cooling technology | Water-glycol mixture as coolant in the vehicle connector and in the cable |
Dimensions
| Vehicle connector width | 72.00 mm |
|---|---|
| Vehicle connector height | 181.20 mm |
| Vehicle connector depth | 285.20 mm |
| Conductor length | 6 m |
| Stripping length | 140 mm ±10 mm |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 40 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 60 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP54 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| IP20 (when not plugged in, the required IP24 degree of protection must be ensured by other means, e.g., by a holder, see accessories) |
Electrical properties
| Maximum charging power | 500 kW |
|---|---|
| Number of power contacts | 3 (PE, DC+, DC-) |
| Rated current of power contacts | 500 A |
| Rated voltage for power contacts | 1000 V DC |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation with modulated Powerline communication according to ISO/IEC 15118 / DIN SPEC 70121 |
| Communication interfaces | CAN bus for reading the temperature and leakage sensor data |
| Digital output for determining the functional status of the vehicle connector | |
| Note on the connection method | cannot be disconnected |
| Resistor coding | 1500 Ω (between PE and PP) |
| Temperature monitoring | 2x NTC (replaceable, front DC contacts) |
| 2x NTC (DC power wires inside) |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Design
| Design line | HPC |
|---|---|
| Mating face color | black |
| Color handle area | black |
| Label | 8.9 mm x 28.9 mm (customer logo on request) |
Material
| Housing material | Plastic |
|---|---|
| Material handle area | Soft plastic |
| Material mating face | Plastic |
| Flammability rating | V0 |
| Material surface of contacts | Ag |
Cable
| Cable structure | 5 x 25 mm² + 7 x 0.75 mm² |
|---|---|
| Wiring standards/regulations | DIN EN 50620 |
| Wiring class | Class 6 |
| External cable diameter | 35.7 mm ±0.4 mm |
| Type of conductor | straight |
| Cable resistance | ≤ 0.00078 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Outer sheath, material | EVM-1 in accordance with EN 50620 |
| External sheath, color | black |
| Minimum bending radius | 535.5 mm (15 x diameter) |
| Coolant | 50 % water, 50 % glycol (recommended: Glysofor N) |
| Cooling hose diameter | 1x 11.5 mm Supply hose |
| 2x 8.8 mm Return hoses |
Requirements for a cooling unit
| Cooling capacity | 600 W (Cable length: 3 m) |
|---|---|
| 800 W (Cable length: 4 m) | |
| 900 W (Cable length: 5 m) | |
| 1050 W (Cable length: 6 m) | |
| Flow rate | 2 l/min |
| Operating pressure | 1.00 bar ... 2.00 bar |
| Flow temperature | 10 °C |
| Maximum permissible pressure | 4.00 bar |
| Relief pressure | 2.00 bar |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
