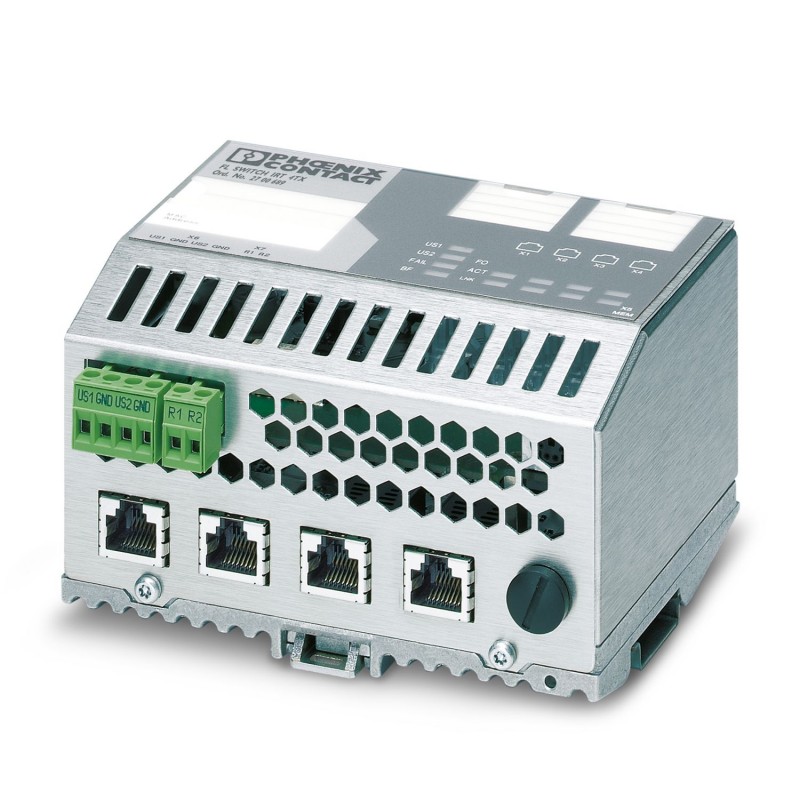

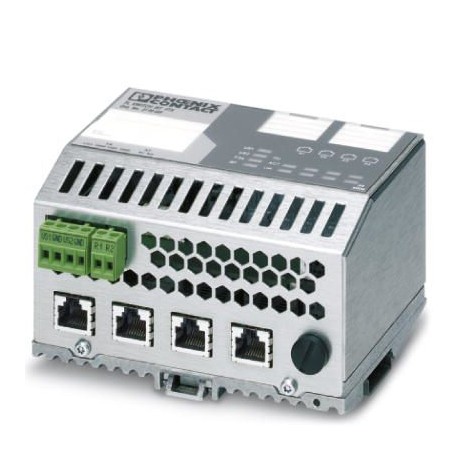

FL SWITCH IRT 4TX 2700689 PHOENIX CONTACT Industrial Ethernet Switch
FL SWITCH IRT 4TX
2700689
PHOENIX_CONTACT
Industrial Ethernet Switch
Switch Ethernet, quatro portas no formato RJ45 para PROFINETRT/IRT, montável em trilho simétrico
Ethernet switch, four ports in RJ45 format for PROFINET RT/IRT, DIN rail mountable
Material de instalação de redes de telecomunicações DNT / FNT > Interruptor de rede
E / S
Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲Dados técnicos
Dimensions
| Dimensional drawing |  |
| Width | 127 mm |
| Height | 95 mm |
| Depth | 69 mm |
Notes
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Material specifications
| Material base plate | Die-cast aluminum, corrosion-resistant |
| Housing material | Aluminum, transparently anodized |
Mounting
| Mounting type | DIN rail mounting |
Interfaces
| Ethernet | |
| Connection method | RJ45 |
| Transmission speed | 10/100 Mbps |
| Transmission physics | Copper |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, link, activity |
| No. of channels | 4 (RJ45 ports) |
Product properties
| Product type | Switch |
| Product family | Managed Switch IRT |
| Type | Stand-Alone |
| MTTF | 362.73 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| 218.23 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| 37.87 Years (SN 29500 standard, temperature 60°C, operating cycle 100%) | |
| Data management status | |
| Article revision | 02 |
| Switch functions | |
| Basic functions | Cut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device. |
| Signal contact control voltage | 24 V (typical) |
| Signal contact control current | typical |
| PROFINET conformance class | Conformance-Class C |
| PROFINET device function | PROFINET device |
| PROFINET specification | PROFINET-IO RT/IRT, Spec. 2.x |
| Redundancy | MRP (Media Redundancy Protocol) |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and FO status), and BF (Bus Fail) |
| Supported browsers | Internet Explorer 5.5 or higher |
| Security functions | |
| Basic functions | Cut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device. |
Electrical properties
| Current consumption | 165 mA (at 24 V DC) |
| Local diagnostics | US1/2 Supply voltage US1, US2 Green LED |
| FAIL Div. LED red | |
| LINK Link status Green LED | |
| ACT Receiving/sending telegrams Green LED | |
| BF Bus errors LED red | |
| Maximum power dissipation for nominal condition | 3.96 W |
| Test section | 24 V supply / functional ground 500 V DC 1 min. |
| Ethernet interface/all other potentials 2.25 kV DC 1 min. | |
| Transmission medium | Copper |
| Supply | |
| Supply voltage (DC) | 24 V DC (redundant) |
| Supply voltage range | 18.5 V DC ... 30.2 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Residual ripple | 3.6 VPP(within the permitted voltage range) |
| Max. current consumption | 165 mA |
| Typical current consumption | 165 mA (at US= 24 V DC) |
| Current consumption | 165 mA (at 24 V DC) |
| Function | |
| Signal contact control voltage | 24 V (typical) |
| Signal contact control current | typical |
| Supply: Module electronics | |
| Supply voltage | 24 V DC |
| Supply voltage range | 18 V DC ... 32 V DC (including ripple) |
Connection data
| Connection method | Screw connection |
| Conductor cross section, rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Stripping length | 7 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Vibration (operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz |
| Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Conformance with EMC directives | EN 55022 (emitted interference) Class A |
| EN 61000-4-2 (ESD) Criterion A | |
| EN 61000-4-3 (electromagnetic fields) Criterion A, 10 V/m | |
| EN 61000-4-5 (surge) Criterion B | |
| EN 61000-4-4 (EFT burst) Criterion A, 2.2 kV | |
| EN 61000-4-6 EN 61000-4-6 (line noise immunity) Criterion A, Field intensity: 10 V/m | |
| EN 61000-4-3 (electromagnetic fields) EN 61000-4-3 (electromagnetic fields) Criterion A, 10 V/m | |
| 60950-1 |
System properties
| Functionality | |
| Basic functions | Cut-through/store-and-forward switch complies with IEEE 802.3 2 priority classes in accordance with IEEE802.1 P, TCP/IP protocol, DCP capable, integrated web server function, PROFINET device. |
| System requirements | |
| Supported browsers | Internet Explorer 5.5 or higher |
Signaling
| Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 3 LEDs per Ethernet port (Link, Activity, and FO status), and BF (Bus Fail) |
