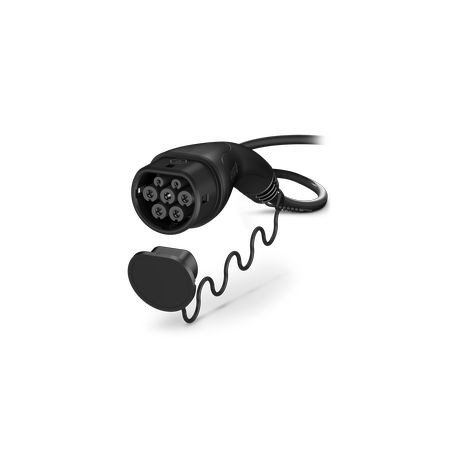

CHARX ET2C-1AC32-5,0MES00P 1285691 PHOENIX CONTACT Conexão CHARX, Cabo de Carregamento AC, com Conector de C..
CHARX ET2C-1AC32-5,0MES00P
1285691
PHOENIX_CONTACT
168
Conexão CHARX, Cabo de Carregamento AC, com Conector de Carregamento de Veículos e Extremidade de Cabo Aberto, para Carregamento de Veículos Elétricos (EVs) com Corrente Alternada (AC), Tampa, Tipo 2, IEC62196-2, X-Line, Logotipo PHOENIX CONTACT, Cabo: 5 m, Preto, Reto
CHARX connect eco, AC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with alternating current (AC), with protective cap, Type 2, IEC 62196-2, 32 A / 250 V (AC), PHOENIX CONTACT logo, cable: 5 m, black, straight
Home > PHOENIX_CONTACT
* Produto novo em sua embalagem original com todas as garantias e certificações de PHOENIX_CONTACT
Related products
▲Best sellers
▲Mais informação
▲| Product type | AC charging cable |
| Product family | CHARX connect eco |
| Application | for charging electric vehicles (EV) with alternating current (AC) |
| compatible with type 2 infrastructure charging sockets at charging stations for electromobility (EVSE) | |
| Type | AC charging cable |
| with vehicle charging connector and open cable end | |
| Design | with protective cap |
| Affixed logo | PHOENIX CONTACT logo |
| Charging mode | Mode 3, Case C |
| Charging standard | Type 2 |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Coding | 220 Ω (between PE and PP) |
| Type of charging current | AC single-phase |
| Charging power | 8 kW |
| Charging current | 32 A |
| Power contact | |
| Number | 3 (L1, N, PE) |
| Rated voltage | 250 V AC |
| Rated current | 32 A |
| Signal contact | |
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Cross section AWG | (converted acc. to IEC) |
| Vehicle charging connector | |
| Dimensional drawing |  |
| Width | 70.4 mm |
| Height | 82.3 mm |
| Depth | 201.8 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | black (9005) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | TPE-U |
| Material (Contact surface) | Silver |
| Cable length | 5 m |
| Wiring standards/regulations | prEN 50620/DIN EN 50620 |
| Wiring certifications | VDE |
| Cable weight | max. 242 kg/km |
| Cable type | Class 5 |
| Cable type | straight |
| Cable structure | 3 x 4.0 mm² + 1 x 0.5 mm² |
| External cable diameter | 11.5 mm ±0.3 mm |
| Outer sheath, material | TPE-U |
| Cable resistance | ≤ 0.00425 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending radius | min. 92 mm (8x diameter) |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
| Ambient conditions | |
| Degree of protection (Vehicle charging connector) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Degree of protection (Protective cap) | IP54 |
| Ambient temperature (operation) | -40 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | max. 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 62196-2 |
