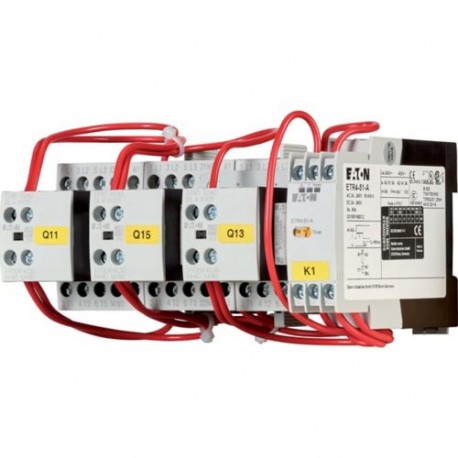

SDAINLM22(400V50HZ) 101382 Y7-101382 EATON ELECTRIC XTSD022B10N partida estrela-triângulo, 3P, 11kW (AC3,400.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

SDAINLM22(400V50HZ) 101382 Y7-101382 EATON ELECTRIC XTSD022B10N partida estrela-triângulo, 3P, 11kW (AC3,400..

SDAINLM22(400V50HZ)

101382

Y7-101382

EATON-MOELLER

XTSD022B10N partida estrela-triângulo, 3P, 11kW (AC3,400V)

Conexão de parafuso de combinação de contator estrela/triângulo 11

Eaton Moeller® series SDAINL Star-delta contactor combination, 380 V 400 V: 11 kW, 400 V 50 Hz, AC operation

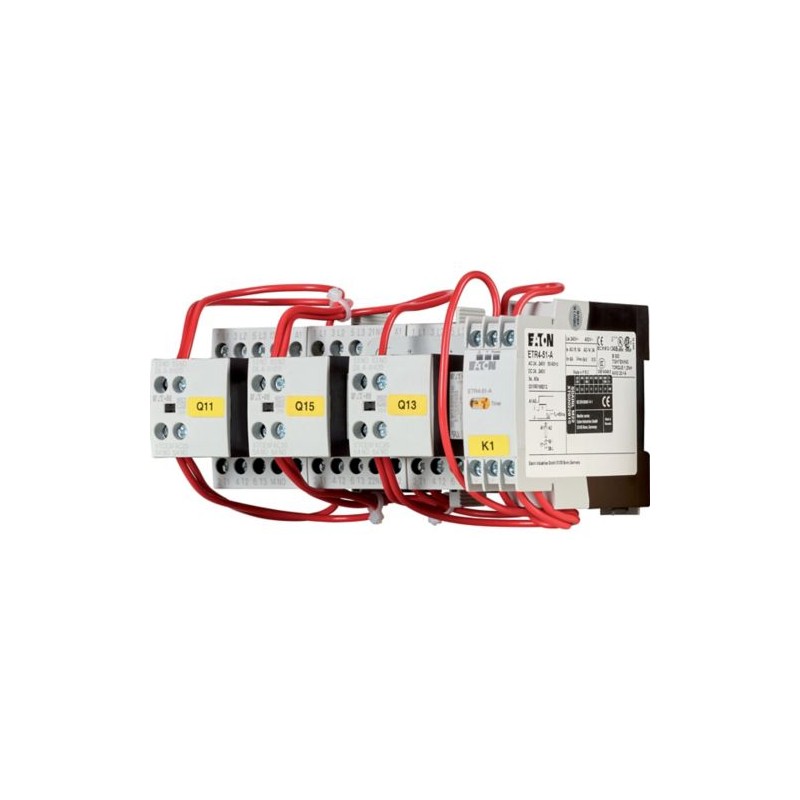

Combinação de contator estrela-triângulo, Aplicação: Partida do motor estrela-triângulo para combinações de contatores, Frequência de operação: máximo de 30 partidas por hora, Acessórios: Combinações estrela-triângulo SDAINL, Categoria de uso: NAC-3: Motores de indução CA normais: partida, desligamento durante a operação, Corrente nominal de operação AC-3 380 V 400 V: Ie= 22 A, Potência máxima para motores trifásicos, 50 - 60 Hz AC-3 220 V 230 V: P= 5,5 kW, 380 V 400 V: P= 11 kW, 500 V: P= 11 kW, 660 V 690 V: P= 11 kW, Tempo máximo de comutação: 20 s, Tensão de acionamento: 400 V 50 Hz, Tensão AC/DC: Funcionamento AC, Componentes individuais da combinação de contactores de rede Q11: DILM12-10, + DILA-XHI20, Delta Q15 Contator: DILM12-01, + DILA-XHI20 Nº da peça, Contator estrela Q13: DILM7-01, + DILA-XHI20 Nº da peça, K1 Relé de temporização: ETR4-51 Nº da peça, Notas: Também adequado para motores com classe de eficiência IE3., Os dispositivos compatíveis com IE3 são identificados pelo logotipo em sua embalagem.

Mais detalhes


Aparelhos elétricos de baixa tensão > Combinação de contatores

Contatores até 170A

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $331.84
Preço unitário: $331.84
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series SDAINL contactor combination
Catalog Number
101382
EAN
4015081011254
Product Length/Depth
117 mm
Product Height
82 mm
Product Width
158 mm
Product Weight
1.03 kg
Certifications
CE
Model Code
SDAINLM22(400V50HZ)

Features Functions

Functions
Star-delta contactor

General

Application
Star-delta motor starting for contactor combinations
Degree of protection
IP20
NEMA Other
Product category
Contactor combinations
Suitable for
Also motors with efficiency class IE3
Used with
ETR4-51
Utilization category
AC-3: Normal AC induction motors: starting, switch off during running
Voltage type
AC

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Electrical rating

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V
22 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
22 A
Rated operational power at AC-3, 380/400 V, 50 Hz
11 kW
Rated operational power at AC-3, 500 V, 50 Hz
11 kW
Rated operational power at AC-3, 690 V, 50 Hz
11 kW

Magnet system

Changeover time
20 s, max.
Duty factor
100 %
Rated control supply voltage (Us) at AC, 50 Hz - min
400 V
Rated control supply voltage (Us) at AC, 50 Hz - max
400 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V

Communication

Connection
Screw terminals

Contacts

Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
3

Design verification

Equipment heat dissipation, current-dependent Pvid
4.1 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
1.37 W
Rated operational current for specified heat dissipation (In)
12.76 A
Static heat dissipation, non-current-dependent Pvs
3.3 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 101382 Low-voltage industrial controls and switchgear (EC000010)
Característica Valor
Function (EF000030) Star-delta contactor
Suitable for rail mounting (EF003972) false
Rated control supply voltage AC 50 Hz (EF003978) 400 V
Rated control supply voltage AC 60 Hz (EF003979) 0 V
Rated control supply voltage DC (EF003980) 0 V
Voltage type for actuating (EF008242) AC
Number of normally closed contacts as main contact (EF001375) 0
Number of normally open contacts as main contact (EF001374) 9
Type of electrical connection of main circuit (EF006819) Screw connection
Voltage type (operating voltage) (EF005294) AC
Operating voltage AC 50 Hz (EF008206) 24 V
Operating voltage AC 60 Hz (EF008207) 24 V
Operating voltage DC (EF008208) 0 V
Rated operation current Ie at AC-1, 400 V (EF001393) 22 A
Rated operation current Ie at AC-3, 400 V (EF001392) 22 A
Rated operation power at AC-3, 400 V (EF001364) 11 kW
Rated operation power NEMA (EF011960) 0 kW
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 3
Number of auxiliary contacts as change-over contact (EF003531) 0
Type of electrical connection for auxiliary- and control current circuit (EF006979) Screw connection
Degree of protection (IP) (EF005474) IP20
Degree of protection (NEMA) (EF011959) Other
Width (EF000008) 158 mm
Height (EF000040) 82 mm
Depth (EF000049) 117 mm
