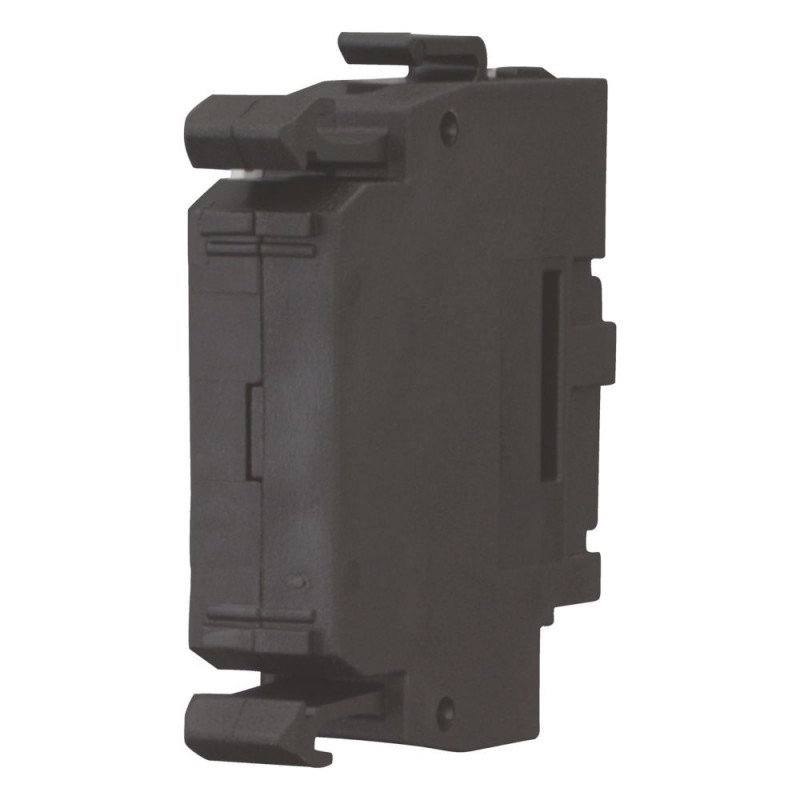

EATON - MOELLER M22-SWD-NOP 147637 Y7-147637 - Imagem 1

As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22-SWD-NOP 147637 Y7-147637 EATON ELECTRIC módulo M22-SWD-NOPQ SWDT Universal, fixação frontal

Referência: M22-SWD-NOP

Código: 147637

Número de catálogo: Y7-147637

Fabricante: EATON - MOELLER

Descrição:

módulo M22-SWD-NOPQ SWDT Universal, fixação frontal
Acessório frontal do módulo universal SmartWire-DT
Eaton Moeller® series M22 Universal module, SmartWire-DT, front mount
SmartWire-DT simplesmente engenhoso: para dispositivos piloto: os elementos frontais padrão RMQ-Titan podem ser facilmente conectados com os elementos de função SmartWire-DT, acabados!

Categorias:

  • Aparelhos elétricos de baixa tensão > Acessórios para a tecnologia de comutação por baixa tensão
  • EATON - MOELLER > Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

  • Mais informação
  • ETIM
  • PDF
  • Avaliações
Garantia, reparação e devolução.

Preço unitário: 17,63 €

Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Calcule o preço por quantidade

QuantidadePreço

Prazo padrão: 5 dias.

  • Estes prazos são estimativos e podem variar uma vez tratado o pedido do artigo.

JÁ VISTOS

MAIS INFORMAÇÃO

General specifications

Product Name
Eaton Moeller® series M22 SmartWire-DT universal slave
Catalog Number
147637
EAN
4015081440979
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
10 mm
Product Weight
0.009 kg
Certifications
UL Category Control No.: NKCR
CSA File No.: 2324643
UL File No.: E29184
CSA Class No.: 3211-07
Model Code
M22-SWD-NOP

Especificações do produto

Accessory/spare part type
Other
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Connection to SmartWire-DT
Yes
Connection type
Front fixing
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-30 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.3 W

ETIM for 147637 Componentes industriais para Baixa Tensão (EC002498)

Nome da característicaTipo de acessório/peça de reposição (EF000215)
Valor da característicaOutro
Nome da característicaAcessório (EF013236)
Valor da característicaNão
Nome da característicaPeça de substituição (EF013237)
Valor da característicaNão
