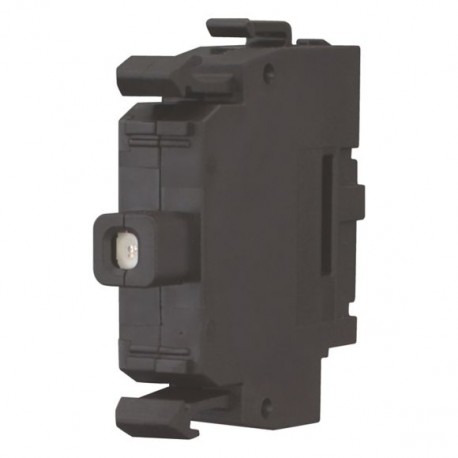

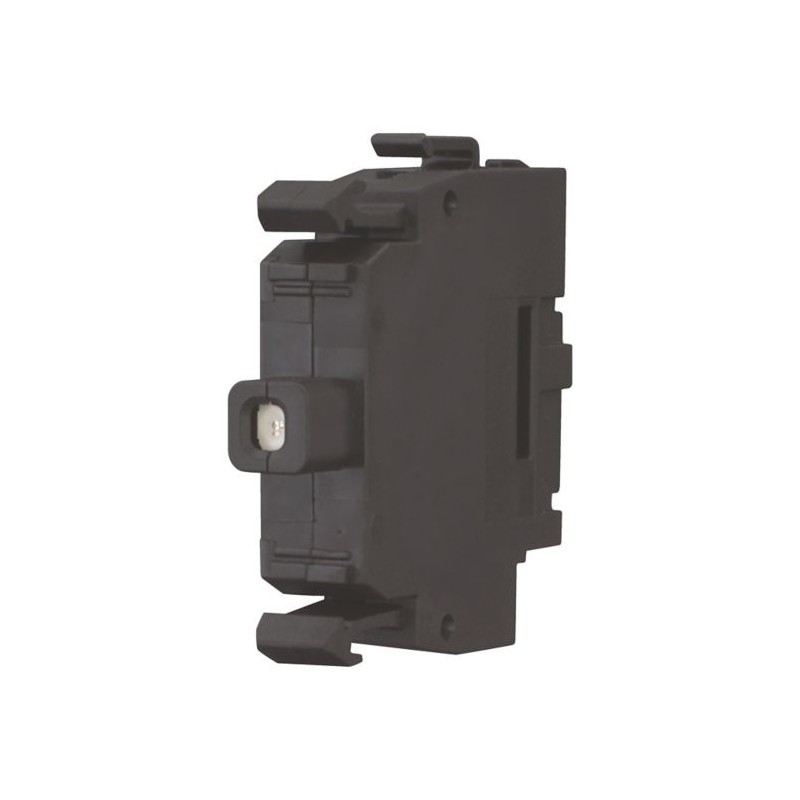

M22-SWD-LED-G 115968 Y7-115968 EATON ELECTRIC M22-SWD-LED-GQ SWD RMQ TITAN, c. Alternar + LED
M22-SWD-LED-G
115968
Y7-115968
EATON-MOELLER
M22-SWD-LED-GQ SWD RMQ - TITAN, c. Alternar + LED
SmartWire-DT LED Elemento Verde Montagem Frontal
Eaton Moeller® series M22 LED element, for combination with RMQ-Titan operating elements M22-..., Front fixing green
Elemento LED, Fixação: Montagem frontal, Conexão SmartWire-DT: sim
Aparelhos elétricos de baixa tensão > Bloco de suporte da lâmpada para dispositivos de comando e sinalização
Auxiliares de controle e sinalização
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series M22 LED element
Catalog Number
115968
EAN
4015081157082
Product Length/Depth
45 mm
Product Height
42 mm
Product Width
10 mm
Product Weight
0.009 kg
Certifications
CSA
IEC/EN 61131-2
UL Category Control No.: NKCR
CSA File No.: 2324643
CSA Class No.: 3211-07
EN 50178
UL
UL File No.: E29184
IEC/EN 61131-2
UL Category Control No.: NKCR
CSA File No.: 2324643
CSA Class No.: 3211-07
EN 50178
UL
UL File No.: E29184
Model Code
M22-SWD-LED-G
Especificações do produto
Air discharge
8 kV, according to IEC 61131-2, level 3, ESD
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Light source
Pollution degree
2
Burst impulse
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
Connection to SmartWire-DT
Yes
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-30 °C
Ambient storage temperature - min
-40 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Height of fall (IEC/EN 60068-2-32) - max
0.3 m
Rated operational current for specified heat dissipation (In)
0 A
Rated operational voltage (Ue) at AC - max
0 V
Rated operational voltage (Ue) at AC - min
0 V
Rated operational voltage (Ue) at DC - max
30 V
Rated operational voltage (Ue) at DC - min
30 V
Static heat dissipation, non-current-dependent Pvs
0.3 W
Environmental conditions
Condensation: prevent with appropriate measures
Voltage type
DC
Fastening type
Front fastening
Mounting position
As required
Light color
Green
Connection type
SWD: Plug, 8-pole
Front fixing
Front fixing
Lamp type
LED
Connection
SmartWire-DT plug connector SWD4-8SF2-5
Contact discharge
4 kV, according to IEC/EN 61131-2, Level 2, ESD
Overvoltage category
Not applicable
Connection type (auxiliary circuit)
Flat plug-in connection
Constant acceleration
1 g, 8.4 - 150 Hz, according to IEC/EN 61131-2, Vibrations
Degree of protection
IP20
Functions
For combination with RMQ-Titan operating elements M22-...
Constant amplitude
3,5 mm, 5 - 8.4 Hz, according to IEC/EN 61131-2, Vibrations
Lamp holder
None
Electromagnetic fields
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
Radiated RFI
10 V (IEC/EN 61131-2:2008, Level 3)
Drop and topple
50 mm Drop height, Drop to IEC/EN 60068-2-31
Radio interference class
Class A (EN 55011)
Relative humidity
9 - 95 % (non-condensing, IEC/EN 60068-2-30)
LED indicator
Status indication of SmartWire-DT network: Green LED
Shock resistance
15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 9 Impacts
Station
SmartWire-DT slave, SmartWire-DT network
| Característica | Valor |
|---|---|
| Transformador integrado (EF001358) | Não |
| Com resistência de redução de tensão integrado (EF001399) | Não |
| Com fonte de luz (EF005905) | Sim |
| Com díodo integrado (EF001400) | Não |
| Suporte da lâmpada (EF000048) | Nenhum |
| Tensão nominal Ue em CA 50 Hz (EF007029) | 0 V |
| Tensão nominal Ue em CA 60 Hz (EF007030) | 0 V |
| Tensão nominal Ue na CC (EF007031) | 30 V |
| Tipo de tensão para atuação (EF008242) | DC |
| Tipo de lâmpada (EF002423) | LED |
| Tipo de conexão do circuito auxiliar (EF006820) | Conexão de ficha plana |
| Cor da fonte de luz (EF001402) | Verde |
| Tipo de aperto da fixação (EF002442) | Fixação frontal |
