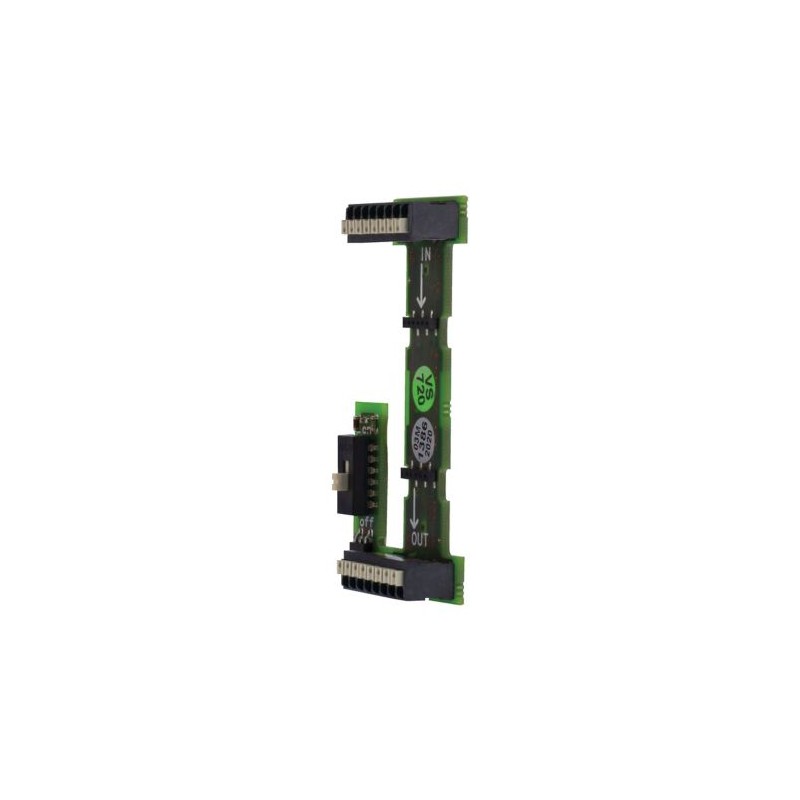

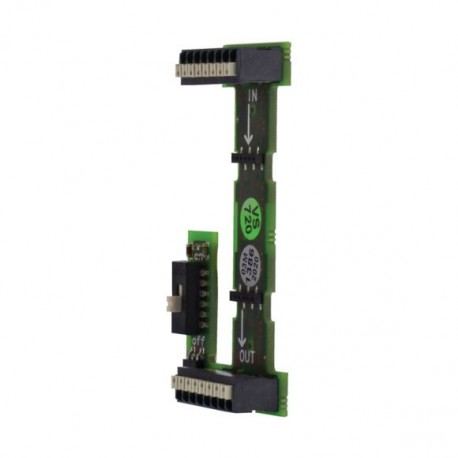

M22-SWD-I2-LP01 115991 Y7-115991 EATON ELECTRIC M22-SWD-I2-LP01Q SWD caixa de montagem PCB Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22-SWD-I2-LP01 115991 Y7-115991 EATON ELECTRIC M22-SWD-I2-LP01Q SWD caixa de montagem PCB

M22-SWD-I2-LP01

115991

Y7-115991

EATON-MOELLER

M22-SWD-I2-LP01Q SWD - caixa de montagem PCB

SmartWire-DT Card para teclado de 2 furos

Eaton Moeller® series M22 Card, SmartWire-DT, for enclosure with 2 mounting locations

SmartWire-DT simplesmente engenhoso: para dispositivos piloto: os elementos frontais padrão RMQ-Titan podem ser facilmente conectados com os elementos de função SmartWire-DT, acabados!

Mais detalhes


Aparelhos elétricos de baixa tensão > Acessórios para dispositivos de controle

Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $19.17
Preço unitário: $19.17
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series M22 Card
Catalog Number
115991
EAN
4015081157310
Product Length/Depth
82 mm
Product Height
16 mm
Product Width
47 mm
Product Weight
0.016 kg
Certifications
CSA File No.: 2324643
CSA
CSA Class No.: 3211-07
UL Category Control No.: NKCR
UL
UL File No.: E29184
Catalog Notes
Circuit boards for M22-I… surface mounting enclosure
Model Code
M22-SWD-I2-LP01

Especificações do produto

Accessory/spare part type
Accessory
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Connectable SmartWire-DT network terminator
Connection to SmartWire-DT
Yes
Functions
For taking bottom function elements
Electrical accessory type
Other
Mechanical accessory type
Other
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-30 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Number of locations
2
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0.3 W

ETIM for 115991 Low-voltage industrial controls and switchgear (EC002024)
Característica Valor
Type of electrical accessory/spare part (EF005722) Other
Type of mechanical accessory/spare part (EF005994) Other
Accessory (EF013236) true
Spare part (EF013237) false

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22-SWD-I2-LP01 Y7-115991 115991 IT_115973.pdf 2 Mbytes M22-SWD-I2-LP01 Y7-115991 115991 IT_115973.pdf
