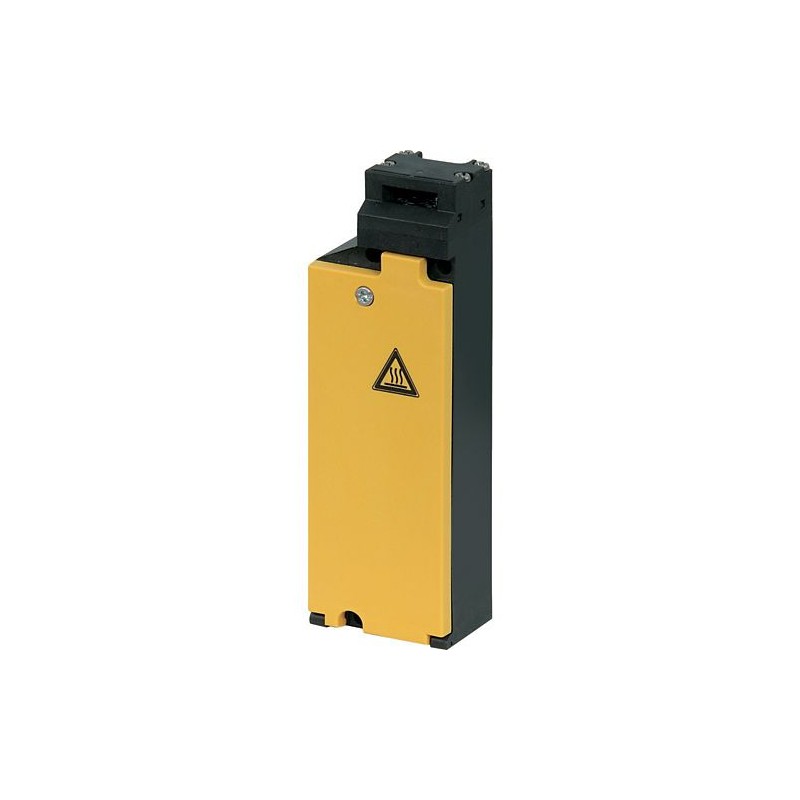

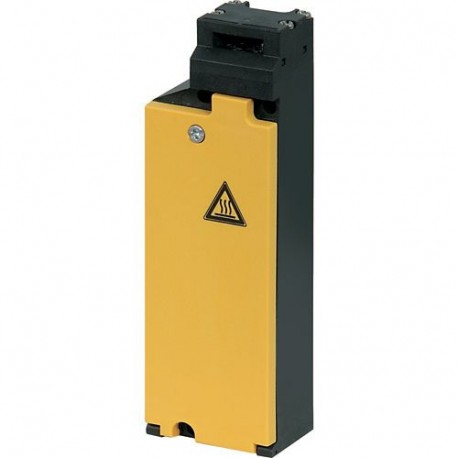

LS-S02-230AMT-ZBZ/X 106822 Y7-106822 EATON ELECTRIC LS-S02-230AMT-ZBZX interruptores de posição de segurança Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

LS-S02-230AMT-ZBZ/X 106822 Y7-106822 EATON ELECTRIC LS-S02-230AMT-ZBZX interruptores de posição de segurança

LS-S02-230AMT-ZBZ/X

106822

Y7-106822

EATON-MOELLER

LS-S02-230AMT-ZBZX interruptores de posição de segurança

Interruptor de posição de segurança 2 NC Electromagnet Interlock

Eaton Moeller® series LS Position switch, 2 N/C, basic, magnet-powered interlock LS-S02-230AMT-ZBZ/X

Interruptor de posição, função básica: interruptores de posição, interruptores de posição de segurança, referência do grupo de peças: LS... ZBZ/X, Gama de produtos: Dispositivos básicos com intertravamento magnético (princípio de circuito aberto), Grau de proteção: IP65, Características: Dispositivo básico, expansível, Temperatura ambiente: -25 - +40 °C, Descrição: Com supervisão de intertravamento, Monitoramento da posição da porta: contínuo, Possibilidade de controle de tempo da operação de liberação via ESR5-NV3-30, Contatos N/A = Normalmente fechado: 2 NF, Notas: = função de segurança, por abertura positiva de acordo com IEC/EN 60947-5-1, Tensão nominal de controle para acionamento magnético: Us= 230 V 50/60 Hz V, Carcaça: Material isolante, Tipo de conexão: Terminal de parafuso, Normas: IEC/EN 60947

Mais detalhes


Sensores > Interruptor de posição individual

Interruptores de posição

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $230.98
Preço unitário: $230.98
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series LS Position switch
Catalog Number
106822
EAN
4015081065820
Product Length/Depth
55 mm
Product Height
170 mm
Product Width
37 mm
Product Weight
0.417 kg
Certifications
UL File No.: E29184
CSA
IEC/EN 60947-5
UL 508
CSA Class No.: 3211-03
CSA File No.: 012528
UL
IEC/EN 60947
CE
UL Category Control No.: NKCR
CSA-C22.2 No. 14
Model Code
LS-S02-230AMT-ZBZ/X

Especificações do produto

Type
Features
Forced opening
Expandable
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Electric connection type
Cable entry metrical
Enclosure material finishing
Other
Fitted with:
Interlock monitoring
Operating frequency
800 Operations/h
Pollution degree
3
Actuator alignment
Other
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Enclosure material
Insulated material
Plastic
Enclosure type
Cuboid
Rated operational current (Ie) at DC-13, 110 V
0.8 A
Rated operational current (Ie) at DC-13, 125 V
0.8 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.3 A
Rated operational current (Ie) at DC-13, 24 V
3 A
Rated operational current for specified heat dissipation (In)
6 A
Sensor height
173 mm
Sensor length
39 mm
Static heat dissipation, non-current-dependent Pvs
0 W
Width sensor
60 mm
Product category
Basic units with spring-powered interlock (closed-circuit principle)
Action
2020122120328-Mechanical Limit Switches.xlsm-Data
Force for positive opening - min
50 N
Rated impulse withstand voltage (Uimp)
4000 V AC
Actuating force at beginning/end of stroke
25 N/15 N (plug-in/pull-out)
Explosion safety category for dust
None
Explosion safety category for gas
None
Actuator type
None
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Diameter sensor
0 mm
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.13 W
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
2
Number of contacts (normally open contacts)
0
Number of safety auxiliary contacts
2
Rated insulation voltage (Ui)
400 V
Rated operational current (Ie) at AC-15, 125 V
6 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
6 A
Rated operational current (Ie) at AC-15, 24 V
6 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
4 A
Mounting position
As required
Rated conditional short-circuit current (Iq)
1 kA
Overvoltage category
III
Connection type
Screw terminal
Duty factor
100 % (Magnet)
Degree of protection
IP65
NEMA Other
Interface type
None
Switch function type
Slow-action switch
Voltage tolerance
0.85 x Us, Pick-up and drop-out values
1.1 x Us, Pick-up and drop-out values
Lifespan
1,000,000 mechanical Operations
Rated control supply voltage
230 V 50/60 Hz (Us, for magnet drive)
Repetition accuracy
0.02 mm (Contacts/switching capacity)
Shock resistance
10 g, Standard-action contact, Mechanical, Half-Sinusoidal shock 20 ms
Mechanical holding force
1700 N (according to GS-ET-19 (04/2004), XG, XW, XNG)
1600 N (according to GS-ET-19 (04/2004), XWA, XFG, XF)
1200 N (according to GS-ET-19 (04/2004), XNW)
Supply frequency
Max. 400 Hz, Contacts
Suitable for
Safety functions
Power consumption
8 W at 24 V DC (electromechanical actuation)
11 VA at 230 V AC (electromechanical actuation)
8 VA at 120 V AC (electromechanical actuation)
Short-circuit protection rating
Max. 6 A gG/gL, Fuse, Contacts
Terminal capacity (flexible with ferrule)
2 x (0.5 - 1.5) mm²
1 x (0.5 - 1.5) mm²
Terminal capacity (solid)
2 x (0.75 - 1.5) mm²
1 x (0.75 - 2.5) mm²

ETIM for 106822 Sensors (EC000030)
Característica Valor
Width sensor (EF007094) 60 mm
Diameter sensor (EF007111) 0 mm
Height of sensor (EF007283) 173 mm
Length of sensor (EF007334) 39 mm
Rated operation current Ie at AC-15, 24 V (EF007084) 6 A
Rated operation current Ie at AC-15, 125 V (EF007082) 6 A
Rated operation current Ie at AC-15, 230 V (EF001385) 6 A
Rated operation current Ie at DC-13, 24 V (EF007087) 3 A
Rated operation current Ie at DC-13, 125 V (EF007085) 0.8 A
Rated operation current Ie at DC-13, 230 V (EF001386) 0.3 A
Switching function (EF000189) Slow-action switch
Switching function latching (EF007447) false
Output electronic (EF006987) false
Forced opening (EF006694) true
Number of safety auxiliary contacts (EF006940) 2
Number of contacts as normally closed contact (EF008255) 2
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 0
Type of interface (EF006977) None
Type of interface for safety communication (EF003956) None
Construction type housing (EF004008) Cuboid
Housing material (EF001596) Plastic
Coating housing (EF001601) Other
Type of control element (EF006976) None
Alignment of the control element (EF008793) Other
Type of electric connection (EF003961) Cable entry metrical
With status indication (EF001602) false
Suitable for safety functions (EF001597) true
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Ambient temperature during operating (EF007515) -25 °C
Degree of protection (IP) (EF005474) IP65
Degree of protection (NEMA) (EF011959) Other

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
LS-S02-230AMT-ZBZ/X Y7-106822 106822 FR_106837.pdf 4 Mbytes LS-S02-230AMT-ZBZ/X Y7-106822 106822 FR_106837.pdf
