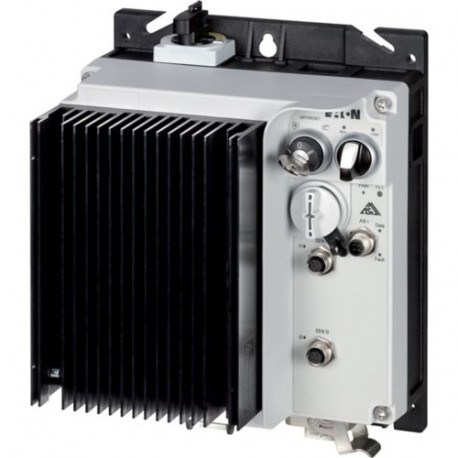

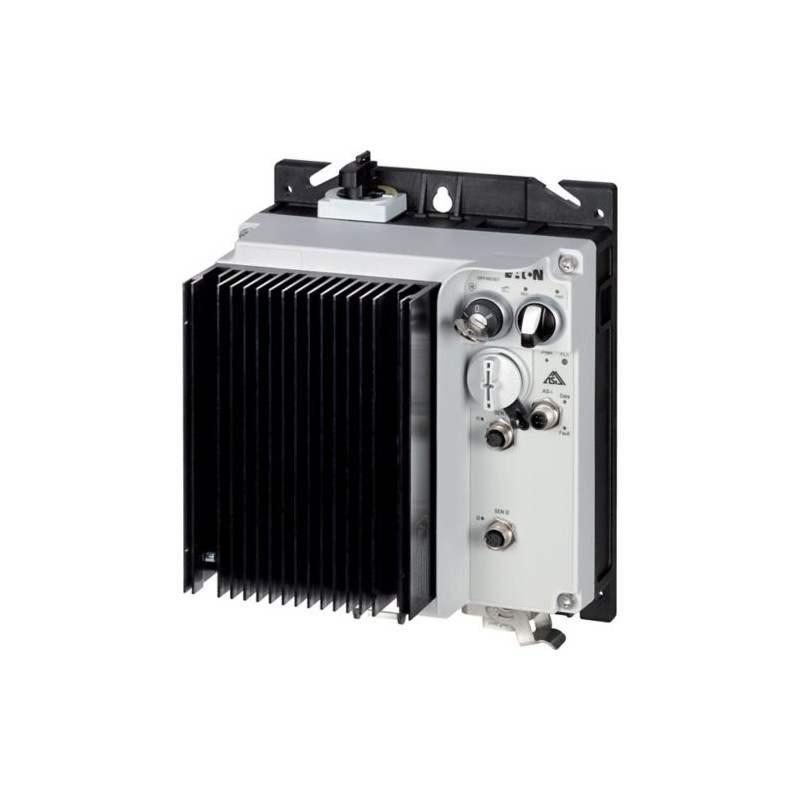

RASP5-5402A31-512R100S1 198576 Y7-198576 EATON ELECTRIC Conversor de frequência 5,6 A 400 V 50 Hz 2,2 kW Ten..
RASP5-5402A31-512R100S1
198576
Y7-198576
EATON-MOELLER
Conversor de frequência 5,6 A 400 V 50 Hz 2,2 kW Tensão para o
Eaton Moeller® series Rapid Link - Speed controller, 5.6 A, 2.2 kW, Sensor input 4, 230/277 V AC, AS-Interface®, S-7.4 for 31 modules, HAN Q5, with manual override switch, with braking resistance
Controlador de velocidade, 5.6 A, 2.2 kW, Entrada do sensor 4, 230/277 V AC, AS-Interface®, S-7.4 para 31 módulos, HAN Q5, com interruptor de sobreposição manual, com resistor de frenagem
Aparelhos elétricos de baixa tensão > Conversor de frequência inferior a 1 kV
Acionadores Rapid Link
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
| Product Name | Eaton Rapid Link Speed controller |
| Catalog Number | 198576 |
| EAN | 4015081964512 |
| Product Length/Depth | 157 mm |
| Product Height | 270 mm |
| Product Width | 220 mm |
| Product Weight | 3.59 kg |
| Certifications | UL 61800-5-1 IEC/EN 61800-5-1 RoHS UL approval CE |
| Catalog Notes |
|
| Model Code | RASP5-5402A31-512R100S1 |
Especificações do produto
| Features | Parameterization: drivesConnect Parameterization: drivesConnect mobile (App) Parameterization: Keypad Diagnostics and reset on device and via AS-Interface Parameterization: Fieldbus |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Fitted with: | Key switch position AUTO Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation Braking resistance Breaking resistance Selector switch (Positions: REV - OFF - FWD) PTC thermistor monitoring Internal DC link PC connection Manual override switch Key switch position OFF/RESET Thermo-click with safe isolation IGBT inverter Control unit Key switch position HAND |
| Climatic proofing | < 95 %, no condensation In accordance with IEC/EN 50178 |
| Operating mode | BLDC motors Synchronous reluctance motors U/f control PM and LSPM motors Sensorless vector control (SLV) |
| Rated impulse withstand voltage (Uimp) | 2000 V |
| Altitude | Max. 2000 m Above 1000 m with 1 % performance reduction per 100 m |
| Application in domestic and commercial area permitted | Yes |
| Mains switch-on frequency | Maximum of one time every 60 seconds |
| Ambient operating temperature - max | 40 °C |
| Ambient operating temperature - min | -10 °C |
| Mains voltage - max | 480 V |
| Output voltage - max | 500 V |
| Relative symmetric net frequency tolerance | 10 % |
| Relative symmetric net voltage tolerance | 10 % |
| Ambient storage temperature - max | 70 °C |
| Ambient storage temperature - min | -40 °C |
| Application in industrial area permitted | Yes |
| Mains voltage tolerance | 380 - 480 V (-10 %/+10 %, at 50/60 Hz) |
| Product category | Speed controller |
| Protection | Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4) |
| Resolution | 0.1 Hz (Frequency resolution, setpoint value) |
| Switch-on threshold for the braking transistor | 765 VDC |
| Mounting position | Vertical |
| Rated conditional short-circuit current (Iq) | 10 kA |
| Overvoltage category | III |
| Communication interface | AS-Interface |
| Connection | Plug type: HAN Q5 |
| Converter type | U converter |
| Degree of protection | NEMA 12 IP65 |
| Assigned motor power at 460/480 V, 60 Hz, 3-phase | 3 HP |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Input current ILN at 150% overload | 5.3 A |
| Mains current distortion | 120 % |
| Protocol | ASI AS-Interface profile cable: S-7.4 for 31 modules |
| Overload current | At 40 °C For 60 s every 600 s |
| Overload current IL at 150% overload | 8.4 A |
| Rated frequency - max | 66 Hz |
| Rated frequency - min | 45 Hz |
| Rated operational power at 380/400 V, 50 Hz, 3-phase | 1.5 kW |
| Assigned motor current IM at 400 V, 50 Hz, 150% overload | 5.6 A |
| Assigned motor current IM at 440 - 480 V, 60 Hz, 150% overload | 5.6 A |
| System configuration type | AC voltage Center-point earthed star network (TN-S network) Phase-earthed AC supply systems are not permitted. |
| Braking current | ≤ 0.6 A (max. 6 A for 120 ms), Actuator for external motor brake |
| Electromagnetic compatibility | 1st and 2nd environments (according to EN 61800-3) |
| Current limitation | 0.5 - 5.6 A, motor, main circuit Adjustable, motor, main circuit |
| Braking torque | ≤ 30 % (I/Ie) Adjustable to 100 % (I/Ie), DC - Main circuit |
| Braking voltage | 230/277 V AC -15 % / +10 %, Actuator for external motor brake |
| Cable length | C2 ≤ 5 m, maximum motor cable length C1 ≤ 1 m, maximum motor cable length C3 ≤ 25 m, maximum motor cable length |
| Functions | For actuation of motors with mechanical brake 3 fixed speeds Brake chopper with braking resistance for dynamic braking 1 potentiometer speed 4-quadrant operation possible |
| Delay time | < 10 ms, Off-delay < 10 ms, On-delay |
| Number of inputs (analog) | 0 |
| Number of inputs (digital) | 4 |
| Radio interference class | C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C1: for conducted emissions only |
| Number of outputs (digital) | 0 |
| Starting current - max | 200 %, IH, max. starting current (High Overload), For 2 seconds every 20 seconds, Power section |
| Number of phases (input) | 3 |
| Number of phases (output) | 3 |
| Power consumption | 58 W |
| Interfaces | Number of slave addresses: 31 (AS-Interface®) Specification: S-7.4 (AS-Interface®) Max. total power consumption from AS-Interface® power supply unit (30 V): 190 mA |
| Efficiency | 98 % (η) |
| Rated control voltage (Uc) | 24 V DC (-15 %/+20 %, external via AS-Interface® plug) 230/277 V AC (external brake 50/60 Hz) |
| Supply frequency | 50/60 Hz |
| Leakage current at ground IPE - max | 3.5 mA |
| Mains voltage - min | 380 V |
| Nominal output current I2N | 5.6 A |
| Number of HW-interfaces (industrial ethernet) | 0 |
| Number of HW-interfaces (other) | 1 |
| Number of HW-interfaces (parallel) | 0 |
| Number of HW-interfaces (RS-232) | 0 |
| Number of HW-interfaces (RS-422) | 0 |
| Number of HW-interfaces (RS-485) | 1 |
| Number of HW-interfaces (serial TTY) | 0 |
| Number of HW-interfaces (USB) | 0 |
| Number of interfaces (PROFINET) | 0 |
| Number of outputs (analog) | 0 |
| Output at linear load at rated output voltage - max | 2.2 kW |
| Output at quadratic load at rated output voltage - max | 2.2 kW |
| Output frequency - max | 500 Hz |
| Output frequency - min | 0 Hz |
| Short-circuit protection (external output circuits) | Type 1 coordination via the power bus' feeder unit, Main circuit |
| Shock resistance | 15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms, Half-sinusoidal shock 11 ms, 1000 shocks per shaft |
| Switching frequency | 8 kHz, 4 - 32 kHz adjustable, fPWM, Power section, Main circuit |
| Rated operational current (Ie) | 5.6 A at 150% overload (at an operating frequency of 8 kHz and an ambient air temperature of +40 °C) |
| Rated operational voltage | 400 V AC, 3-phase 480 V AC, 3-phase |
| Vibration | Resistance: 10 - 150 Hz, Oscillation frequency Resistance: According to IEC/EN 60068-2-6 Resistance: 57 Hz, Amplitude transition frequency on acceleration Resistance: 6 Hz, Amplitude 0.15 mm |
| Heat dissipation at current/speed | 36.6 W at 25% current and 0% speed 38.1 W at 25% current and 50% speed 42 W at 50% current and 0% speed 42.5 W at 50% current and 90% speed 44.2 W at 50% current and 50% speed 55.9 W at 100% current and 0% speed 58.3 W at 100% current and 90% speed 60.4 W at 100% current and 50% speed |
| Característica | Valor |
|---|---|
| Tensão de rede (intervalo) (EF006780) | 380 V |
| Frequência da rede (standard) (EF006783) | 50/60 Hz |
| Número de fases de entrada (EF007117) | 3 |
| Número de fases de lançamento (EF006998) | 3 |
| Frequência de saída max. (EF007350) | 500 Hz |
| Máx. voltagem de saída (EF009560) | 500 V |
| Corrente nominal de saída I2N (EF009561) | 5.6 A |
| Máx. saída com carga quadrática na tensão de saída nominal (EF007366) | 2.2 kW |
| Máx. saída com carga linear à tensão de saída nominal (EF007364) | 2.2 kW |
| Consumo (potência em VA) (EF000346) | 58 W |
| Tolerância de frequência relativa da rede simétrica (EF007454) | 10 % |
| Tolerância de tensão relativa da rede simétrica (EF007453) | 10 % |
| Número de saídas analógicas (EF001995) | 0 |
| Número de entradas analógicas (EF001994) | 0 |
| Número de saídas digitais (EF001993) | 0 |
| Número de entradas digitais (EF001992) | 4 |
| Com unidade de controlo (EF001538) | Sim |
| Aplicação em área industrial permitida (EF007294) | Sim |
| Aplicação na área doméstica e comercial permitida (EF007295) | Sim |
| Suporta o protocolo TCP/IP (EF003050) | Não |
| Suporta o protocolo PROFIBUS (EF003052) | Não |
| Suporta o protocolo CAN (EF003053) | Não |
| Suporta o protocolo INTERBUS (EF003054) | Não |
| Suporta o protocolo ASI (EF003051) | Sim |
| Suporta o protocolo KNX (EF003055) | Não |
| Suporta o protocolo MODBUS (EF003057) | Não |
| Suporta o protocolo Data-Highway (EF003058) | Não |
| Suporta o protocolo DeviceNet (EF003059) | Não |
| Suporta o protocolo SUCONET (EF003060) | Não |
| Suporta protocolo LON (EF003017) | Não |
| Suporta o protocolo PROFINET IO (EF007525) | Não |
| Suporta o protocolo PROFINET CBA (EF007524) | Não |
| Suporta o protocolo SERCOS (EF006657) | Não |
| Suporta o protocolo o Foundation Fieldbus (EF007522) | Não |
| Suporta o protocolo Ethernet/IP (EF007521) | Não |
| Protocolo de suporte à segurança da interface AS no trabalho (EF007519) | Não |
| Suporta o protocolo DeviceNet Safety (EF007520) | Não |
| Suporta o protocolo INTERBUS-Safety (EF006662) | Não |
| Suporta o protocolo PROFIsafe (EF007526) | Não |
| Suporta o protocolo SafetyBUS p (EF007527) | Não |
| Suporta o protocolo BACnet (EF011944) | Não |
| Suporta o protocolo outros sistemas de barramento (EF003062) | Não |
| Número de interfaces industriais HW Ethernet industrial (EF003020) | 0 |
| Número de interfaces PROFINET (EF006932) | 0 |
| Número de interfaces HW RS-232 (EF003021) | 0 |
| Número de interfaces HW RS-422 (EF003022) | 0 |
| Número de interfaces HW RS-485 (EF003023) | 1 |
| Número de interfaces HW de série TTY (EF003024) | 0 |
| Número de interfaces HW USB (EF003025) | 0 |
| Número de interfaces HW paralelas (EF003026) | 0 |
| Número de interfaces HW outras (EF003027) | 1 |
| Com interface ótica (EF003028) | Não |
| Com conexão ao PC (EF006107) | Sim |
| Resistência à rutura integrada (EF007293) | Sim |
| Possível operação em 4 quadrantes (EF006803) | Sim |
| Tipo de conversor (EF006978) | Conversor U |
| Grau de proteção (IP) (EF005474) | IP65 |
| Grau de proteção (NEMA) (EF011959) | 12 |
| Altura (EF000040) | 270 mm |
| Largura (EF000008) | 220 mm |
| Profundidade (EF000049) | 157 mm |
