RASP5-4421PNT-412R110S1 198993 Y7-198993 EATON ELECTRIC Conversor de frequência, 4,3 A, 1,5 kW, 4 entradas d..
RASP5-4421PNT-412R110S1
198993
Y7-198993
EATON-MOELLER

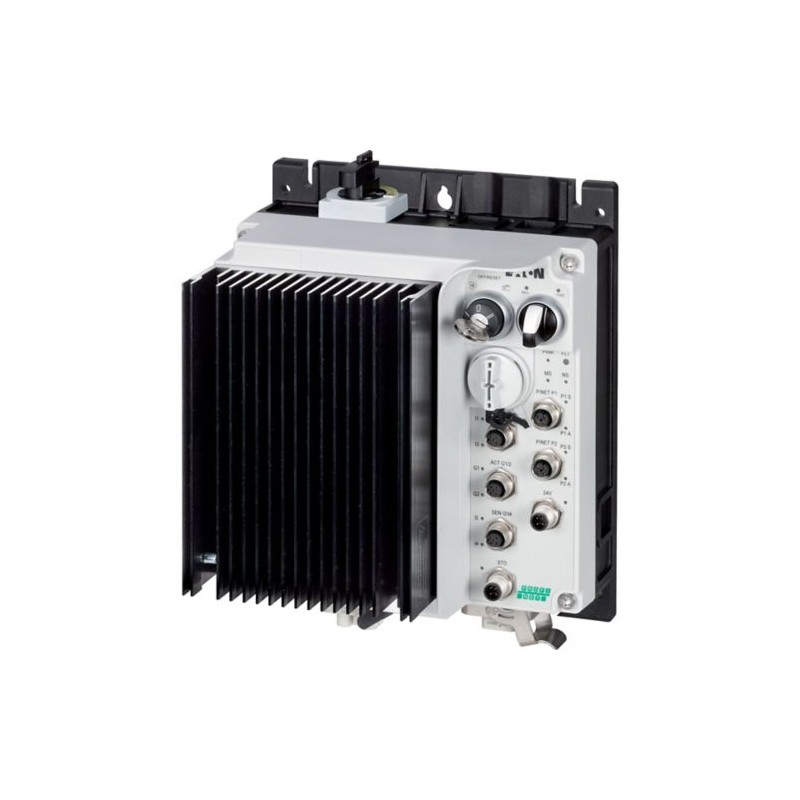

Conversor de frequência, 4,3 A, 1,5 kW, 4 entradas de sensor, 2 saídas
Eaton Moeller® series Rapid Link - Speed controllers, 4.3 A, 1.5 kW, Sensor input 4, Actuator output 2, 180/207 V DC, PROFINET, HAN Q4/2, with manual override switch, with braking resistance, STO (Safe Torque Off)
Acionadores Rapid Link
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲Especificações gerais
| Product Name | Eaton Rapid Link Speed controller |
| Catalog Number | 198993 |
| EAN | 4015081970513 |
| Product Length/Depth | 157 mm |
| Product Height | 270 mm |
| Product Width | 220 mm |
| Product Weight | 3.63 kg |
| Certifications | RoHS UL 61800-5-1 UL approval IEC/EN 61800-5-1 CE |
| Catalog Notes |
|
| Model Code | RASP5-4421PNT-412R110S1 |
Especificações do produto
| Features | Parameterization: Fieldbus Parameterization: drivesConnect mobile (App) Parameterization: Keypad Parameterization: drivesConnect |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Fitted with: | Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation Braking resistance Control unit Internal DC link Selector switch (Positions: REV - OFF - FWD) PTC thermistor monitoring 2 Actuator outputs PC connection Breaking resistance Manual override switch Key switch position HAND IGBT inverter Key switch position AUTO Key switch position OFF/RESET Thermo-click with safe isolation |
| Climatic proofing | < 95 %, no condensation In accordance with IEC/EN 50178 |
| Operating mode | U/f control Sensorless vector control (SLV) Synchronous reluctance motors BLDC motors PM and LSPM motors |
| Rated impulse withstand voltage (Uimp) | 2000 V |
| Altitude | Above 1000 m with 1 % performance reduction per 100 m Max. 2000 m |
| Application in domestic and commercial area permitted | Yes |
| Mains switch-on frequency | Maximum of one time every 60 seconds |
| Ambient operating temperature - max | 40 °C |
| Ambient operating temperature - min | -10 °C |
| Mains voltage - max | 480 V |
| Output voltage - max | 500 V |
| Relative symmetric net frequency tolerance | 10 % |
| Relative symmetric net voltage tolerance | 10 % |
| Ambient storage temperature - max | 70 °C |
| Ambient storage temperature - min | -40 °C |
| Application in industrial area permitted | Yes |
| Mains voltage tolerance | 380 - 480 V (-10 %/+10 %, at 50/60 Hz) |
| Product category | Speed controller |
| Protection | Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4) |
| Resolution | 0.1 Hz (Frequency resolution, setpoint value) |
| Switch-on threshold for the braking transistor | 765 VDC |
| Mounting position | Vertical |
| Rated conditional short-circuit current (Iq) | 10 kA |
| Overvoltage category | III |
| Communication interface | PROFINET, optional |
| Connection | Plug type: HAN Q4/2 |
| Converter type | U converter |
| Degree of protection | NEMA 12 IP65 |
| Assigned motor power at 460/480 V, 60 Hz, 3-phase | 2 HP |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Input current ILN at 150% overload | 4.1 A |
| Mains current distortion | 120 % |
| Protocol | PROFINET IO |
| Overload current | For 60 s every 600 s At 40 °C |
| Overload current IL at 150% overload | 6.5 A |
| Rated frequency - max | 66 Hz |
| Rated frequency - min | 45 Hz |
| Rated operational power at 380/400 V, 50 Hz, 3-phase | 1.5 kW |
| Assigned motor current IM at 400 V, 50 Hz, 150% overload | 4.3 A |
| Assigned motor current IM at 440 - 480 V, 60 Hz, 150% overload | 4.3 A |
| System configuration type | Center-point earthed star network (TN-S network) AC voltage Phase-earthed AC supply systems are not permitted. |
| Braking current | ≤ 0.6 A (max. 6 A for 120 ms), Actuator for external motor brake |
| Electromagnetic compatibility | 1st and 2nd environments (according to EN 61800-3) |
| Current limitation | Adjustable, motor, main circuit 0.4 - 4.3 A, motor, main circuit |
| Braking torque | Adjustable to 100 % (I/Ie), DC - Main circuit ≤ 30 % (I/Ie) |
| Braking voltage | 280/207 V DC -15 % / +10 %, Actuator for external motor brake |
| Cable length | C1 ≤ 1 m, maximum motor cable length C2 ≤ 5 m, maximum motor cable length C3 ≤ 25 m, maximum motor cable length |
| Functions | For actuation of motors with mechanical brake STO (Safe Torque Off) 4-quadrant operation possible Brake chopper with braking resistance for dynamic braking 1 potentiometer speed 3 fixed speeds |
| Delay time | < 10 ms, Off-delay < 10 ms, On-delay |
| Number of inputs (analog) | 0 |
| Number of inputs (digital) | 4 |
| Radio interference class | C2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C1: for conducted emissions only |
| Number of outputs (digital) | 2 |
| Starting current - max | 200 %, IH, max. starting current (High Overload), For 2 seconds every 20 seconds, Power section |
| Number of phases (input) | 3 |
| Number of phases (output) | 3 |
| Power consumption | 46 W |
| Interfaces | Number of slave addresses: 31 (AS-Interface®) Specification: S-7.4 (AS-Interface®) Max. total power consumption from AS-Interface® power supply unit (30 V): 250 mA |
| Efficiency | 98 % (η) |
| Rated control voltage (Uc) | 180/207 V DC (external brake 50/60 Hz) 24 V DC (-15 %/+20 %, external via AS-Interface® plug) |
| Supply frequency | 50/60 Hz |
| Leakage current at ground IPE - max | 3.5 mA |
| Mains voltage - min | 380 V |
| Nominal output current I2N | 4.3 A |
| Number of HW-interfaces (industrial ethernet) | 0 |
| Number of HW-interfaces (other) | 0 |
| Number of HW-interfaces (parallel) | 0 |
| Number of HW-interfaces (RS-232) | 0 |
| Number of HW-interfaces (RS-422) | 0 |
| Number of HW-interfaces (RS-485) | 1 |
| Number of HW-interfaces (serial TTY) | 0 |
| Number of HW-interfaces (USB) | 0 |
| Number of interfaces (PROFINET) | 2 |
| Number of outputs (analog) | 0 |
| Output at linear load at rated output voltage - max | 1.5 kW |
| Output at quadratic load at rated output voltage - max | 1.5 kW |
| Output frequency - max | 500 Hz |
| Output frequency - min | 0 Hz |
| Short-circuit protection (external output circuits) | Type 1 coordination via the power bus' feeder unit, Main circuit |
| Shock resistance | 15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms, Half-sinusoidal shock 11 ms, 1000 shocks per shaft |
| Switching frequency | 8 kHz, 4 - 32 kHz adjustable, fPWM, Power section, Main circuit |
| Rated operational current (Ie) | 4.3 A at 150% overload (at an operating frequency of 8 kHz and an ambient air temperature of +40 °C) |
| Rated operational voltage | 400 V AC, 3-phase 480 V AC, 3-phase |
| Vibration | Resistance: 57 Hz, Amplitude transition frequency on acceleration Resistance: 6 Hz, Amplitude 0.15 mm Resistance: According to IEC/EN 60068-2-6 Resistance: 10 - 150 Hz, Oscillation frequency |
| Heat dissipation at current/speed | 32.3 W at 25% current and 0% speed 33.2 W at 25% current and 50% speed 35.2 W at 50% current and 90% speed 36.2 W at 50% current and 0% speed 37.6 W at 50% current and 50% speed 46.3 W at 100% current and 90% speed 48.7 W at 100% current and 0% speed 48.7 W at 100% current and 50% speed |
