FRCMM-40/2/003-G/A-NA-110 167694 Y7-167694 EATON ELECTRIC PDC-TBD6252 RCD-NA FRCmM
FRCMM-40/2/003-G/A-NA-110
167694
Y7-167694
EATON-MOELLER
PDC-TBD6252 RCD-NA FRCmM

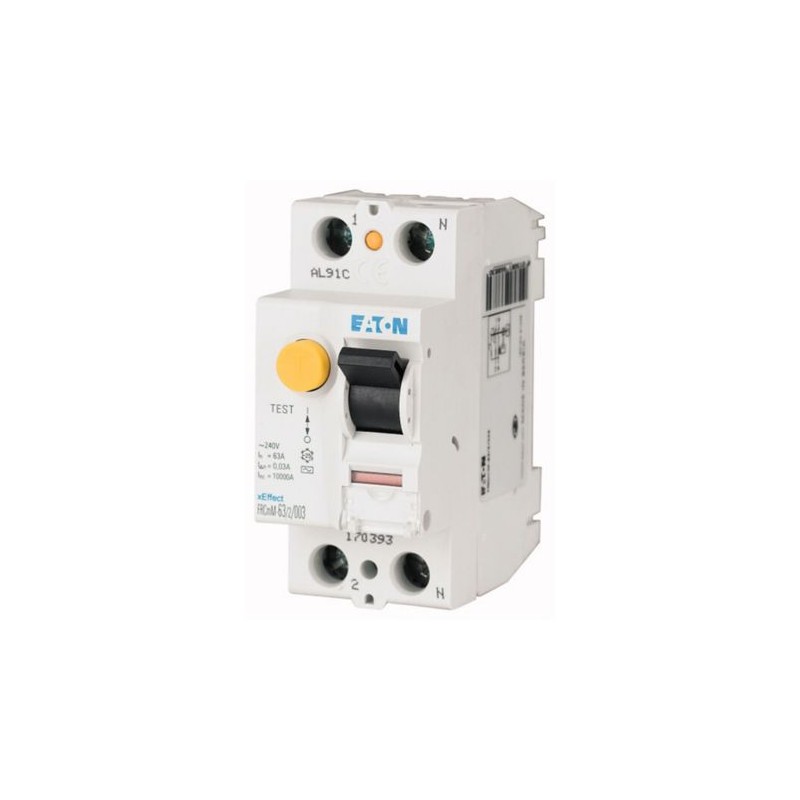

diferencial diferencial FRCMM-NA, 40A, 2p, 30mA, classe G/A, 110V

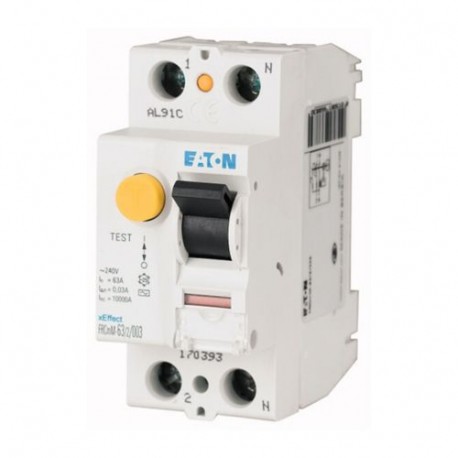

Eaton Moeller series xEffect - FRCmM-NA RCCB. FRCmM-NA-110, 2 pole, In: 40 A, Icn: 10 with back-up fuse kA, IΔN: 0.03 A, 110-V systems
FRCmM-NA-110 disjuntor diferencial, 2 polos, Corrente nominal In: 40 A, Resistência nominal a curtos-circuitos Icn: 10 com fusível de reserva kA, Corrente nominal de falha IΔN: 0,03 A, Aparelhagem para sistemas de 110 V
Disjuntores, fusíveis > Disjuntor de corrente residual (RCCB)
Aparelhagem Modular - Industrial
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller series xEffect - FRCmM-NA RCCB
Catalog Number
167694
EAN
4015081642366
Product Length/Depth
80 mm
Product Height
71 mm
Product Width
35 mm
Product Weight
0.22 kg
Compliances
RoHS conform
Certifications
UL 1053
IEC/EN 61008
ÖVE E 8601
EN45545-2
IEC 61373
IEC/EN 61008
ÖVE E 8601
EN45545-2
IEC 61373
Catalog Notes
Additionally protects against special forms of residual pulsating DC which have not been smoothed.
Model Code
FRCMM-40/2/003-G/A-NA-110
Programa de entrega
Application
Switchgear for 110-V systems
Number of poles
Two-pole
Tripping time
10 ms delay at 50 Hz
8 ms delay at 60 Hz
Short time-delayed
8 ms delay at 60 Hz
Short time-delayed
Amperage Rating
40 A
Rated short-circuit strength
10 kA with back-up fuse
5 kA (UL, as per CSA)
5 kA (UL, as per CSA)
Fault current rating
30 mA
Sensitivity type
Pulse-current sensitive
Impulse withstand current
3 kA (8/20 μs) surge-proof
Type
Dados técnicos - elétricos
Voltage rating (IEC/EN 60947-2)
110/190 V
Voltage rating (UL)
208/120 V, 60 Hz
Rated operational voltage (Ue) - max
110 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Overvoltage tested - max
530 V
Rated fault current - min
0.03 A
Rated fault current - max
0.03 A
Frequency rating
50 Hz / 60 Hz
Short-circuit rating
Max. admissible back-up fuse: 63 A gG/gL, 70 A class J fuse (UL)
Leakage current type
A
Rated residual making and breaking capacity
500 A
Admissible back-up fuse overload - max
40 A gG/gL
Rated short-time withstand current (Icw)
10 kA
Surge current capacity
3 kA
Pick-up current
22 mA
Test circuit range
100 V AC - 121 V AC, 94 V AC - 132 V AC (UL)
Pollution degree
2
Lifespan, electrical
4000 operations
Dados técnicos - mecânicos
Frame
45 mm
Width in number of modular spacings
2
Built-in width (number of units)
35 mm (2 SU)
Built-in depth
70.5 mm
Mounting Method
Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715
DIN rail
DIN rail
Mounting position
As required
Degree of protection
IP20
IP20, IP40 with suitable enclosure
IP20, IP40 with suitable enclosure
Status indication
White / blue
Terminals (top and bottom)
Lift terminals
Terminal capacity (solid wire)
1.5 mm² - 35 mm²
Connectable conductor cross section (solid-core) - min
1.5 mm²
Connectable conductor cross section (solid-core) - max
35 mm²
Terminal capacity (stranded cable)
16 mm² (2x)
Connectable conductor cross section (multi-wired) - min
1.5 mm²
Connectable conductor cross section (multi-wired) - max
16 mm²
Terminal capacity (cable)
M5 (with cross-recessed screw as defined in EN ISO 4757-Z2, PZ2)
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Contact position indicator color
Red / green
Lifespan, mechanical
10000 operations
Permitted storage and transport temperature - min
-35 °C
Permitted storage and transport temperature - max
60 °C
Ambient humdity range
5 - 95 %
Climatic proofing
25-55 °C / 90-95% relative humidity according to IEC 60068-2
Verificação do design de acordo com a norma IEC/EN 61439 - dados técnicos
Rated operational current for specified heat dissipation (In)
40 A
Heat dissipation per pole, current-dependent
3.9 W
Equipment heat dissipation, current-dependent
7.8 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
40 °C
Verificação do design de acordo com a norma IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Informações adicionais
Features
Residual current circuit breaker
Additional equipment possible
Additional equipment possible
Fitted with:
Interlocking device
Functions
Short-time delayed tripping
Special features
- FRCmM-NA-110
- Residual current circuit breakers
- Type G/A (ÖVE E 8601)
Used with
FRCmM-NA-110
Type G/A (�VE E 8601)
Residual current circuit breakers
Type G/A (�VE E 8601)
Residual current circuit breakers
| Característica | Valor |
|---|---|
| Número de polos (EF001391) | 2 |
| Tensão especificada de funcionamento (EF000228) | 110 V |
| Corrente nominal especificada (EF000227) | 40 A |
| Sensibilidade/Corrente nominal de defeito (EF002358) | 0.03 A |
| Tensão nominal de isolamento Ui (EF001366) | 440 V |
| Tensão estipulada suportável ao choque (Uimp) (EF011980) | 4 kV |
| Método de montagem (EF000003) | Calha DIN |
| Tipo de corrente de defeito diferencial (EF002560) | A |
| Proteção seletiva (EF002561) | Não |
| Curto retardamento (EF003604) | Sim |
| Resistência a curto-circuito (Icw) (EF002562) | 10 kA |
| Resistência contra sobreintensidades (EF002564) | 3 kA |
| Tipo de tensão (EF000187) | AC |
| Com dispositivo de bloqueio (EF007385) | Sim |
| Frequência de funcionamento (EF005455) | 50/60 Hz |
| Possibilidade de equipamento adicional (EF008148) | Sim |
| Grau de proteção (IP) (EF005474) | IP20 |
| Largura em número de módulos (EF002950) | 2 |
| Profundidade incorporada (EF000218) | 70.5 mm |
| Temperatura ambiente durante a operação (EF007515) | -25 °C |
| Grau de poluição (EF002570) | 2 |
| Secção da ligação de cabo flexível (EF007343) | 1.5 mm² |
| Secção da ligação de cabo rígido (EF007337) | 1.5 mm² |
| Número RAL (semelhante) (EF003882) | 7035 |
| Antideflagrante (EF004663) | Não |
