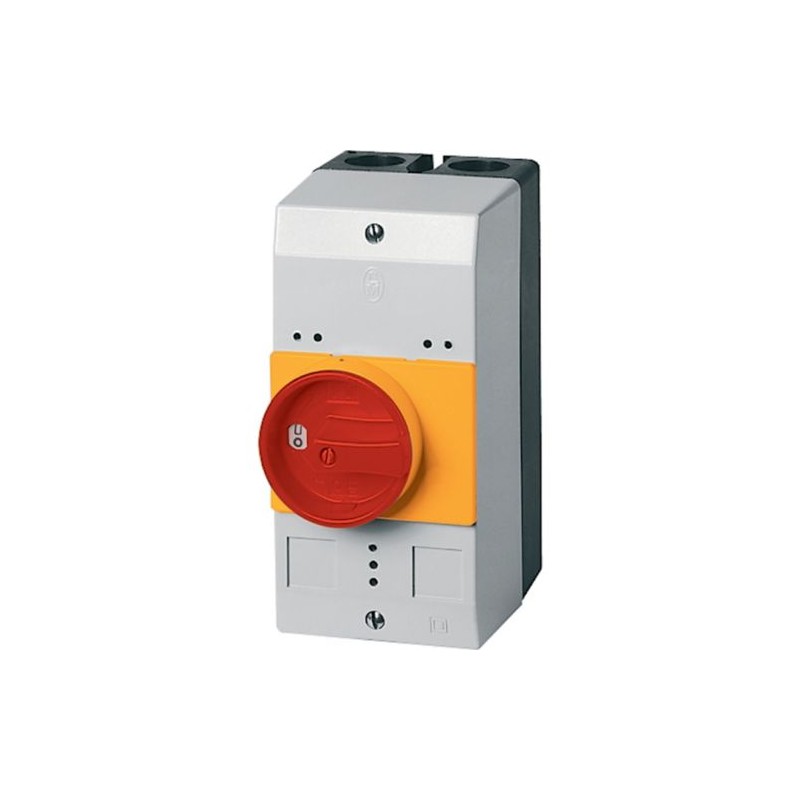

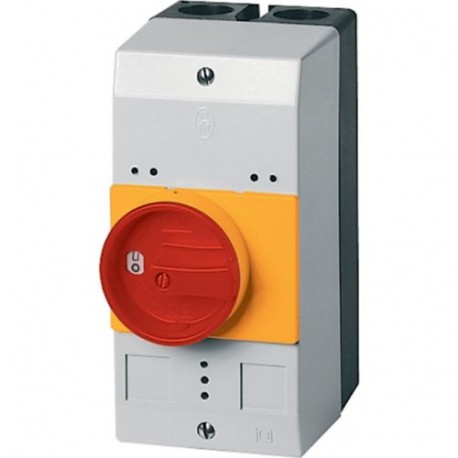

CI-PKZ0-GRVM 263525 Y7-263525 EATON ELECTRIC Insulated enclosure, IP55 x, rotary handle red yellow, for PKZ0 Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

CI-PKZ0-GRVM 263525 Y7-263525 EATON ELECTRIC Insulated enclosure, IP55 x, rotary handle red yellow, for PKZ0

CI-PKZ0-GRVM

263525

Y7-263525

EATON-MOELLER

Insulated enclosure, IP55_x, rotary handle red yellow, for PKZ0

Gabinete isolado de superfície HxLxP=160x97x80mm IP55 para PKZ0 com

Eaton Moeller® series CI Insulated enclosure, IP55_x, rotary handle red yellow, for PKZ0 CI-PKZ0-GRVM

Mais detalhes


Aparelhos elétricos de baixa tensão > Caixa vazia para aparamenta

Chaves de proteção do motor

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $24.06
Preço unitário: $24.06
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series CI Insulated enclosure
Catalog Number
263525
EAN
4015082635251
Product Length/Depth
126 mm
Product Height
158 mm
Product Width
80 mm
Product Weight
0.2 kg
Compliances
CE
Model Code
CI-PKZ0-GRVM

Especificações do produto

10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Red-yellow rotary knob, for use as EMERGENCY STOP switch (according to EN 60204)
PE(N) terminal
Used with
+ U or A, +L-PKZ0 (2 units), PKZM0-… and VHI
Enclosure material
Plastic
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
10 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Accessories
Degree of protection
IP55
NEMA Other
Model
Surface mounting
Suitable for
Emergency stop
Knockouts
Hard mirror with cable entry knockouts (can be cut out)
2 x M25 (cable entry knockout with thread at the top)
2 x M25 (cable entry knockout with thread at the bottom)
2 x M20 (cable entry knockouts at the rear)

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
CI-PKZ0-GRVM Y7-263525 263525 ES_263525.pdf 3 Mbytes CI-PKZ0-GRVM Y7-263525 263525 ES_263525.pdf
