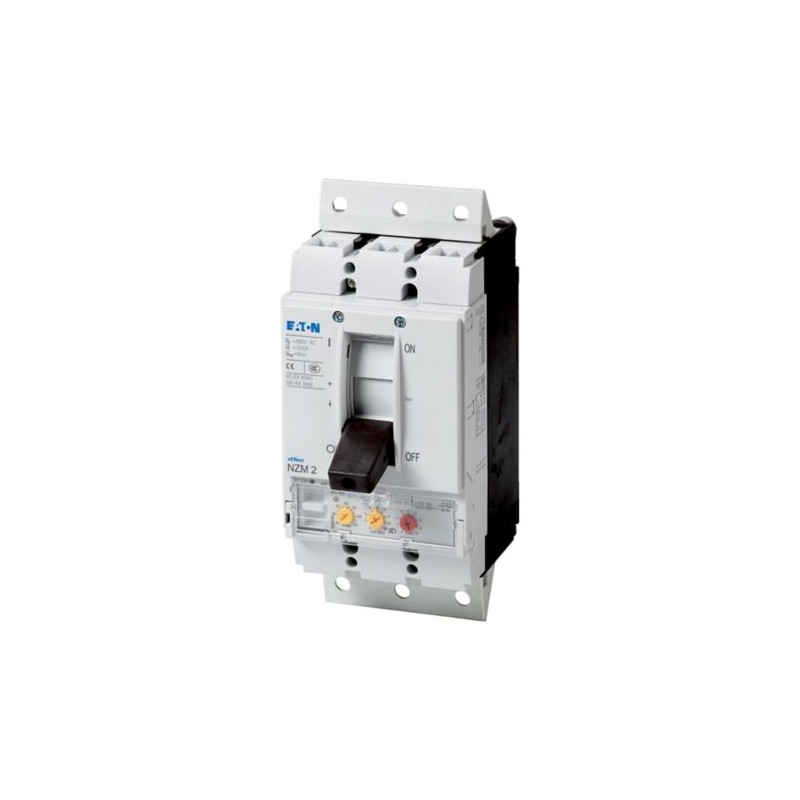

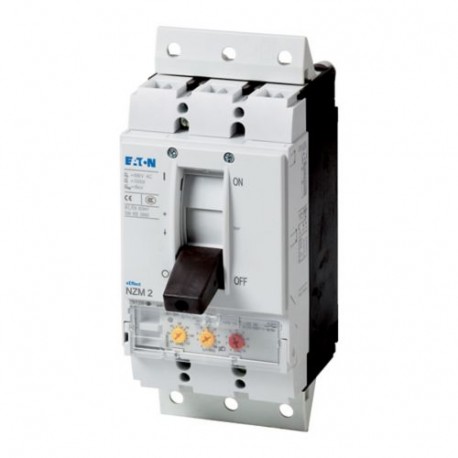

NZML2-ME140-SVE 169026 Y7-169026 EATON ELECTRIC Interruptor automático NZM, 4P, 140A, enchufable-NZML2-ME140..
NZML2-ME140-SVE
169026
Y7-169026
EATON-MOELLER
Interruptor automático NZM, 4P, 140A, enchufable-NZML2-ME140-SVE
Int. Auto NZM, 4P, 140A, Plug-in
Eaton Moeller series NZM - Molded Case Circuit Breaker. Circuit-breaker, 3 p, 140A, plug-in module
Os disjuntores NZM da série cobrem todos os casos de aplicação com apenas quatro tamanhos compactos e são adequados para o mercado de IEC. A instalação é sempre flexível graças ao uso de grupos de funções modulares.
Aparelhos elétricos de baixa tensão > Disjuntor de proteção do motor
NZM Molded Case Automatic Switches
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller series NZM molded case circuit breaker electronic
Catalog Number
169026
EAN
4015081655199
Product Length/Depth
180 mm
Product Height
245 mm
Product Width
105 mm
Product Weight
2.895 kg
Compliances
RoHS conform
Certifications
IEC
IEC/EN 60947
IEC/EN 60947
Model Code
NZML2-ME140-SVE
Dados técnicos - elétricos
Voltage rating
690 V - 690 V
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
134 A (400 V AC-3)
134 A (690 V AC-3)
134 A (690 V AC-3)
Rated short-time withstand current (t = 0.3 s)
1.3 kA
Rated short-time withstand current (t = 1 s)
1.3 kA
Amperage Rating
140 A
Instantaneous current setting (Ii) - min
280 A
Instantaneous current setting (Ii) - max
1960 A
Overload current setting (Ir) - min
70 A
Overload current setting (Ir) - max
140 A
Short-circuit release non-delayed setting - min
280 A
Short-circuit release non-delayed setting - max
1960 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
100 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
80 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
220 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
176 kA
Rated operating power at AC-3, 230 V
140 kW
Rated operating power at AC-3, 400 V
68 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
6500 operations at 400 V AC-3
6500 operations at 415 V AC-3
10000 operations at 400 V AC-1
10000 operations at 415 V AC-1
5000 operations at 690 V AC-3
7500 operations at 690 V AC-1
6500 operations at 415 V AC-3
10000 operations at 400 V AC-1
10000 operations at 415 V AC-1
5000 operations at 690 V AC-3
7500 operations at 690 V AC-1
Direction of incoming supply
As required
Dados técnicos - comunicação
Rated impulse withstand voltage (Uimp) at auxiliary contacts
6000 V
Rated impulse withstand voltage (Uimp) at main contacts
8000 V
Rated operational current
134 A (400 V AC-3)
134 A (690 V AC-3)
134 A (690 V AC-3)
Rated short-time withstand current (t = 0.3 s)
1.3 kA
Rated short-time withstand current (t = 1 s)
1.3 kA
Amperage Rating
140 A
Instantaneous current setting (Ii) - min
280 A
Instantaneous current setting (Ii) - max
1960 A
Overload current setting (Ir) - min
70 A
Overload current setting (Ir) - max
140 A
Short-circuit release non-delayed setting - min
280 A
Short-circuit release non-delayed setting - max
1960 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz
150 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz
130 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 525 V, 50/60 Hz
100 kA
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 690 V, 50/60 Hz
80 kA
Rated short-circuit making capacity Icm at 240 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 400/415 V, 50/60 Hz
330 kA
Rated short-circuit making capacity Icm at 440 V, 50/60 Hz
286 kA
Rated short-circuit making capacity Icm at 525 V, 50/60 Hz
220 kA
Rated short-circuit making capacity Icm at 690 V, 50/60 Hz
176 kA
Rated operating power at AC-3, 230 V
140 kW
Rated operating power at AC-3, 400 V
68 kW
Short-circuit total breaktime
< 10 ms
Electrical connection type of main circuit
Screw connection
Isolation
500 V AC (between auxiliary contacts and main contacts)
300 V AC (between the auxiliary contacts)
300 V AC (between the auxiliary contacts)
Number of operations per hour - max
120
Handle type
Rocker lever
Utilization category
A (IEC/EN 60947-2)
Overvoltage category
III
Pollution degree
3
Lifespan, electrical
6500 operations at 400 V AC-3
6500 operations at 415 V AC-3
10000 operations at 400 V AC-1
10000 operations at 415 V AC-1
5000 operations at 690 V AC-3
7500 operations at 690 V AC-1
6500 operations at 415 V AC-3
10000 operations at 400 V AC-1
10000 operations at 415 V AC-1
5000 operations at 690 V AC-3
7500 operations at 690 V AC-1
Direction of incoming supply
As required
Dados técnicos - mecânicos
Mounting Method
Withdrawable
Built-in device plug-in technique
Built-in device plug-in technique
Degree of protection
IP20 (basic degree of protection, in the operating controls area)
IP20
IP20
Degree of protection (IP), front side
IP40 (with insulating surround)
IP66 (with door coupling rotary handle)
IP66 (with door coupling rotary handle)
Degree of protection (terminations)
IP00 (terminations, phase isolator and strip terminal)
IP10 (tunnel terminal)
IP10 (tunnel terminal)
Protection against direct contact
Finger and back-of-hand proof to VDE 0106 part 100
Shock resistance
20 g (half-sinusoidal shock 20 ms)
Switch off technique
Electronic
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Lifespan, mechanical
20000 operations
| Característica | Valor |
|---|---|
| Configuração de corrente da proteção contra sobrecargas (EF002336) | 70 A |
| Faixa de ajuste da disparo em curto-circuito não retardada (EF007131) | 280 A |
| Com proteção térmica (EF006233) | Sim |
| Sensível à falha de fase (EF007400) | Sim |
| Técnica de disparo (EF007007) | Eletrónico |
| Tensão nominal de operação (EF001435) | 690 V |
| Corrente permanente nominal Iu (EF001389) | 140 A |
| Potência de operação nominal em AC-3, 230 V (EF007025) | 140 kW |
| Potência de operação nominal em AC-3, 400 V (EF001364) | 68 kW |
| Tipo de conexão elétrica do circuito principal (EF006819) | Ligação com parafuso |
| Tipo de elemento de controlo (EF006976) | Alavanca basculante |
| Construção do dispositivo (EF008240) | Técnica de conexão para dispositivo embutido |
| Com interruptor auxiliar integrado (EF001387) | Não |
| Com passagem de subtensão integrada (EF001390) | Não |
| Número de polos (EF001391) | 3 |
| Capacidade de interrupção nominal de curto-circuito Icu a 400 V, CA (EF007049) | 130 kA |
| Grau de proteção (IP) (EF005474) | IP20 |
| Altura (EF000040) | 245 mm |
| Largura (EF000008) | 105 mm |
| Profundidade (EF000049) | 180 mm |
