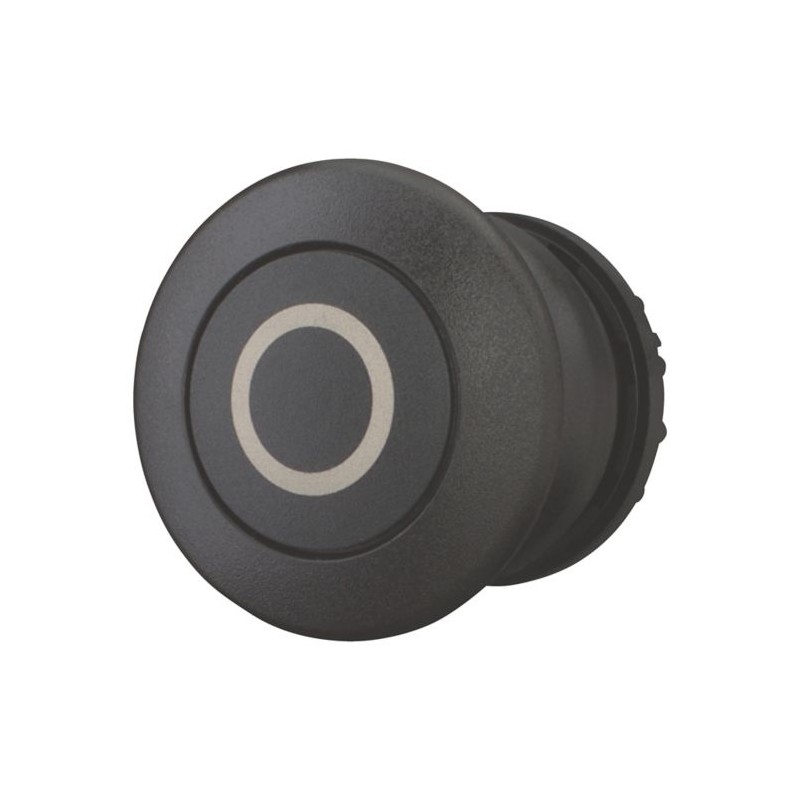

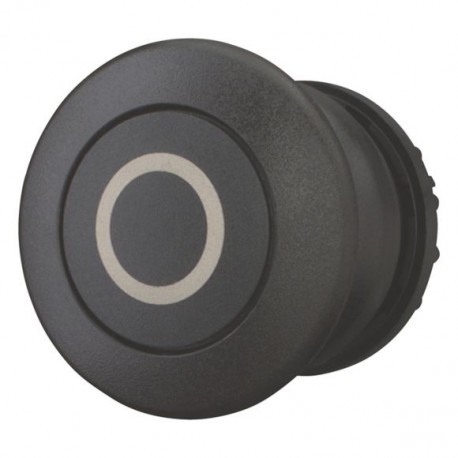

M22S-DRP-S-X0 216756 Y7-216756 EATON ELECTRIC M22S-DRP-S-X0Q botão cogumelo, Travamento, Preto Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22S-DRP-S-X0 216756 Y7-216756 EATON ELECTRIC M22S-DRP-S-X0Q botão cogumelo, Travamento, Preto

M22S-DRP-S-X0

216756

Y7-216756

EATON-MOELLER

M22S-DRP-S-X0Q botão cogumelo, Travamento, Preto

Empurrador de cogumelos 22 mm Interlocking Preto Inscrição: X0 Anel Preto

Eaton Moeller® series M22 Mushroom actuator, RMQ-Titan, Mushroom, maintained, Mushroom black, black, inscribed, Bezel: black

Atuador em forma de cogumelo, Gama de produtos: RMQ-Titan, Unidade única, Design: Seeta, mantido, Cor set-top: preto, Placa de botão: preta, inscrita, Grau de proteção: IP66, IP67, IP69K, Moldura: preta, Conexão SmartWire-DT: sim, com conexões SWD-RMQ, Dimensões frontais: 22 x 22, Função: manutenção, Instruções: A função de fixação/retorno da mola pode ser alterada no dispositivo, Padrões: IEC/EN 60947, VDE 0660

Mais detalhes


Aparelhos elétricos de baixa tensão > Elemento frontal para botão de cogumelo

Auxiliares de controle e sinalização

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $18.72
Preço unitário: $18.72
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series M22 Mushroom actuator
Catalog Number
216756
EAN
4015082167561
Product Length/Depth
37 mm
Product Height
43 mm
Product Width
37 mm
Product Weight
0.016 kg
Certifications
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
CSA
CSA Class No.: 3211-03
VDE 0660
CSA File No.: 012528
CE
IEC/EN 60947
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL
UL 508
UL File No.: E29184
DNV
GL
LR
Model Code
M22S-DRP-S-X0

Especificações do produto

Type
Mushroom-headed pushbutton
Actuator color
Black
Actuator function
Switching function latching
Maintained
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Front ring
Operating frequency
1800 Operations/h
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Connection to SmartWire-DT
Yes
With SWD-RMQ connections
Actuating force
5 N
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Ambient storage temperature - max
80 °C
Ambient storage temperature - min
-40 °C
Diameter cap
36.5 mm
Equipment heat dissipation, current-dependent Pvid
0 W
Force for positive opening - min
0 N
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Opening diameter
22.5 mm
Opening height
0 mm
Rated operational current for specified heat dissipation (In)
0 A
Bezel color
Black
Shock resistance
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Bezel material
Plastic
Design
Mushroom-shaped
Classical
Mounting position
As required
Degree of protection
IP67/IP69K
NEMA 4X, 13
Inscription
Inscribed
Front element type
Flat
Lens type
Round
Lifespan, mechanical
1,000,000 Operations (AC operated)
Static heat dissipation, non-current-dependent Pvs
0 W
Width opening
0 mm
Product category
RMQ-Titan
Size
Front dimensions: 22 x 22 mm
Supply voltage lamp
0 V
Unlocking method
None

ETIM for 216756 Low-voltage industrial controls and switchgear (EC001038)
Característica Valor
Colour button (EF000190) Black
Construction type lens (EF006253) Round
Diameter cap (EF001423) 36.5 mm
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 4X, 13
Type of button (EF001546) Flat
Suitable for lighting (EF001142) false
With lighting (EF003829) false
Supply voltage lamp (EF006522) 0 V
Switching function latching (EF007447) true
Spring-return (EF001407) false
With front ring (EF006014) true
Material front ring (EF005972) Plastic
Colour front ring (EF002429) Black
Suitable for emergency stop (EF001433) false
Unlocking method (EF001403) None

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON COMMAND INDICATION EN.pdf 24 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
M22S-DRP-S-X0 Y7-216756 216756 EN_289241.pdf 3 Mbytes M22S-DRP-S-X0 Y7-216756 216756 EN_289241.pdf
