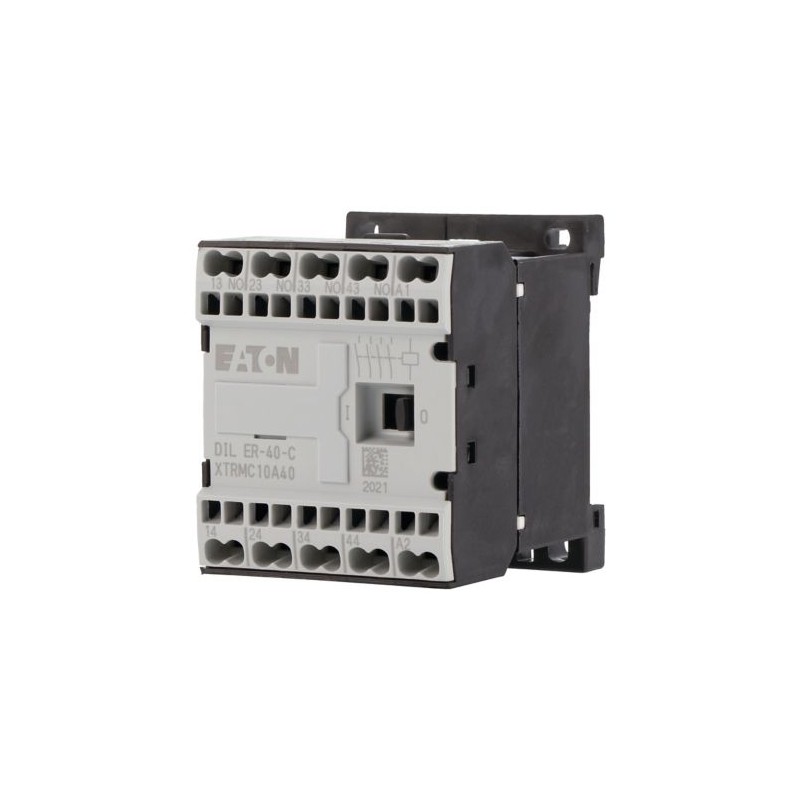

DILER-40-G-C(24VDC) 230241 Y7-230241 EATON ELECTRIC XTRMC10A40TD auxiliar Minicontactor, 4NO
DILER-40-G-C(24VDC)
230241
Y7-230241
EATON-MOELLER
XTRMC10A40TD auxiliar Minicontactor, 4NO
Conexão de Parafuso Mini-Contator Auxiliar 4 NO 48 V DC
Eaton Moeller® series DILER Contactor relay, 24 V DC, N/O = Normally open: 4 N/O, Spring-loaded terminals, DC operation
Relé do contator, Gama de produtos: Mini-contatores DILATAR, Aplicação: Relés do contator, Descrição: com contatos opostos entrelaçados, Técnica de conexão: Terminais com mola, Corrente nominal de operação Corrente térmica convencional de ar livre, 1 pólo Aberto a 50 °C: Ith = Ie= 10 A, Corrente nominal de operação AC-15 220 V 230 V 240 V: Ie= 6 A, 380 V 400 V 415 V: Ie= 3 A, Contactos N/O = Normalmente aberto: 4 N/O, Número de código e versão combinada Número distintivo: 40 E, Para utilização com: ... DILE-C, Tensão de atuação: 24 V DC, Tensão AC/DC: Operação DC, Grau de proteção: IP20, Instruções: Números de contato de acordo com EN 50011, Marcações de terminais de bobina de acordo com EN 50005, Combinação integrada de diodo e resistência, Potência nominal da bobina 2,6 W, Normas: IEC/EN 60947, EN 60947-5-1, VDE 0660, UL, CSA
Aparelhos elétricos de baixa tensão > Contator, relé
Contatores até 170A
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller® series DILER Control relay
Catalog Number
230241
EAN
4015082302412
Product Length/Depth
54 mm
Product Height
58 mm
Product Width
45 mm
Product Weight
0.206 kg
Certifications
EN 60947-5-1
UL 508
CSA File No.: 012528
VDE 0660
UL Category Control No.: NKCR
CSA
UL
CE
IEC/EN 60947-4-1
UL File No.: E29184
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
IEC/EN 60947
UL 508
CSA File No.: 012528
VDE 0660
UL Category Control No.: NKCR
CSA
UL
CE
IEC/EN 60947-4-1
UL File No.: E29184
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
IEC/EN 60947
Model Code
DILER-40-G-C(24VDC)
Funcionalidades e Funções
Features
Positive operating contacts to EN 60947-5-1 appendix L, including auxiliary contact module
Fitted with:
Interlocked opposing contacts
Geral
Application
Contactor relays
Lifespan, mechanical
20,000,000 Operations (DC operated)
Mounting method
DIN-rail/screw
Mounting position
As required (except vertical with terminals A1/A2 at the bottom)
Operating frequency
9000 Operations/h
Overvoltage category
III
Pollution degree
3
Product category
DILER Mini-contactors
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V AC
Shock resistance
10 g, N/O auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
8 g, N/C auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
8 g, N/C auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Voltage type
DC
Condições meteorológicas
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Ambient operating temperature (enclosed) - min
25 °C
Ambient operating temperature (enclosed) - max
40 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, cyclic, to IEC 60068-2-30
Capacidade dos terminais
Terminal capacity (flexible with ferrule)
2 x (1 - 2.5) mm²
1 x (1 - 2.5) mm²
1 x (1 - 2.5) mm²
Terminal capacity (solid/stranded AWG)
2 x (16 - 14)
1 x (16 - 14)
1 x (16 - 14)
Stripping length (main cable)
10 mm
Screwdriver size
0.6 x 3.5 mm, Spring-loaded terminals
Classificação elétrica
Rated operational voltage (Ue) at AC - max
600 V
Rated insulation voltage (Ui)
690 V
Rated operational current (Ie)
2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)
2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series)
10 A
2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series)
10 A
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
6 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
3 A
Rated operational current (Ie) at AC-15, 500 V
1.5 A
Safe isolation
300 V AC, Between coil and auxiliary contacts, According to EN 61140
300 V AC, Between auxiliary contacts, According to EN 61140
300 V AC, Between auxiliary contacts, According to EN 61140
Classificação de curto-circuito
Short-circuit protection rating
10 A fast, 500V, Maximum fuse, Short-circuit rating without welding, Contacts
Short-circuit protection rating without welding
6 A gG/gL, 500 V, Max. Fuse, Contacts
Capacidade de comutação
Switching capacity (auxiliary contacts, general use)
10 A, 600 V AC, (UL/CSA)
0.5 A, 250 V DC, (UL/CSA)
0.5 A, 250 V DC, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
P300, DC operated (UL/CSA)
A600, AC operated (UL/CSA)
A600, AC operated (UL/CSA)
Sistema magnético
Duty factor
100 %
Pick-up voltage
0.7 - 1.3 V DC x Uc (at 24 V: without auxiliary contact module and at ambient air temperature + 40 °C)
0.85 - 1.3 V DC x Uc
0.85 - 1.3 V DC x Uc
Power consumption (pick-up) at DC
2.3 W
Power consumption (sealing) at DC
2.3 W
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
24 V
Voltage tolerance
Smoothed DC, three-phase bridge rectifiers or smoothed double-wave rectification
Rated control supply voltage (Us) at DC - max
24 V
Switching time (DC operated, make contacts, closing delay) - min
26 ms
Switching time (DC operated, make contacts, closing delay) - max
35 ms
Switching time (DC operated, make contacts, opening delay) - min
15 ms
Switching time (DC operated, make contacts, opening delay) - max
25 ms
Switching time (DC operated, N/O, with auxiliary contact module, closing delay)
70 ms
Contactos
Code number
40E
Control circuit reliability
< 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
4
Verificação do design
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.4 W
Rated operational current for specified heat dissipation (In)
6 A
Static heat dissipation, non-current-dependent Pvs
2.3 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Característica | Valor |
|---|---|
| Tensão de alimentação de corrente nominal de 50 Hz AC (EF003978) | 0 V |
| Tensão de alimentação de corrente nominal de 60 Hz CA (EF003979) | 0 V |
| Tensão de alimentação de corrente nominal DC (EF003980) | 24 V |
| Tipo de tensão para atuação (EF008242) | DC |
| Corrente nominal de operação (EF007679) | 10 A |
| Corrente nominal de operação, 400 V (EF001378) | 3 A |
| Método de montagem (EF000003) | Calha DIN/de parafuso |
| Com indicação LED (EF005950) | Não |
| Adequado para operação manual (EF002978) | Não |
| Interface (EF000594) | Não |
| Número de contatos auxiliares como contato normalmente fechado (EF001377) | 0 |
| Número de contatos auxiliares como contato normalmente aberto (EF001376) | 4 |
| Núm. de contatos auxiliares normalmente fechados, com atraso de comutação (EF007281) | 0 |
| Número de contatos auxiliares como contato normalmente aberto, levando (EF007282) | 0 |
| Número de contatos auxiliares como contato de comutação (EF003531) | 0 |
| Tensão de operação de 50 Hz CA (EF008206) | 17 V |
| Tensão de operação AC 60 Hz (EF008207) | 17 V |
| Tensão de operação DC (EF008208) | 24 V |
| Tipo de tensão (tensão de operação) (EF005294) | AC/DC |
| Corrente estipulada do interruptor (EF006706) | 10 A |
| Tipo de conexão do circuito auxiliar (EF006820) | Conexão por terminal de mola |
| Largura (EF000008) | 45 mm |
| Altura (EF000040) | 58 mm |
| Profundidade (EF000049) | 54 mm |
