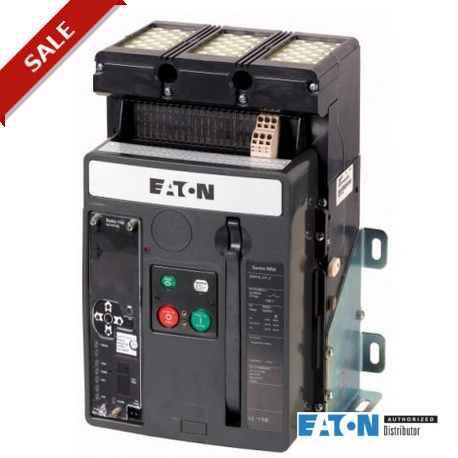

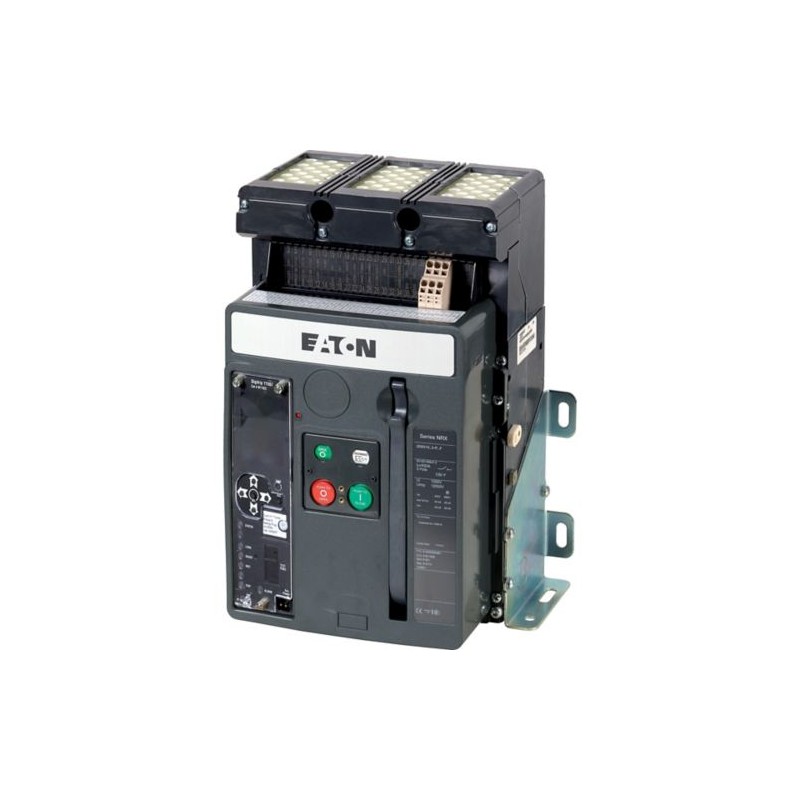

IZMX16H3-P06F 123441 EATON ELECTRIC interruptor automático, 3P, 630A, fixo
IZMX16H3-P06F
123441
EATON-MOELLER
interruptor automático, 3P, 630A, fixo
Disjuntor IZMX16 (disjuntores/interruptores-seccionadores de ar), 3 polos, Faixa de corrente: Até 4000 A, Corrente nominal = Corrente nominal ininterrupta ( In = Iu): 630 A, até 440 V 50/60 Hz ( Icu): 65 kA, até 440 V 50/60 Hz ( Ics): 50 kA, Desconexão por sobrecarga, mín. ( Ir): 315 A, Desconexão por sobrecarga, máx. ( Ir): 630 A, Tipo de instalação: Fixo, Padrão/Aprovação: IEC, Função de proteção: Proteção profissional
Aparelhos elétricos de baixa tensão > Interruptor para proteção de transformadores, geradores e sistemas
Home > EATON - MOELLER
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller series IZMX/INX circuit-breaker
Catalog Number
123441
EAN
4015081210466
Product Length/Depth
584 mm
Product Height
597 mm
Product Width
521 mm
Product Weight
18.715 kg
Compliances
IEC
IEC/EN 60947
IEC/EN 60947
Model Code
IZMX16H3-P06F
Delivery program
Type
Air circuit breakers/switch-disconnectorOpen circuit breaker
Frame
IZMX16
Number of poles
Three-pole
Amperage Rating
630 A
Release system
Electronic release
Technical data - electrical
Voltage rating at AC
690 V AC
Rated insulation voltage (Ui)
1000 V
Rated impulse withstand voltage (Uimp)
12 kV AC
Rated uninterrupted current (Iu)
630 A
Rated uninterrupted current (Iu) at 50°C
630 A
Rated uninterrupted current (Iu) at 60°C
630 A
Rated uninterrupted current (Iu) at 70°C
630 A
Rated short-time withstand current (t = 1 s)
42 kA
Overload release current setting - min
315 A
Overload release current setting - max
630 A
Short-circuit release delayed setting - min
630 A
Short-circuit release delayed setting - max
6300 A
Short-circuit release non-delayed setting
2 - 10 x Ir
Short-circuit release non-delayed setting - min
0 A
Short-circuit release non-delayed setting - max
7560 A
Adjustment range short-term delayed short-circuit release - min
1260 A
Adjustment range short-term delayed short-circuit release - max
6300 A
Adjustment range undelayed short-circuit release - min
1260 A
Adjustment range undelayed short-circuit release - max
7560 A
Rated short-circuit breaking capacity at 400 V, 50 Hz
65 kA
Rated short-circuit making capacity up to 440 V, 50/60 Hz
136 kA
Rated short-circuit making capacity up to 690 V, 50/60 Hz
88 kA
Closing delay via spring release
30 ms
Electrical connection type of main circuit
Rail connection
Number of standard mechanical operations per hour - max
60
Operating sequence up to 690 V, 50/60 Hz (IEC/EN 60947)
42 kA
Utilization category
B
Overvoltage category
III
Pollution degree
3
Direction of incoming supply
As required
Lifespan, electrical
10000 operations (switching cycles ON/OFF, with maintenance)
10000 operations (switching capacity)
10000 operations (switching capacity)
Technical data - mechanical
Device construction
Built-in device fixed built-in technique
Mounting Method
Fixed
Degree of protection
IP55 with protective cover
IP20
IP41 with door sealing frame
IP20
IP41 with door sealing frame
Protection
Professional protection
Number of auxiliary contacts (change-over contacts)
2
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Position of connection for main current circuit
Back side
Weight of fixed mounting version (3-pole)
19 kg
Weight of fixed mounting version (4-pole)
24 kg
Actuator type
Push button
Terminal capacity (copper bar)
5 mm x 50 mm (2x) for withdrawable units (black)
5 mm x 50 mm (2x) for fixed mounting (black)
5 mm x 50 mm (2x) for fixed mounting (black)
Lifespan, mechanical
20000 operations (switching capacity, with maintenance)
12500 switching cycles (ON/OFF)
12500 switching cycles (ON/OFF)
Design verification as per IEC/EN 61439 - technical data
Rated operational current for specified heat dissipation (In)
630 A
Equipment heat dissipation, current-dependent
36 W
Heat dissipation at rated current with fixed mounting
36 W
Ambient operating temperature details
Device with LCD-display -20 °C - 70 °C
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
70 °C
Ambient storage temperature - min
-25 °C
Ambient storage temperature - max
70 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Features
Motor drive optional
Fitted with:
Switched-off indicator
Special features
IZMX-DTP-PTM external voltage measuring module requiredsuitable for zone selectivitysuitable for communicationwith integrated system monitorwith integrated test possibilitywith graphic LCD color displayoptionally fittable by user with comprehensive accessoriesThese are values used in separate switchgear. The actual values will depend on the temperature around the circuit-breaker, which is influenced by the ambient temperature, the degree of protection (IP), the mounting height, the partitions, and any external ventilation. Depending on the specific switchgear design, this may result in derating, which can then be compensated for by increasing the cross-sectional area. Temperature rise tests in the specific switchgear can provide specific and detailed information.
Suitable for
Main conducting paths with 23 kA in IT electrical power networks up to U = 440 V
Used with
Air circuit breakers/switch-disconnector
Open circuit breaker
Open circuit breaker
| Característica | Valor |
|---|---|
| Rated permanent current Iu (EF001389) | 630 A |
| Rated voltage (EF003977) | None V |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) | 65 kA |
| Overload release current setting (EF002336) | 315 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1260 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1260 A |
| Power loss (EF005387) | None W |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Integrated earth fault protection (EF007296) | false |
| Type of electrical connection of main circuit (EF006819) | Rail connection |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | false |
| DIN rail (top hat rail) mounting optional (EF008904) | false |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 2 |
| With switched-off indicator (EF007006) | true |
| With integrated under voltage release (EF001390) | false |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Back side |
| Type of control element (EF006976) | Push button |
| Complete device with protection unit (EF008906) | false |
| Motor drive integrated (EF006697) | false |
| Motor drive optional (EF007386) | true |
| Degree of protection (IP) (EF005474) | IP20 |
