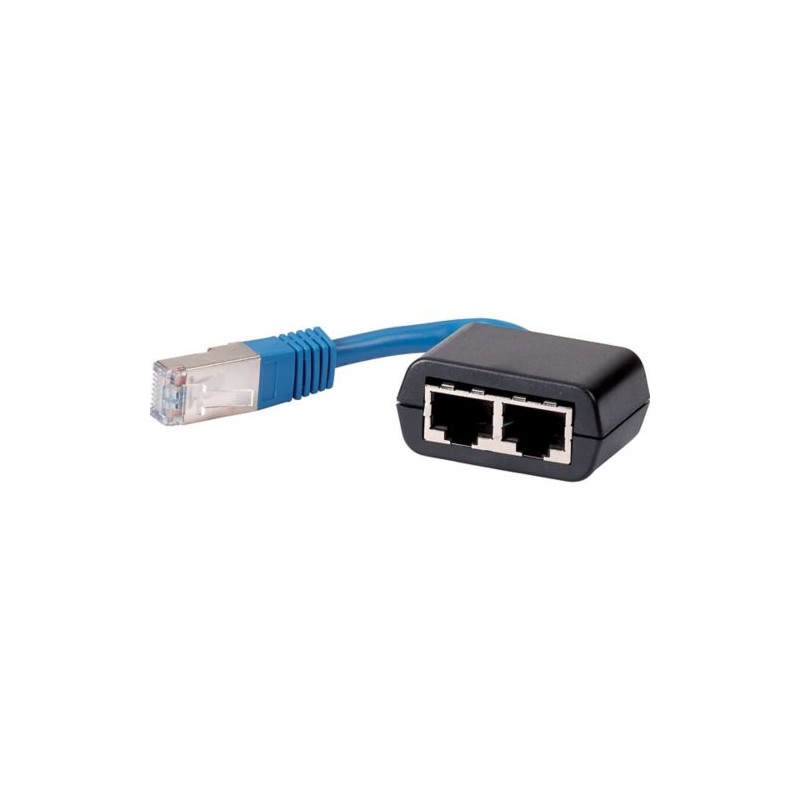

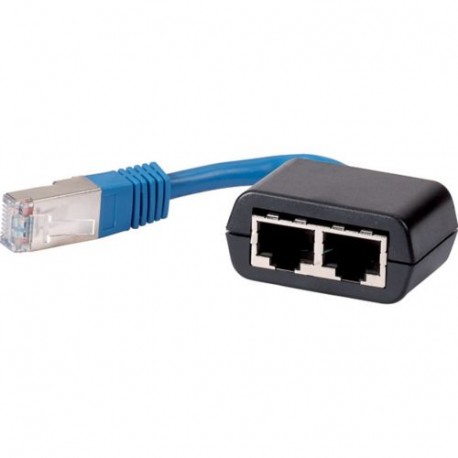

DX-SPL-RJ45-2SL1PL 169142 Y7-169142 EATON ELECTRIC DIVISOR RJ45 2 slots 1 PLUG Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DX-SPL-RJ45-2SL1PL 169142 Y7-169142 EATON ELECTRIC DIVISOR RJ45 2 slots 1 PLUG

DX-SPL-RJ45-2SL1PL

169142

Y7-169142

EATON-MOELLER

DIVISOR RJ45 - 2 slots 1 PLUG

Separador para conversores de frequência RJ45, 2 fêmeas, 1 macho

Eaton DX Splitter for variable frequency drives (RJ45, 2 sockets/1 plug)

Mais detalhes


Aparelhos elétricos de baixa tensão > Acessórios para reguladores de frequência

Conversores de Frequência Power XL

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $30.38
Preço unitário: $30.38
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

geralmente comprados juntos

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton DX Cable and splitter
Catalog Number
169142
EAN
4015081656202
Product Length/Depth
38 mm
Product Height
170 mm
Product Width
120 mm
Product Weight
0.05 kg
Certifications
Certified by UL for use in Canada
IEC/EN61800-5
IEC/EN61800-3
UL 508C
UL Category Control No.: NMMS, NMMS7
UL
CE
CSA-C22.2 No. 14
UL report applies to both US and Canada
UL File No.: E172143
Model Code
DX-SPL-RJ45-2SL1PL

Especificações do produto

Product Category
Accessories
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Cable (approx. 10 cm)
Used with
DA1
DC1
DE1
DB1
Accessory/spare part type
Splitter
Ambient operating temperature - max
50 °C
Ambient operating temperature - min
-10 °C
Connection
RJ45, 8-pin, 2 sockets/1 plug
Degree of protection
IP00
Suitable for
Branch circuits, (UL/CSA)

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 37 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DX-SPL-RJ45-2SL1PL Y7-169142 169142 FR_169141.pdf 1 Mbytes DX-SPL-RJ45-2SL1PL Y7-169142 169142 FR_169141.pdf
