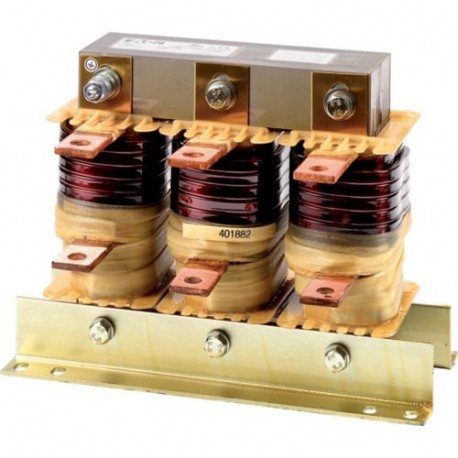

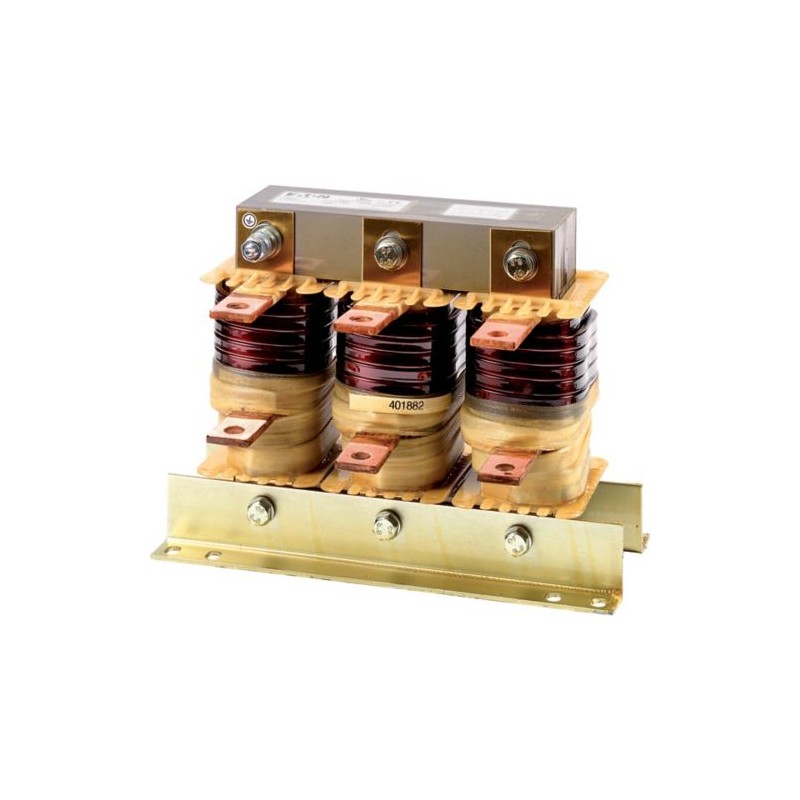

DX-LM3-100 269547 Y7-269547 EATON ELECTRIC Saída do motor de bobina 3 ~ 100A
DX-LM3-100
269547
Y7-269547
EATON-MOELLER
Saída do motor de bobina 3 ~ 100A
Relastro de Motor AC 3 polos 100 A 0,45 mH 750 V 50/60 Hz
Eaton DX Motor choke, three-phase, 750 V + 0% (0 - 400 Hz), V AC, 100 A, 0.45 mH
Estrangulamento do motor trifásico Max. tensão de rede permitida 750 V AC Corrente nominal de operação 100 A reator 0,45 mH
Aparelhos elétricos de baixa tensão > Bobina para baixa tensão
Conversores de Frequência Eaton
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton DX Motor choke
Catalog Number
269547
EAN
4015082695477
Product Length/Depth
215 mm
Product Height
258 mm
Product Width
384 mm
Product Weight
31 kg
Certifications
IEC/EN61800-3
IEC/EN61800-5
UL 508C
UL File No.: E167225
CE
Certified by UL for use in Canada
IEC/EN 61558-2-20-2000
VDE 0570 Part 2-20/2001-04
UL report applies to both US and Canada
UL
CSA-C22.2 No. 14
CSA
UL Category Control No.: XPTQ2, XPTQ8
IEC/EN61800-5
UL 508C
UL File No.: E167225
CE
Certified by UL for use in Canada
IEC/EN 61558-2-20-2000
VDE 0570 Part 2-20/2001-04
UL report applies to both US and Canada
UL
CSA-C22.2 No. 14
CSA
UL Category Control No.: XPTQ2, XPTQ8
Model Code
DX-LM3-100
Especificações do produto
Product Category
Accessories
Suitable as
Ripple filter choke
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Fitted with:
Connection lugs
PE stud
PE stud
Frequency rating
50-60 Hz
Used with
DG1
DA1
DA1
Altitude
Max. 5000 m with current reduction
Max. 1000 m
Max. 1000 m
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Rated current (Ith) at rated voltage DC - max
100 A
Rated frequency - max
400 Hz
Rated frequency - min
0 Hz
Rated inductance
0.45 mH
Ambient storage temperature - max
85 °C
Ambient storage temperature - min
-25 °C
Bore diameter
9 mm
Equipment heat dissipation, current-dependent Pvid
177 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Number of phases
3
Mounting position
Free surrounding areas > 50 mm
Standing vertically
Suspended horizontally
Standing vertically
Suspended horizontally
Connection lug
Cu 20 x 2 mm²
Duty factor
100 %
Degree of protection
IP00
NEMA Other
NEMA Other
Relative short-circuit voltage
0 %
Insulation class
F
Rated operational voltage (Ue) - max
750 V
Rated operational current (Ie) - max
100 A
Rated operational current (Ie) - min
100 A
Resonance frequency
0 Hz
Number of poles
Three-pole
Operating temperature details
-25 - 40 °C (up to 70 °C with current derating)
Rated operational current for specified heat dissipation (In)
100 A
Static heat dissipation, non-current-dependent Pvs
0 W
Voltage rating - max
480 V
Vibration resistance
0 - 150 Hz, 1 g
10 - 55 Hz, 0.35 mm
10 - 55 Hz, 0.35 mm
Permissible connection voltage
Max. 550 V AC (0 - 400 Hz)
Power loss
177 W (3 kHz)
279 W (5 kHz)
294 W (12 kHz)
279 W (5 kHz)
294 W (12 kHz)
Shock resistance
3 shocks
Shock duration: 11 ms
Shock duration: 11 ms
Suitable for
Branch circuits, (UL/CSA)
Switching frequency
0 kHz
Tightening torque
6 Nm, Screw terminals
| Característica | Valor |
|---|---|
| Adequado como bobina de supressão de interferência (EF007230) | Não |
| Adequado como bobina de reatância líquida (EF007234) | Não |
| Adequado como bobina de reatância de comutação (EF007233) | Não |
| Adequado como filtro de ondulação (EF007232) | Sim |
| Adequado como bobina de reatância de saída (EF007227) | Não |
| Número de polos, lado primário (EF007403) | 3 |
| Frequência nominal do relógio (EF007502) | 0 kHz |
| Frequência nominal de operação (EF007024) | 0 Hz |
| Máx. tensão nominal de operação Ue (EF007357) | 750 V |
| Corrente nominal em CA (EF007500) | 100 A |
| Máx. corrente nominal (Ith) na tensão nominal DC (EF007359) | 100 A |
| Indutância estipulada (EF007291) | 0.45 mH |
| Grau de proteção (IP) (EF005474) | IP00 |
| Tensão relativa de curto-circuito (EF007452) | 0 % |
| Frequência de ressonância (EF007455) | 0 Hz |
| Grau de proteção (NEMA) (EF011959) | Outro |
