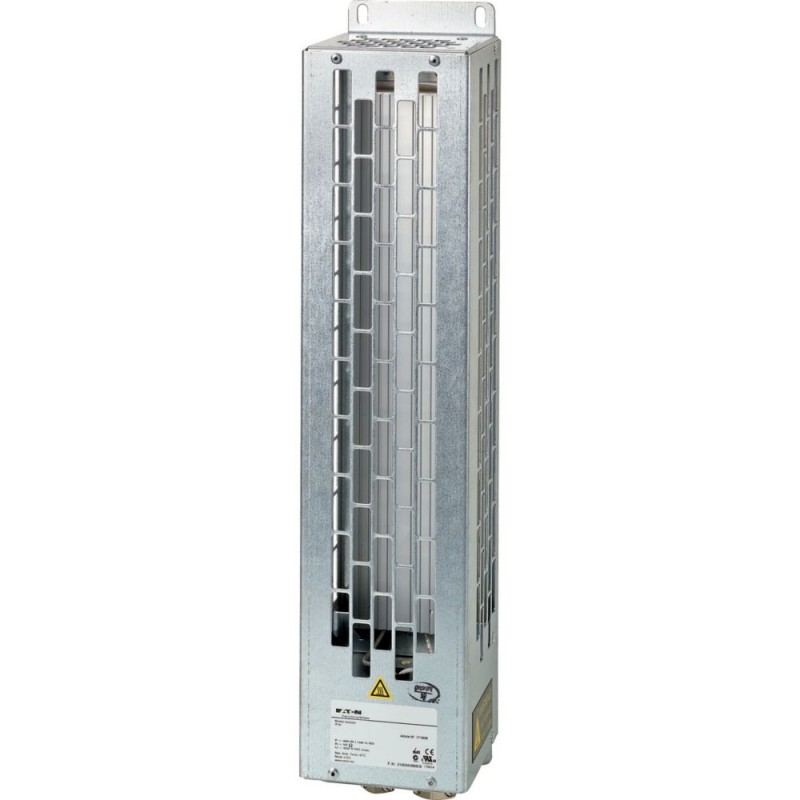

DX-BR100-0K4 171926 EATON ELECTRIC PowerXL resistor de frenagem
DX-BR100-0K4
171926
EATON-MOELLER
PowerXL - resistor de frenagem
Resistor de frenagem para conversor de frequência 100 Ohm 400 W
Eaton DX Braking resistance, IP20, 100 Ω, 0.4 kW, For use with: DA1, DL1, DG1, SVX, SPX
Disjuntores de baixa tensão > Acessórios para reguladores de frequência
Conversores de Frequência Power XL
* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Mais informação
▲General specifications
Product Name
Eaton DX Braking resistor
Catalog Number
171926
Product Length/Depth
95 mm
Product Height
445 mm
Product Width
95 mm
Product Weight
2.1 kg
Certifications
UL
Certified by UL for use in Canada
UL Category Control No.: NMTR2, NMTR8
C22.2
UL report applies to both US and Canada
UL File No.: E300273
UL508
Certified by UL for use in Canada
UL Category Control No.: NMTR2, NMTR8
C22.2
UL report applies to both US and Canada
UL File No.: E300273
UL508
Catalog Notes
Installed in a housing designed to prevent accidental contact and featuring a temperature monitoring switch and internal connecting terminals
Model Code
DX-BR100-0K4
Especificações do produto
Accessories
Braking resistances
Product Category
Accessories
Type
Wire wound resistor in ceramic potting compound inside aluminum case, combined
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Used with
DA1
DC1
DG1
DM1
DC1
DG1
DM1
Accessory/spare part type
Breaking resistance
Braking resistance
100 Ω
Continuous braking rating
0.4 kW
Degree of protection
IP00
IP20
IP20
Voltage rating - max
600 V
Suitable for
Branch circuits, (UL/CSA)
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 32 Mbytes |
|
| DX-BR100-0K4 DX-BR100-0K4 171926 ES_171924.pdf | 1 Mbytes |
|
