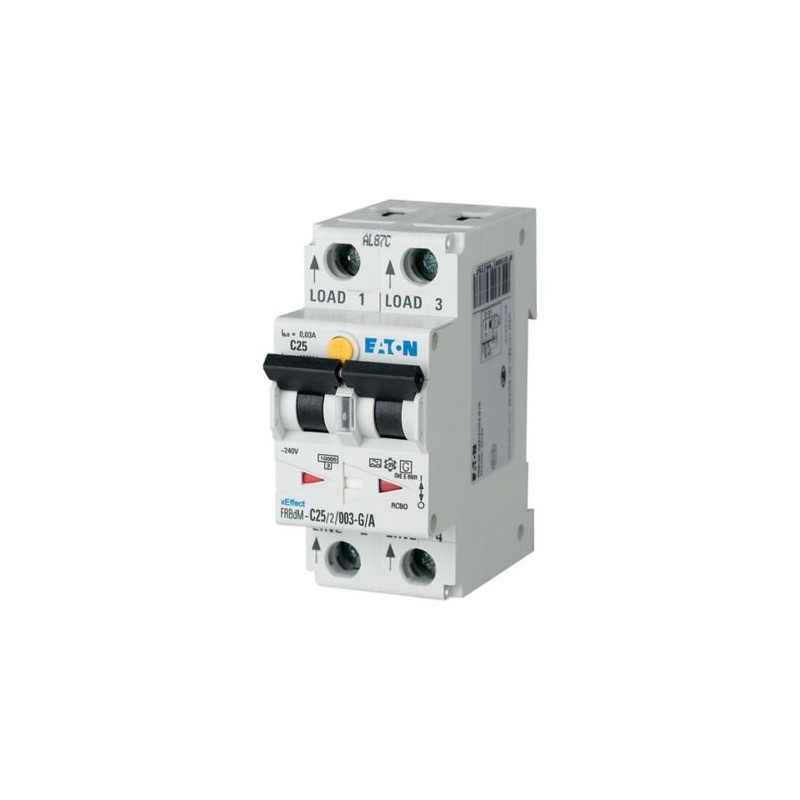

FRBDM-B16/2/003-G/A 168200 Y7-168200 EATON ELECTRIC Interruptor Combinado, 16A, 30mA, curva B , 2p,Classe G/A Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

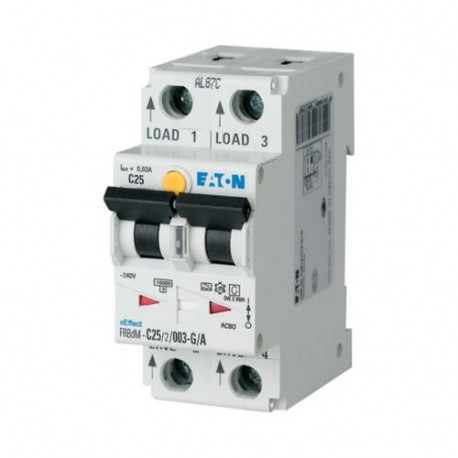

FRBDM-B16/2/003-G/A 168200 Y7-168200 EATON ELECTRIC Interruptor Combinado, 16A, 30mA, curva B , 2p,Classe G/A

FRBDM-B16/2/003-G/A

168200

Y7-168200

EATON-MOELLER

Interruptor Combinado, 16A, 30mA, curva B , 2p,Classe G/A

Pente RCD/MCB. Interruptor, 16 A, 30 mA, Tipo B Disjuntor Miniatura Característica de Tropeço, 2p, Corrente Residual Disjuntor Característica de Tropeço: A

Combinação de dispositivo/disjuntor de corrente em miniatura de alta qualidade, dependente da tensão da linha, indicador de posição de contato vermelho-verde, proteção do plugue traseiro do terminal, fechamento deslizante tri-estável - permite a remoção do sistema de barramento existente, ampla gama de acessórios adequados para retrofitting, ampla gama de correntes de falha nominais, correntes nominais de operação de até 40 A, características de disparo B, C, D, capacidade nominal de interrupção de 10 kA, adequado para uso externo (energia no local e quadro de distribuição externo) até -25°C

Mais detalhes


Disjuntores, fusíveis > Combinação de interruptor diferencial/magnetotérmico

Aparelhagem Modular - Industrial

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $267.79
Preço unitário: $267.79
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller series xEffect - FRBdM RCBO - residual-current circuit breaker with overcurrent protection
Catalog Number
168200
EAN
4015081647712
Product Length/Depth
86 mm
Product Height
75 mm
Product Width
37 mm
Product Weight
0.25 kg
Compliances
CE Marked
RoHS conform
Certifications
CE
Model Code
FRBDM-B16/2/003-G/A

Especificações do produto

Type
RCBO
Application
Switchgear for industrial and advanced commercial applications
Amperage Rating
16 A
Voltage rating
240 V - 240 V
Surge current capacity
3 kA
Voltage type
AC
Width in number of modular spacings
2
Features
Anti-nuisance tripping version
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Operating ambient temperature - max
40 °C
Operating ambient temperature - min
-25 °C
Product range
FRBdM
Rated current
16 A
Rated fault currents of product range
10, 30, 100 MilliAmpere
Rated operational current for specified heat dissipation (In)
16 A
Rated switching capacity (IEC/EN 61009)
10 kA
Tripping characteristic
B
Built-in depth
70 mm
Current limiting class
3
Rated short-circuit breaking capacity (EN 60947-2)
0 kA
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-25 °C
Fault current rating
0.03 A
Heat dissipation capacity
0 W
Heat dissipation per pole, current-dependent
0 W
Number of poles (protected)
2
Number of poles (total)
2
Rated operational voltage (Ue) - max
240 V
Rated short-circuit breaking capacity (IEC 60947-2)
0 kA
Rated switching capacity
10 kA
Basic function
Combined RCD/MCB devices
Equipment heat dissipation, current-dependent
4.5 W
Rated impulse withstand voltage (Uimp)
4 kV
Degree of protection
IP20
Operating ambient temperature hint
Keep in mind the derating at temperatures higher than 40 °C
Tripping
Short time-delayed
Overvoltage category
III
Pollution degree
2
Impulse withstand current
Surge-proof, 3 kA
Leakage current type
A
Release characteristic
B
Sensitivity type
Pulse-current sensitive
Frequency rating
50 Hz
Rated insulation voltage (Ui)
250 V
Connectable conductor cross section (solid-core) - min
1 mm²
Connectable conductor cross section (solid-core) - max
25 mm²
Connectable conductor cross section (multi-wired) - min
1 mm²
Connectable conductor cross section (multi-wired) - max
25 mm²
Rated short-circuit breaking capacity (EN 61009)
10 kA
Rated short-circuit breaking capacity (EN 61009-1)
10 kA
Number of poles
Two-pole
Disconnection characteristic
Short-time delayed
Power loss
4.9 W

ETIM for 168200 Circuit breakers and fuses (EC000905)
Característica Valor
Number of poles (total) (EF008618) 2
Number of protected poles (EF005548) 2
Rated voltage (EF000228) 240 V
Rated insulation voltage Ui (EF001366) 250 V
Rated impulse withstand voltage Uimp (EF011980) 4 kV
Rated current (EF000227) 16 A
Rated fault current (EF002358) 0.03 A
Leakage current type (EF002560) A
Current limiting class (EF002568) 3
Power loss (EF005387) 4.9 W
Rated short-circuit breaking capacity according to EN 61009 (EF012628) 10 kA
Rated short-circuit breaking capacity according to IEC 60947-2 (EF006065) 0 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1 (EF011981) 10 kA
Disconnection characteristic (EF012587) Short-time delayed
Surge current capacity (EF002564) 3 kA
Voltage type (EF000187) AC
Frequency (EF005455) 50 Hz
Release characteristic (EF000889) B
Concurrently switching neutral conductor (EF005997) false
With interlocking device (EF007385) false
Over voltage category (EF002569) 3
Pollution degree (EF002570) 2
Ambient temperature during operating (EF007515) -25 °C
Width in number of modular spacings (EF002950) 2
Built-in depth (EF000218) 70 mm
Anti-nuisance tripping version (EF009497) true
Degree of protection (IP) (EF005474) IP20
Connectable conductor cross section solid-core (EF007337) 1 mm²
Connectable conductor cross section multi-wired (EF007343) 1 mm²
