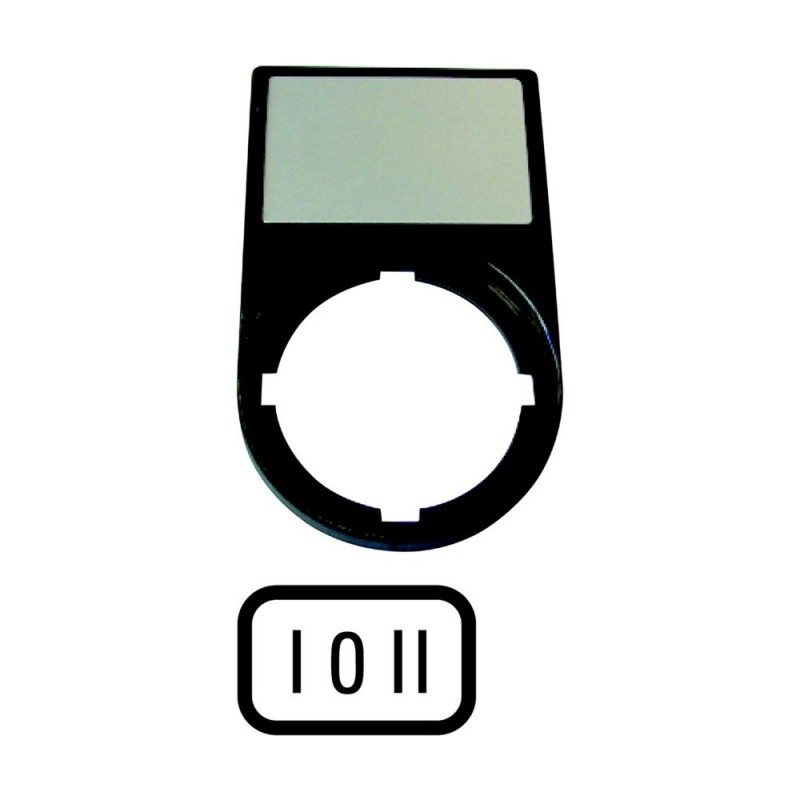

M22S-ST-X93 216486 Y7-216486 EATON ELECTRIC M22S-ST-X93Q Portaetiquetas completo I-0-II
M22S-ST-X93
216486
Y7-216486
EATON-MOELLER
M22S-ST-X93Q Portaetiquetas completo I-0-II
Inscrição completa do porta-etiquetas: I 0 II
Eaton Moeller® series M22 Carrier, +label, I 0 II
Etiqueta inscrita pronta para uso, adequada para a linha de produtos de unidades de comando e sinal RMQ-Titan.
Aparelhos elétricos de baixa tensão > Suporte de etiqueta de dispositivos de controle
Auxiliares de controle e sinalização
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
geralmente comprados juntos
▲Best sellers
▲Mais informação
▲General specifications
| Product Name | Eaton Moeller® series M22 Accessory Legend holder |
| Catalog Number | 216486 |
| EAN | 4015082164867 |
| Product Length/Depth | 4 mm |
| Product Height | 50 mm |
| Product Width | 30 mm |
| Product Weight | 0.002 kg |
| Certifications | UL/CSA certification not required |
| Catalog Notes | Complete |
| Model Code | M22S-ST-X93 |
Especificações do produto
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Connection to SmartWire-DT | No |
| Color | Black |
| Shape | Rectangular |
| Design | Round |
| Degree of protection | IP66 |
| Inscription | I 0 II |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Opening diameter | 22 mm |
| Opening height | 0 mm |
| RAL-number | 9005 |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| Width opening | 0 mm |
| Product category | Accessories |
| Característica | Valor |
|---|---|
| Largura (EF000008) | 30 mm |
| Altura (EF000040) | 50 mm |
| Diâmetro do furo (intervalo) (EF000079) | 22 mm |
| Largura da abertura (EF004565) | 0 mm |
| Altura da abertura (EF004778) | 0 mm |
| Cor (EF000007) | Preto |
| Forma (EF000051) | Retangular |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M22S-ST-X93 Y7-216486 216486 PT_216486.pdf | 70 Kbytes |
|
