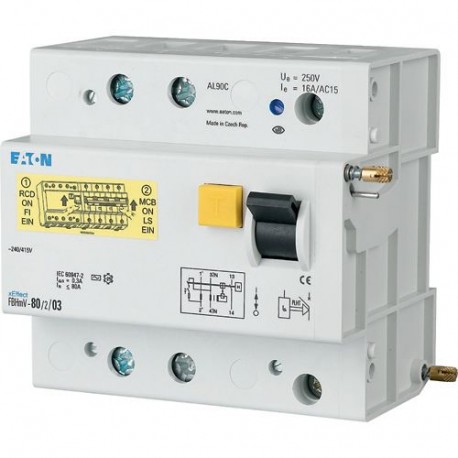

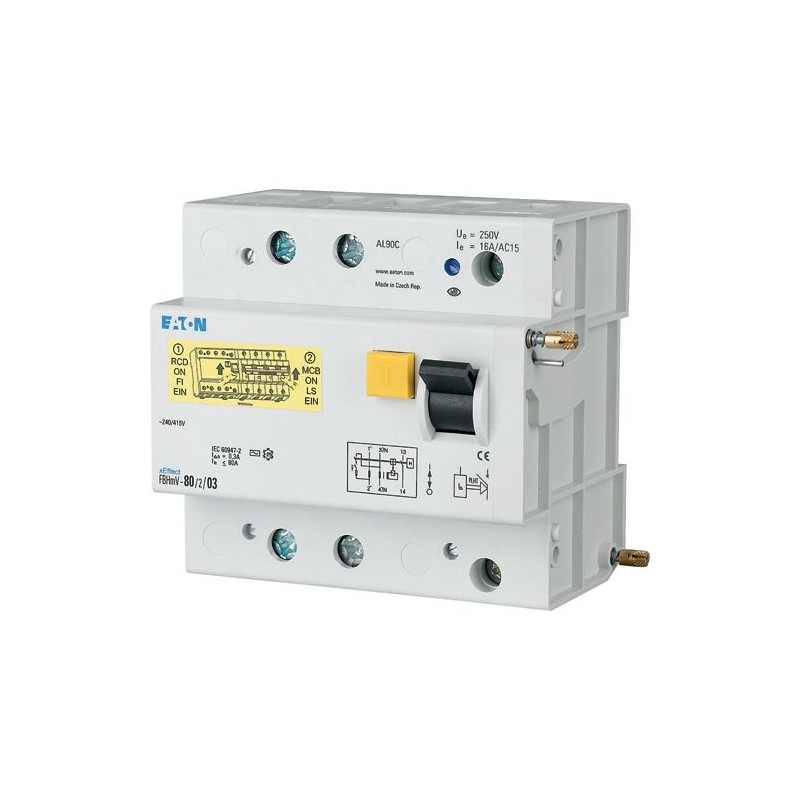

FBHMV-80/2/003 170266 Y7-170266 EATON ELECTRIC Bloco diferencial para AZ, 80A, 2P, 30mA, Tipo AC
FBHMV-80/2/003
170266
Y7-170266
EATON-MOELLER
Bloco diferencial para AZ, 80A, 2P, 30mA, Tipo AC
Bloco diferencial xEffect para AZ, 80A, 2P, 30mA, Classe AC
Eaton Distribution parts. Residual-current circuit breaker trip block for AZ, 80A, 2p, 30mA, type AC
Disjuntor diferencial acoplável FBHmV, 2 polos, Unidade de proteção diferencial adicional, Corrente nominal em: 80 A, Corrente nominal de falha IΔN: 0,03 A, Tipo CA, Sensível à corrente alternada, Parcialmente à prova de surtos 250 A, Aparelhagem para aplicações industriais e comerciais avançadas
Disjuntores, fusíveis > Bloco de corrente residual
Aparelhagem Modular - Industrial
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Related products
▲Best sellers
▲Mais informação
▲General specifications
Product Name
Eaton Moeller series xEffect - FBHmV RCCB add-on unit
Catalog Number
170266
EAN
4015081666300
Product Length/Depth
94.5 mm
Product Height
80 mm
Product Width
90 mm
Product Weight
0.406 kg
Compliances
RoHS conform
Certifications
EN45545-2
IEC 61373
IEC/EN 60947-2
IEC 61373
IEC/EN 60947-2
Model Code
FBHMV-80/2/003
Programa de entrega
Application
Number of poles
Two-pole
Tripping time
Non-delayed
Amperage Rating
80 A
Rated short-circuit strength
Same as connected AZ
Fault current rating
30 mA
Sensitivity type
AC current sensitive
Impulse withstand current
Partly surge-proof 250 A
Type
Ambient temperature hint: Starting at 40 °C, the max. permissible continuous current decreases by 3% for every 1 °C
Dados técnicos - elétricos
Voltage rating - min
240 V
Voltage rating - max
415 V
Rated operational voltage (Ue) - max
240 V
Rated insulation voltage (Ui)
440 V
Rated impulse withstand voltage (Uimp)
4 kV
Rated fault current - min
0.03 A
Rated fault current - max
0.03 A
Frequency rating
50 Hz
Leakage current type
AC
Rated short-time withstand current (Icw)
10 kA
0 kA
0 kA
Surge current capacity
0.25 kA
Pollution degree
2
Lifespan, electrical
1500 operations
Dados técnicos - mecânicos
Frame
45 mm
Width in number of modular spacings
5.5
Built-in width (number of units)
95 mm (5.5 SU)
Built-in depth
70 mm
Mounting Method
Screwed onto AZ 2-, 3-, 4-pole; Z-BHASA
DIN rail
DIN rail
Degree of protection
IP20, IP40 with suitable enclosure
IP20
IP20
Terminals (top and bottom)
Lift terminals
Connectable conductor cross section (solid-core) - min
2.5 mm²
Connectable conductor cross section (solid-core) - max
50 mm²
Connectable conductor cross section (multi-wired) - min
2.5 mm²
Connectable conductor cross section (multi-wired) - max
50 mm²
Terminal protection
Finger and hand touch safe, DGUV VS3, EN 50274
Lifespan, mechanical
10000 operations
Permitted storage and transport temperature - min
-35 °C
Permitted storage and transport temperature - max
60 °C
Climatic proofing
25-55 °C / 90-95% relative humidity according to IEC 60068-2
Verificação do design de acordo com a norma IEC/EN 61439 - dados técnicos
Rated operational current for specified heat dissipation (In)
80 A
Heat dissipation per pole, current-dependent
0 W
Equipment heat dissipation, current-dependent
4.7 W
Static heat dissipation, non-current-dependent
0 W
Heat dissipation capacity
0 W
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
40 °C
Verificação do design de acordo com a norma IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Informações adicionais
Features
Add-on residual current protection unit
Additional equipment possible
Additional equipment possible
Fitted with:
Interlocking device
Special features
- Add-on residual current protection unit
- FBHmV
- Type AC
Used with
FBHmV
Add-on residual current protection unit
Type AC
Add-on residual current protection unit
Type AC
| Característica | Valor |
|---|---|
| Tensão nominal (intervalo) (EF005127) | 240 V |
| Corrente nominal (EF000001) | 80 A |
| Sensibilidade/Corrente estipulada de defeito regulável (EF008874) | Não |
| Corrente nominal de defeito (EF003975) | 0.03 A |
| Tempo máximo de atraso (EF001421) | 0 ms |
| Tempo de atraso ajustável (EF001420) | Não |
| Número de polos (EF001391) | 2 |
| Tipo de corrente de defeito diferencial (EF002560) | AC |
| Resistência contra sobreintensidades (EF002564) | 0.25 kA |
| Frequência de funcionamento (EF005455) | 50 Hz |
| Tensão nominal de isolamento Ui (EF001366) | 440 V |
| Tensão estipulada suportável ao choque (Uimp) (EF011980) | 4 kV |
| Secção da ligação de cabo rígido (EF007337) | 2.5 mm² |
| Secção da ligação de cabo flexível (EF007343) | 2.5 mm² |
| Imunidade aos disparos intempestivos (EF009497) | Não |
| Com dispositivo de bloqueio (EF007385) | Sim |
| Grau de proteção (IP) (EF005474) | IP20 |
| Grau de poluição (EF002570) | 2 |
| Temperatura ambiente durante a operação (EF007515) | -25 °C |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| FBHMV-80/2/003 Y7-170266 170266 ES_170247.pdf | 437 Kbytes |
|
