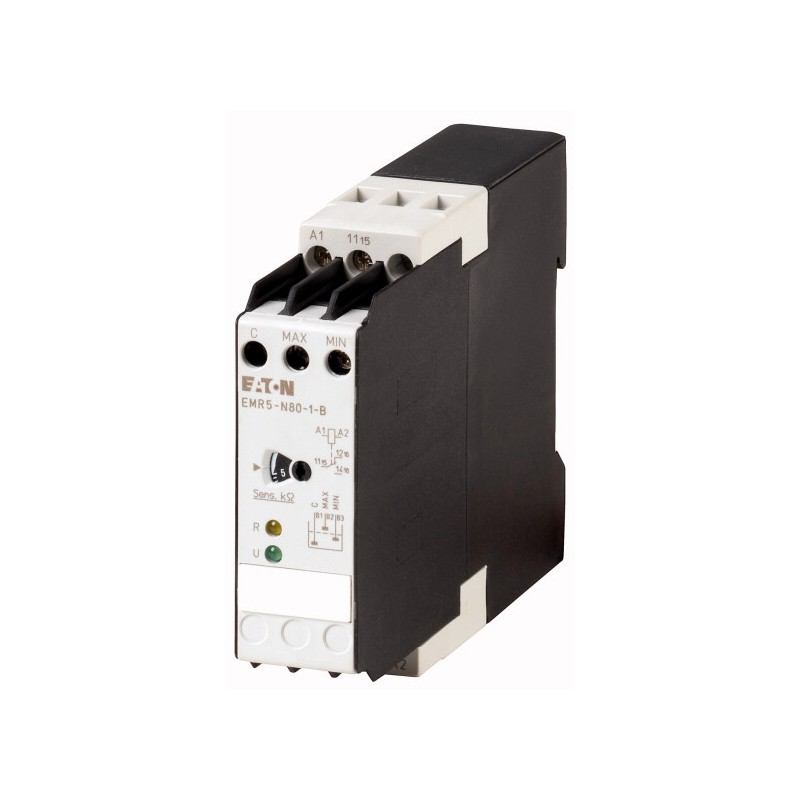

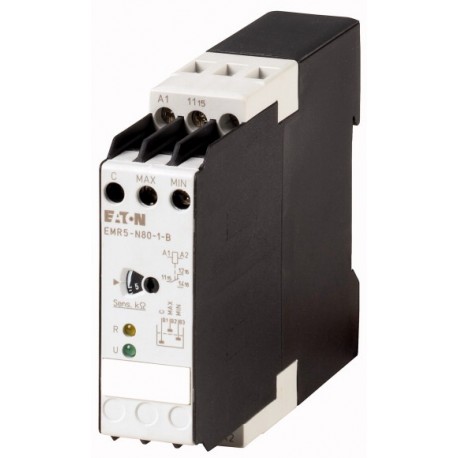

EMR5-N80-1-B 134232 EATON ELECTRIC relé de nível
EMR5-N80-1-B
134232
EATON-MOELLER
relé de nível
Relé de monitoramento de nível de fluido; 1 W; 220-240 V 50/60 Hz; 5-100 kOhm
Relés de temporização (KETR, KEMR, KESR)
Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Best sellers
▲Mais informação
▲Delivery programme
Product range | EMR4+EMR5 measuring and monitoring relays | ||
Basic function | Level monitoring relays | ||
Mnitoring of | Fill level of conductive liquids Mixture ratio of conductive liquids | ||
Adjustable pick-up time | 5 - 100 kΩ | ||
Contact sequence | |||
| Technical data in sheet catalogue | |||
Other technical data (sheet catalogue) | >Level monitoring relays | ||
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification | |||
Heat dissipation capacity | Pdiss | W | 0 |
Operating ambient temperature min. | °C | -25 | |
Operating ambient temperature max. | °C | 60 | |
IEC/EN 61439 design verification | |||
10.2 Strength of materials and parts | |||
10.2.2 Corrosion resistance | Meets the product standard's requirements. | ||
10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. | ||
10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. | ||
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects | Meets the product standard's requirements. | ||
10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. | ||
10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.7 Inscriptions | Meets the product standard's requirements. | ||
10.3 Degree of protection of ASSEMBLIES | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.4 Clearances and creepage distances | Meets the product standard's requirements. | ||
10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. | ||
10.8 Connections for external conductors | Is the panel builder's responsibility. | ||
10.9 Insulation properties | |||
10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. | ||
10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. | ||
10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. | ||
10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. | ||
10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
Technical data ETIM 6.0(Show features)(Hide features)
| Relays (EG000019) / (Fill) level monitoring relay (EC001447) | |||
| Electric engineering, automation, process control engineering / Low-voltage switch technology / Monitoring equipment (low-voltage switch technology) / Level monitoring relay ([email protected] [AKF107011]) | |||
Type of electric connection | Screw connection | ||
Rated control supply voltage Us at AC 50HZ | V | 220 - 240 | |
Rated control supply voltage Us at AC 60HZ | V | 220 - 240 | |
Rated control supply voltage Us at DC | V | 0 - 0 | |
Voltage type for actuating | AC | ||
With detachable clamps | No | ||
Number of inputs for electrodes | 0 | ||
Min. adjustable operate delay time | s | 0 | |
Max. permitted operate delay time | s | 0 | |
Min. adjustable off-delay time | s | 0 | |
Max. permitted off-delay time | s | 0 | |
Response value sensitivity adjustable | Yes | ||
Number of contacts as normally closed contact | 0 | ||
Number of contacts as normally open contact | 0 | ||
Number of contacts as change-over contact | 1 | ||
Physical measurement principle | Conductive | ||
Width | mm | 22.5 | |
Height | mm | 78 | |
Depth | mm | 100 | |
Approvals
| Product Standards | IEC 255-6; UL 508; CSA-22.2 No. 14-05; CE marking | ||
| UL File No. | E29184 | ||
| UL Category Control No. | NKCR, NKCR7 | ||
| CSA File No. | UL report valid | ||
| CSA Class No. | 3211-03 | ||
| North America Certification | UL listed, certified by UL for use in Canada | ||
| Degree of Protection | IEC: IP20, UL/CSA Type: - |
Datasheet - PDF
▲| Título: | Tamanho: | Tipo: |
|---|---|---|
| PDF EATON EMR ERT EMT EN.pdf | 3 Mbytes |
|
| PDF EATON SAFETY RELAYS ESR5 EN.pdf | 1 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| EMR5-N80-1-B Liquid level monitoring relay, 1W, 220-240V50/60Hz, 5-100kOhm - EATON - EMR5-N80-1-B - 134232 | 372 Kbytes |
|
