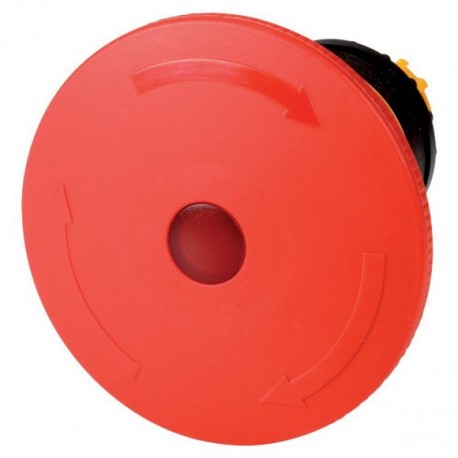

M22-PVLT60P 121461 EATON MOELLER Emergency switching off, 60mm, turn-release Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

M22-PVLT60P 121461 EATON MOELLER Emergency switching off, 60mm, turn-release

M22-PVLT60P

121461

EATON - MOELLER

Disponível

Envio hoje

Emergency switching off, 60mm, turn-release

Mais detalhes


Sinalização Colunas Luminosas Balizas

Emergency switching-off actuators - EATON - MOELLER

* Produto novo em sua embalagem original com todas as garantias e certificações de EATON - MOELLER

Quantidade Preço
1+$21.91
8+$18.92
16+$18.33
24+$18.04
32+$17.86
*Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Produtos relacionados

Mais informação



Delivery programme
Product range
  RMQ-Titan (drilling dimensions 22.5 mm)
Basic function
  Controlled stop pushbuttons/emergency-stop buttons
Single unit/Complete unit
  Single unit
Design
  Palm-tree shape
Diameter
General
Standards
  IEC/EN 60947
VDE 0660
Lifespan, mechanical
Operationsx 106> 0.1
Operating frequency
Operations/h
Technical data for design verification

Rated operational current for specified heat dissipation
InA0
Heat dissipation per pole, current-dependent
PvidW0
Equipment heat dissipation, current-dependent
PvidW0
Static heat dissipation, non-current-dependent
PvsW0
Heat dissipation capacity
PdissW0
Operating ambient temperature min.
 °C-25
Operating ambient temperature max.
 °C70
IEC/EN 61439 design verification

10.2 Strength of materials and parts

10.2.2 Corrosion resistance
  Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
  Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
  Meets the product standard's requirements.
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
  Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
  Please enquire
10.2.5 Lifting
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
  Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
  Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
  Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
  Meets the product standard's requirements.
10.5 Protection against electric shock
  Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
  Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
  Is the panel builder's responsibility.
10.8 Connections for external conductors
  Is the panel builder's responsibility.
10.9 Insulation properties

10.9.2 Power-frequency electric strength
  Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
  Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
  Is the panel builder's responsibility.
10.10 Temperature rise
  Not applicable.
10.11 Short-circuit rating
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
  Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
  The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Technical data ETIM 6.0(Show features)(Hide features)
Low-voltage industrial components (EG000017) / Front element for mushroom push-button (EC001038)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for mushroom push-button actuators ([email protected] [AKF030011])
Colour button
  Red
Construction type lens
  Round
Diameter cap
 mm60
Hole diameter
 mm22.5
Width opening
 mm0
Height meter opening
 mm0
Degree of protection (IP)
  -
Type of button
  High
Suitable for illumination
  No
Switching function latching
  Yes
Spring-return
  No
With front ring
  No
Material front ring
  Plastic
Colour front ring
  Black
Suitable for emergency stop
  Yes
Unlocking method
  Turn unlatching mechanism
Approvals
North America Certification  Request filed for UL and CSA
Dimensions
IL04716005Z RMQ-Titan: Emergency stop buttons, Emergency stop buttons

>
>>

Datasheet - PDF
