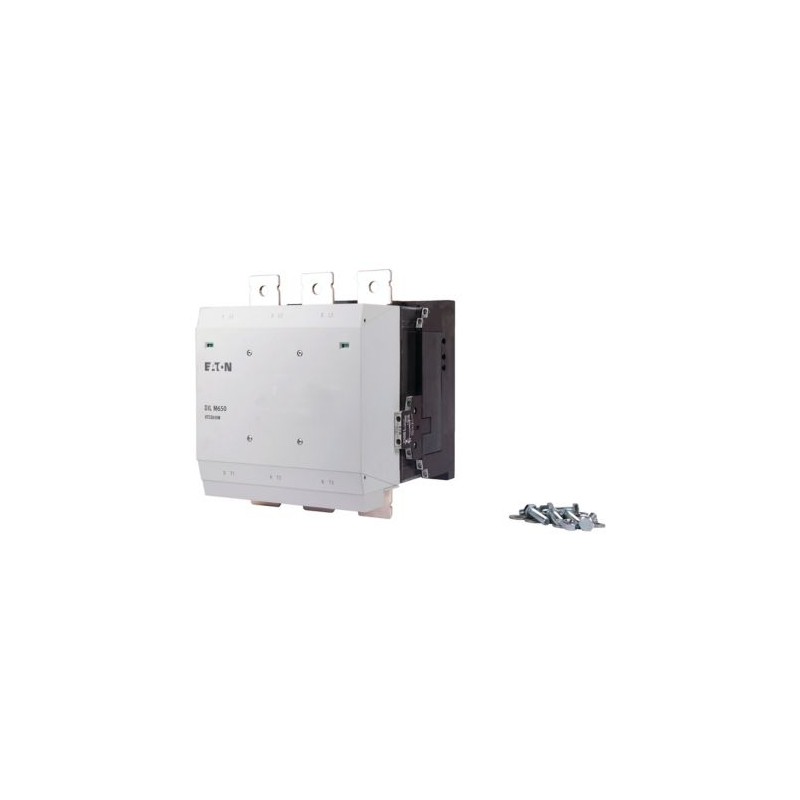

DILM650/22(RA110) 208218 Y7-208218 EATON ELECTRIC XTCE650N22Y contator 3P 650A (AC-3,400V), auxiliar 2NA + 2.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

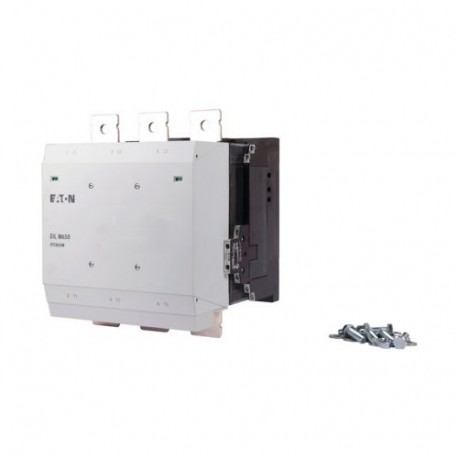

DILM650/22(RA110) 208218 Y7-208218 EATON ELECTRIC XTCE650N22Y contator 3P 650A (AC-3,400V), auxiliar 2NA + 2..

DILM650/22(RA110)

208218

Y7-208218

EATON-MOELLER

XTCE650N22Y contator 3P 650A (AC-3,400V), auxiliar 2NA + 2NF

Contator de Potência Conexão de parafuso 3 polos + 2 NO + 2 NC 650 A

Eaton Moeller® series DILM Contactor, 380 V 400 V 355 kW, 2 N/O, 2 NC, RA 110: 48 - 110 V 40 - 60 Hz/48 - 110 V DC, AC and DC operation, Screw connection

Contator, Aplicação: Contatores para motores, Dispositivos de conforto acima de 170 A, Categoria de uso: AC-1: Cargas não indutivas ou ligeiramente indutivas, Fornos de resistência, NAC-3: Motores de indução CA normais: partida, desligamento durante a operação, AC-4: Motores de indução CA normais: partida, conexão, inversão, avanço, Técnica de conexão: Conexão a parafuso, Corrente nominal de operação AC-3 380 V 400 V: Ie= 650 A, Corrente nominal de operação AC-1 Corrente térmica convencional de ar livre, 3 pólos, 50 - 60 Hz Aberto a 40 °C: Ith = Ie= 1041 A, Corrente nominal de operação AC-1 Corrente térmica convencional de ar livre, 1 pólo aberto: Ith= 2125 A, Potência máxima para motores trifásicos, 50 - 60 Hz AC-3 220 V 230 V: P= 205 kW, 380 V 400 V: P= 355 kW, 660 V 690 V: P= 630 kW, Potência máxima para motores trifásicos, 50 - 60 Hz AC-4 220 V 230 V: P= 161 kW, 380 V 400 V: P= 280 kW, 660 V 690 V: P= 494 kW, Combinável com contato auxiliar: DILM820-XHI..., Contatos N/O = Normalmente aberto: 2 N/O, Contatos N/A = Normalmente fechado: 2 NF, Instruções: circuito supressor integrado na eletrônica do acionamento, 660 V, 690 V ou 1000 V: não diretamente reversível, Tensão AC/DC: operação AC e DC

Mais detalhes


Aparelhos elétricos de baixa tensão > Contator de potência para comutar a alimentação de CA

Contatores mais de 170 A

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $6,459.17
Preço unitário: $6,459.17
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series DILM Contactor
Catalog Number
208218
EAN
4015082082185
Product Length/Depth
232 mm
Product Height
296 mm
Product Width
250 mm
Product Weight
16.209 kg
Certifications
CE
VDE 0660
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CSA
CSA Class No.: 3211-04
UL 60947-4-1
UL Category Control No.: NLDX
IEC/EN 60947-4-1
UL File No.: E29096
UL
CSA File No.: 012528
Catalog Notes
Model Code
DILM650/22(RA110)

Geral

Accessories
Fitting options auxiliary contacts: on the side: 2 x DILM820-XHI11(V)-SI; 2 x DILM820-XHI11-SA
Application
Contactors for Motors
Connection
Screw terminals
Degree of protection
IP00
Electromagnetic compatibility
Designed for operation in industrial environments. Its use in residential environments may cause radio-frequency interference, requiring additional noise suppression.
Fitted with:
Suppressor circuit in actuating electronics
Lifespan, electrical
100,000 Operations (at Condensor operation)
Lifespan, mechanical
5,000,000 Operations (AC operated)
5,000,000 Operations (DC operated)
Operating frequency
200 Operations/h
1000 mechanical Operations/h (AC operated)
1000 mechanical Operations/h (DC operated)
Overvoltage category
III
Pollution degree
3
Product category
Contactors
Protection
Finger and back-of-hand proof with terminal shroud or terminal block, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
8000 V AC
Resistance
500 mΩ (Admissible transitional contact resistance - of the external control circuit device when actuating A11)
Shock resistance
10 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
8 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Signal level
5 V - 15 V, PLC signal level (A3 - A4) to IEC/EN 61131-2 (type 2), Magnet systems
Utilization category
AC-3: Normal AC induction motors: starting, switch off during running
AC-1: Non-inductive or slightly inductive loads, resistance furnaces
AC-4: Normal AC induction motors: starting, plugging, reversing, inching
Voltage type
AC/DC

Condições meteorológicas

Altitude
Max. 2000 m
Ambient operating temperature - min
-40 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
-40 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Capacidades dos terminais

Terminal capacity (busbar)
50 mm width, Main connection
Terminal capacity (copper band)
Fixing with flat cable terminal or cable terminal blocks; See terminal capacity for cable terminal blocks
Terminal capacity (flexible with cable lug)
50 - 240 mm²
Terminal capacity (flexible with ferrule)
2 x (0.75 - 2.5) mm², Control circuit cables
1 x (0.75 - 2.5) mm², Control circuit cables
Terminal capacity (solid)
1 x (0.75 - 2.5) mm², Control circuit cables
2 x (0.75 - 2.5) mm², Control circuit cables
Terminal capacity (solid/stranded AWG)
2/0 - 500 MCM, Main cables
18 - 14, Control circuit cables
Terminal capacity (stranded with cable lug)
70 - 240 mm²
Width across flats
16 mm
Screw size
M10, Terminal screw, Main connections
M3.5, Terminal screw, Control circuit cables
Screwdriver size
2, Terminal screw, Control circuit cables, Pozidriv screwdriver
Tightening torque
24 Nm, Main cable connection screw/bolt
1.2 Nm, Screw terminals, Control circuit cables

Classificação elétrica

Inrush current
Max. 30 x Ie (peak)
Rated breaking capacity at 220/230 V
6500 A
Rated breaking capacity at 380/400 V
6500 A
Rated breaking capacity at 500 V
6500 A
Rated breaking capacity at 660/690 V
6500 A
Rated breaking capacity at 1000 V
4350 A
Rated insulation voltage (Ui)
1000 V
Rated making capacity (cos phi to IEC/EN 60947)
7800 A
Rated operational current (Ie)
463 A at up to 525 V (Individual compensation, three-phase capacitors, open)
265 A at 690 V (Individual compensation, three-phase capacitors, open)
Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V
650 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
650 A
Rated operational current (Ie) at AC-3, 440 V
650 A
Rated operational current (Ie) at AC-3, 500 V
650 A
Rated operational current (Ie) at AC-3, 660 V, 690 V
650 A
Rated operational current (Ie) at AC-3, 1000 V
435 A
Rated operational current (Ie) at AC-4, 220 V, 230 V, 240 V
512 A
Rated operational current (Ie) at AC-4, 440 V
512 A
Rated operational current (Ie) at AC-4, 500 V
512 A
Rated operational current (Ie) at AC-4, 660 V, 690 V
512 A
Rated operational current (Ie) at AC-4, 1000 V
348 A
Rated operational power at AC-3, 240 V, 50 Hz
225 kW
Rated operational power at AC-3, 380/400 V, 50 Hz
355 kW
Rated operational power at AC-3, 415 V, 50 Hz
390 kW
Rated operational power at AC-3, 440 V, 50 Hz
420 kW
Rated operational power at AC-3, 500 V, 50 Hz
470 kW
Rated operational power at AC-3, 690 V, 50 Hz
630 kW
Rated operational power at AC-3, 1000 V, 50 Hz
600 kW
Rated operational power at AC-4, 220/230 V, 50 Hz
161 kW
Rated operational power at AC-4, 240 V, 50 Hz
176 kW
Rated operational power at AC-4, 415 V, 50 Hz
307 kW
Rated operational power at AC-4, 440 V, 50 Hz
326 kW
Rated operational power at AC-4, 500 V, 50 Hz
370 kW
Rated operational power at AC-4, 660/690 V, 50 Hz
494 kW
Rated operational voltage (Ue) at AC - max
1000 V
Rated operational power at AC-4, 1000 V, 50 Hz
509 kW
Safe isolation
1000 V AC, Between coil and contacts, According to EN 61140
Special purpose rating of definite purpose rating
4350 A, LRA 600 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)
725 A, FLA 600 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)
725 A, FLA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)
4350 A, LRA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)

Classificação de curto-circuito

Short-circuit current rating (basic rating)
2000 A, max. Fuse, SCCR (UL/CSA)
30 kA, SCCR (UL/CSA)
1200 A, max. CB, SCCR (UL/CSA)
Short-circuit current rating (high fault at 480 V)
2000 A, max. Fuse, SCCR (UL/CSA)
85 kA, CB, SCCR (UL/CSA)
85 kA, Fuse, SCCR (UL/CSA)
1200 A, max. CB, SCCR (UL/CSA)
Short-circuit current rating (high fault at 600 V)
85 kA, Fuse, SCCR (UL/CSA)
2000 A, max. Fuse, SCCR (UL/CSA)
85 kA, CB, SCCR (UL/CSA)
1200 A, max. CB, SCCR (UL/CSA)
Short-circuit protection rating (type 1 coordination) at 1000 V
630 A gG/gL
Short-circuit protection rating (type 1 coordination) at 400 V
1000 A gG/gL
Short-circuit protection rating (type 1 coordination) at 690 V
1000 A gG/gL
Short-circuit protection rating (type 2 coordination) at 1000 V
500 A gG/gL
Short-circuit protection rating (type 2 coordination) at 400 V
630 A gG/gL
Short-circuit protection rating (type 2 coordination) at 690 V
630 A gG/gL

AC-1/Corrente térmica convencional

Conventional thermal current ith at 40°C (3-pole, open)
1041 A
Conventional thermal current ith at 50°C (3-pole, open)
931 A
Conventional thermal current ith at 55°C (3-pole, open)
888 A
Conventional thermal current ith of main contacts (1-pole, open)
2125 A

Capacidade de comutação

Switching capacity (main contacts, general use)
1041 A, Maximum motor rating (UL/CSA)
Switching capacity (auxiliary contacts, general use)
1 A, 250 V DC, (UL/CSA)
15 A, 600 V AC, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
A600, AC operated (UL/CSA)
P300, DC operated (UL/CSA)

Sistema magnético

Behavior in marginal and transitional conditions
Sealing - Voltage drops (0.2 - 0.6 x Uc min ≤12 ms: Time is bridged successfully
Sealing - Voltage interruptions 0 - 0.2 x Uc min) > 10 ms: Drop-out of the contactor
Sealing - Pick-up phase (0.7 x Uc min - 1.15 x Uc max): Contactor switches on with certainty
Sealing - Pick-up phase (0 - 0.7 x Uc min: Contactor does not switch on
Sealing - Voltage drops (0.2 - 0.6 x Uc min) > 12 ms: Drop-out of the contactor
Sealing - Voltage drops (0.6 - 0.7 x Uc min: Contactor remains switched on
Sealing - Voltage interruptions (0 - 0.2 x Uc min ≤ 10 ms: Time is bridged successfully
Sealing - Excess voltage (1.15 - 1.3 x Uc max): Contactor remains switched on
Drop-out voltage
0.2 x US max - 0.6 x US min, DC operated
AC operated: 0.2 x US max - 0.6 x US min, AC operated
Duty factor
100 %
Pick-up voltage
0.7 - 1.15 V AC x Us
0.7 - 1.15 V DC x Us
Power consumption
Control transformer with uk ≤ 7%
Power consumption, pick-up, 50 Hz
700 W, Pull-in power, Coil in a cold state and 1.0 x Us
800 VA, Pull-in power, Coil in a cold state and 1.0 x Us
Power consumption, pick-up, 60 Hz
700 W, Pull-in power, Coil in a cold state and 1.0 x Us
800 VA, Pull-in power, Coil in a cold state and 1.0 x Us
Power consumption, sealing, 50 Hz
10.3 W, Coil in a cold state and 1.0 x Us
26.4 VA, Coil in a cold state and 1.0 x Us
Power consumption, sealing, 60 Hz
10.3 W, Coil in a cold state and 1.0 x Us
26.4 VA, Coil in a cold state and 1.0 x Us
Rated control supply voltage (Us) at AC, 50 Hz - min
48 V
Rated control supply voltage (Us) at AC, 50 Hz - max
110 V
Rated control supply voltage (Us) at AC, 60 Hz - min
48 V
Rated control supply voltage (Us) at AC, 60 Hz - max
110 V
Rated control supply voltage (Us) at DC - min
48 V
Rated control supply voltage (Us) at DC - max
100 V
Switching time (AC operated, make contacts, closing delay) - max
70 ms
Switching time (AC operated, make contacts, opening delay) - max
110 ms

Classificação do motor

Assigned motor power at 200/208 V, 60 Hz, 3-phase
200 HP
Assigned motor power at 230/240 V, 60 Hz, 3-phase
250 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase
500 HP
Assigned motor power at 575/600 V, 60 Hz, 3-phase
600 HP

Contactos

Number of auxiliary contacts (normally closed contacts)
2
Number of auxiliary contacts (normally open contacts)
2
Number of contacts (normally closed contacts)
2
Number of contacts (normally open contacts)
2

Verificação do design

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
13.67 W
Rated operational current for specified heat dissipation (In)
650 A
Static heat dissipation, non-current-dependent Pvs
6.5 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 208218 Componentes industriais para Baixa Tensão (EC000066)
Característica Valor
Tensão de alimentação de corrente nominal de 50 Hz AC (EF003978) 48 V
Tensão de alimentação de corrente nominal de 60 Hz CA (EF003979) 48 V
Tensão de alimentação de corrente nominal DC (EF003980) 48 V
Tipo de tensão para atuação (EF008242) AC/DC
Número de contatos normalmente fechados como contato principal (EF001375) 0
Número de contatos principais como contato normalmente aberto (EF001374) 3
Tipo de conexão elétrica do circuito principal (EF006819) Conexão em calha
Tensão de operação de 50 Hz CA (EF008206) 48 V
Tensão de operação AC 60 Hz (EF008207) 48 V
Corrente nominal de operação Ie em AC-1, 400 V (EF001393) 1041 A
Corrente nominal de operação Ie em AC-3, 400 V (EF001392) 650 A
Potência de operação nominal em AC-3, 400 V (EF001364) 355 kW
Corrente nominal de operação em AC-4, 400 V (EF008495) 512 A
Potência de operação nominal em AC-4, 400 V (EF008496) 280 kW
Potência nominal de operação NEMA (EF011960) 373 kW
Número de contatos auxiliares como contato normalmente aberto (EF001376) 2
Número de contatos auxiliares como contato normalmente fechado (EF001377) 2
Versão modular (EF001126) Não
Largura (EF000008) 250 mm
Altura (EF000040) 296 mm
Profundidade (EF000049) 232 mm

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM650/22(RA110) Y7-208218 208218 ES_289145.pdf 3 Mbytes DILM650/22(RA110) Y7-208218 208218 ES_289145.pdf

Avaliações: (0) ▲

Não há comentários do produto ainda.

Adicionar avaliação
Adicionar avaliação
ocultar formulário
Avaliação:
Nome:
Email:
Título:
Opinión:
Você recomendaria esse produto para comprar?
  Captcha
  Adicionar avaliação

Últimas opiniões dos nossos clientes

Todas as classificações que recebemos a partir dos itens que oferecemos são reais e verificadas. Um pequeno gesto, mas muito valioso. Então, obrigado por esse minuto você gasta em deixar-nos a sua opinião e classificação de produtos, porque nos ajuda a continuar a melhorar e oferecer maior qualidade de serviço.
