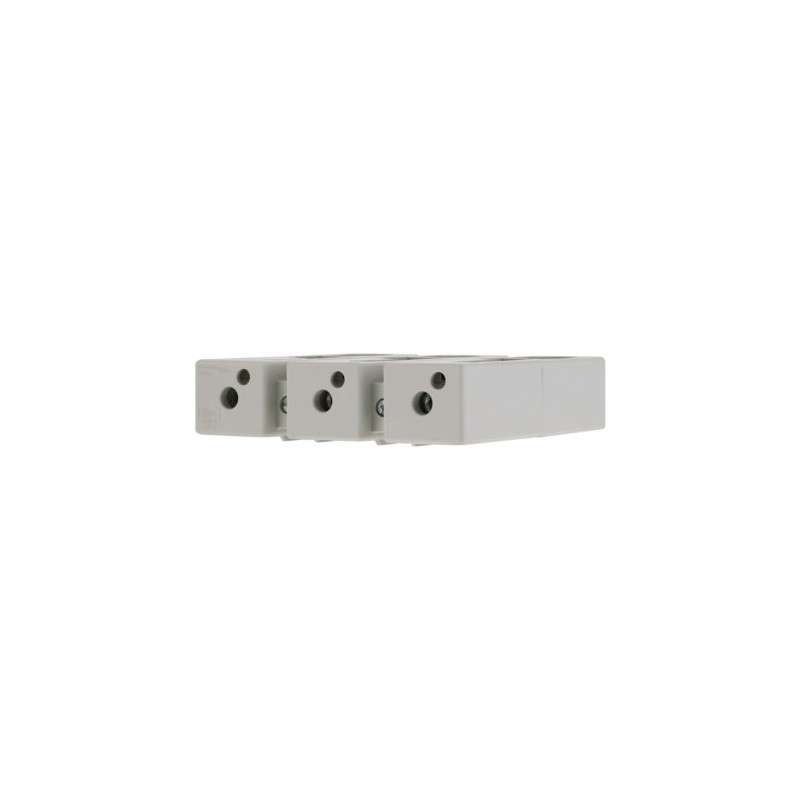

DILM400-XKU-S 208293 Y7-208293 EATON ELECTRIC flange bloco de terminais XTCEXTLA400 Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DILM400-XKU-S 208293 Y7-208293 EATON ELECTRIC flange bloco de terminais XTCEXTLA400

DILM400-XKU-S

208293

Y7-208293

EATON-MOELLER

flange bloco de terminais XTCEXTLA400

Bloco terminal para DILM250-400

Eaton Moeller® series DILM Cable terminal block, for DILM250-400

Borne de cabos para DILM250, DILM300A e DILM400 contator

Mais detalhes


Aparelhos elétricos de baixa tensão > Acessórios para a tecnologia de comutação por baixa tensão

Contatores mais de 170 A

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $230.97
Preço unitário: $230.97
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series DILM cable terminal block
Catalog Number
208293
EAN
4015082082932
Product Length/Depth
117 mm
Product Height
30 mm
Product Width
133 mm
Product Weight
0.66 kg
Certifications
CSA Class No.: 3211-04
CSA File No.: 012528
IEC/EN 60947-4-1
UL
CSA
UL File No.: E29184
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
CE
UL 508
Catalog Notes
Consisting of 3 box terminals
Model Code
DILM400-XKU-S

Geral

Accessory/spare part type
Connection terminal
Connection
Connection options: round conductors, flexible and stranded, ribbon cables.
Fitted with:
Control cable connection
Product category
Accessories

Condições meteorológicas

Ambient operating temperature - min
-40 °C
Ambient operating temperature - max
60 °C

Capacidades dos terminais

Terminal capacity
2 x (0.75 - 4) mm², solid, Control circuit cables
1 x (120 - 300) mm², solid, Main cables
2 x (70 - 240) mm², solid, Main cables
1 x (95 - 240) mm², flexible with ferrule, Main cables
2 x (70 - 185) mm², flexible with ferrule, Main cables
1 x (10 x 16 x 0.8) mm (Number of segments x width x thickness), Flat conductor, Main cable
2 x (20 x 24 x 0.5) mm (Number of segments x width x thickness), Flat conductor, Main cable
2 x (11 x 21 x 1) mm (Number of segments x width x thickness), Flat conductor, Main cable
1 x (250 -600 MCM)
2 x (2/0 AWG-500 MCM)
20 Nm, Screw terminals, Main cables
1 x (0.75 - 4) mm², solid, Control circuit cables
1 x (0.75 - 2.5) mm², flexible with ferrule, Control circuit cables
2 x (0.75 - 2.5) mm², flexible with ferrule, Control circuit cables
18 - 14, Control circuit cables
1.2 Nm, Screw terminals, Control circuit cables

Verificação do design

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 208293 Componentes industriais para Baixa Tensão (EC002498)
Característica Valor
Tipo de acessório/peça de reposição (EF000215) Terminal de conexão
Acessório (EF013236) Sim
Peça de substituição (EF013237) Não

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM400-XKU-S Y7-208293 208293 DE_101687.pdf 2 Mbytes DILM400-XKU-S Y7-208293 208293 DE_101687.pdf
