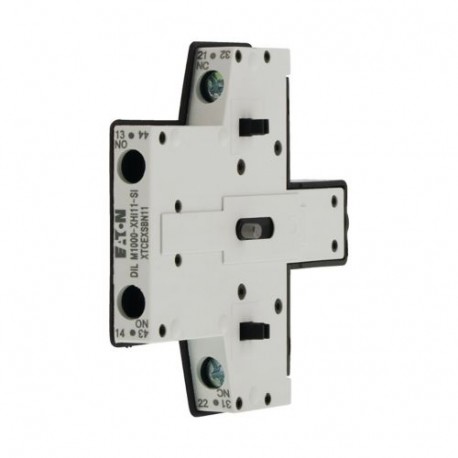

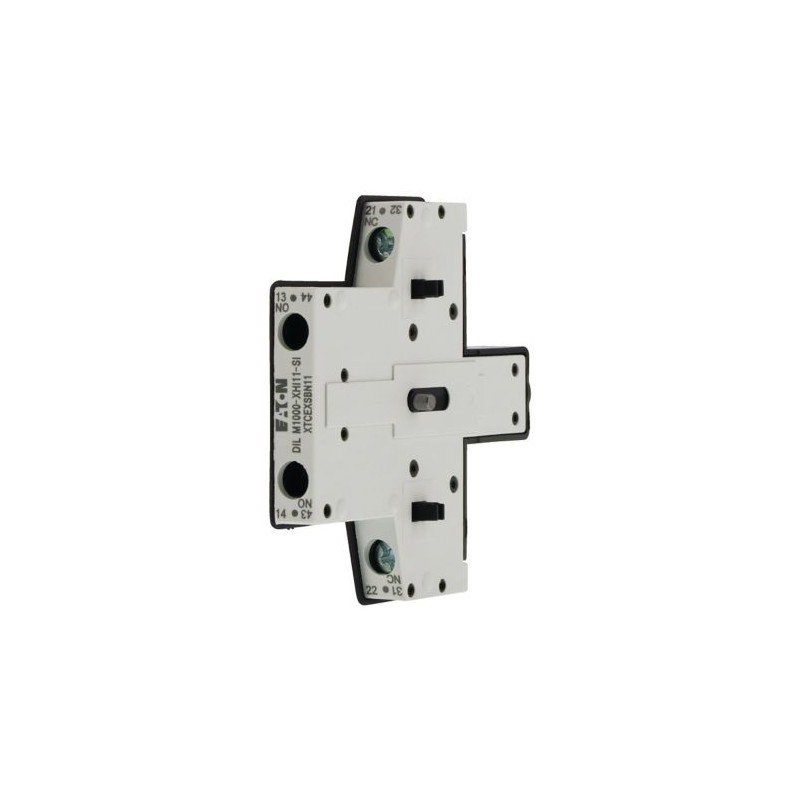

DILM1000-XHI11-SI 278425 Y7-278425 EATON ELECTRIC XTCEXSBN11 auxiliar contato 1NC + 1NO Side Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DILM1000-XHI11-SI 278425 Y7-278425 EATON ELECTRIC XTCEXSBN11 auxiliar contato 1NC + 1NO Side

DILM1000-XHI11-SI

278425

Y7-278425

EATON-MOELLER

XTCEXSBN11 auxiliar contato 1NC + 1NO Side

Contatos auxiliares 1 NO + 1 NC Conexão de parafuso lateral interno

Eaton Moeller® series DILM Auxiliary contact module, 2 pole, Ith= 10 A, 1 N/O, 1 NC, Side mounted, Screw terminals, DILM40 - DILM225A, -SI

Módulo de contato auxiliar, com contatos opostos interligados, Função: para aplicações padrão, 2 polos, Tecnologia de conexão: Terminais de parafuso, Corrente nominal AC-15 220 V 230 V 240 V: Ie= 4 A, Corrente nominal AC-15 380 V 400 V 415 V: Ie= 4 A, Corrente nominal AC-15 380 V 400 V 500 V: Ie= 4 Contatos A, N/O = Normalmente abertos: 1 N/A, Contatos N/A = Normalmente fechados: 1 NF, Tipo de montagem: Montagem lateral, Para uso com: DILM40 - DILM225A, DILMP63 - DILMP200, DILMF40 - DILMF95, Tipo: Contatos auxiliares de montagem lateral, Instruções: Contatos opostos intertravados de acordo com IEC/EN 60947-5-1 Apêndice L, dentro do módulo de contatos auxiliares, Contatos auxiliares usados como contatos espelhados de acordo com IEC/EN 60947-4-1 Apêndice F (sem abertura tardia N/C)

Mais detalhes


Aparelhos elétricos de baixa tensão > Bloco de contatos auxiliares

Contatores mais de 170 A

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $38.88
Preço unitário: $38.88
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

geralmente comprados juntos

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series DILM auxiliary contact module
Catalog Number
278425
EAN
4015082784256
UPC
782116355303
Product Length/Depth
77 mm
Product Height
77 mm
Product Width
15 mm
Product Weight
0.041 kg
Certifications
CE
IEC/EN 60947
UL
CSA
CSA Class No.: 3211-04
CSA File No.: 012528
CSA-C22.2 No. 14-05
IEC/EN 60947-4-1
UL Category Control No.: NKCR
UL 508
UL File No.: E29184
VDE 0660
Model Code
DILM1000-XHI11-SI

Features Functions

Features
Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L)
Functions
For standard applications
Fitted with:
Interlocked opposing contacts
Number of poles
Two-pole
Electric connection type
Screw connection

General

Degree of protection
IP20
Lifespan, electrical
1,300,000 Operations (at 230 V, AC-15, 3 A)
Model
Top mounting
Mounting method
Side mounting
Overvoltage category
III
Pollution degree
3
Protection
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
Rated impulse withstand voltage (Uimp)
6000 V
6000 V AC
Type
Side-mounting auxiliary contacts

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C
Ambient operating temperature (enclosed) - min
-25 °C
Ambient operating temperature (enclosed) - max
40 °C
Ambient storage temperature - min
-40 °C
Ambient storage temperature - max
80 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78

Terminal capacities

Terminal capacity (flexible with ferrule)
2 x (0.75 - 2.5) mm²
1 x (0.75 - 2.5) mm²
Terminal capacity (solid)
2 x (0.75 - 2.5) mm²
1 x (0.75 - 2.5) mm²
Terminal capacity (solid/stranded AWG)
18 - 14
Screw size
M3.5, Terminal screw
Screwdriver size
0.8 x 5.5/1 x 6 mm, Terminal screw, Standard screwdriver
2, Terminal screw, Pozidriv screwdriver
Tightening torque
1.2 Nm, Screw terminals

Electrical rating

Rated operational current (Ie)
6 A at 60 V, DC L/R ≤ 15 ms (with 1 contact in series)
1 A at 220 V, DC L/R ≤ 15 ms (with 1 contact in series)
10 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
3 A at 110 V, DC L/R ≤ 15 ms (with 1 contact in series)
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
6 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
4 A
Rated operational current (Ie) at AC-15, 500 V
1.5 A
Rated operational current (Ie) at DC-13, 24 V
2 A
Rated operational current (Ie) at DC-13, 60 V
1.5 A
Rated operational current (Ie) at DC-13, 110 V
0.8 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.3 A
Rated insulation voltage (Ui)
690 V
Rated operational voltage (Ue) at AC - max
500 V

Short-circuit rating

Rated conditional short-circuit current (Iq)
1 kA at 500 V
Short-circuit protection rating
Max. 16 A gG/gL, Fuse, Without welding, Auxiliary contacts
Short-circuit protection rating without welding
16 A gG/gL, 500 V, Max. Fuse, Contacts

Conventional thermal current Ith

Conventional thermal current ith at 60°C (3-pole, open)
10 A

Switching capacity

Switching capacity (auxiliary contacts, general use)
1 A, 250 V DC, (UL/CSA)
15 A, 600 V AC, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty)
A600, AC operated (UL/CSA)
P300, DC operated (UL/CSA)

Communication

Connection
Screw terminals

Contacts

Control circuit reliability
λ < 5 x 1/10⁷ (1 failure at 2,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1

Safety

Safe isolation
440 V AC, Between coil and auxiliary contacts, According to EN 61140
440 V AC, Between auxiliary contacts and main contacts, According to EN 61140
440 V AC, Between auxiliary contacts, According to EN 61140

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.11 W
Rated operational current for specified heat dissipation (In)
4 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 278425 Componentes industriais para Baixa Tensão (EC000041)
Característica Valor
Número de contatos como inversores (EF008257) 0
Número de contatos como contato normalmente aberto (EF008256) 1
Número de contatos como contato normalmente fechado (EF008255) 1
Número de comutadores de sinal de erro (EF007613) 0
Corrente nominal de operação Ie em AC-15, 230 V (EF001385) 6 A
Acabamento da conexão elétrica (EF003961) Ligação com parafuso
Modelo (EF000010) Clip-on
Método de montagem (EF000003) Montagem lateral
Suporte da lâmpada (EF000048) Nenhum

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM1000-XHI11-SI Y7-278425 278425 ES_277945.pdf 1 Mbytes DILM1000-XHI11-SI Y7-278425 278425 ES_277945.pdf
