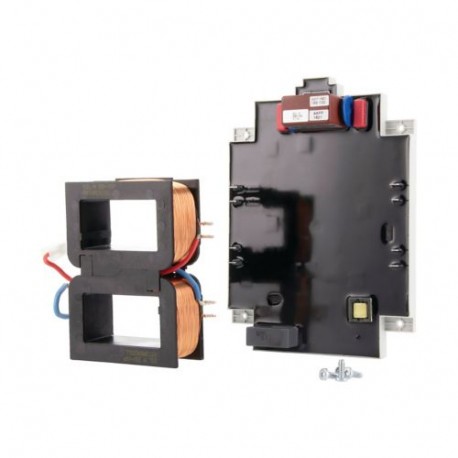

DILM250-XSP/E(RAC500) 208253 Y7-208253 EATON ELECTRIC XTCERENCOILLC bobina + Electrónica DILM185-250 Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

DILM250-XSP/E(RAC500) 208253 Y7-208253 EATON ELECTRIC XTCERENCOILLC bobina + Electrónica DILM185-250

DILM250-XSP/E(RAC500)

208253

Y7-208253

EATON-MOELLER

XTCERENCOILLC bobina + Electrónica DILM185-250

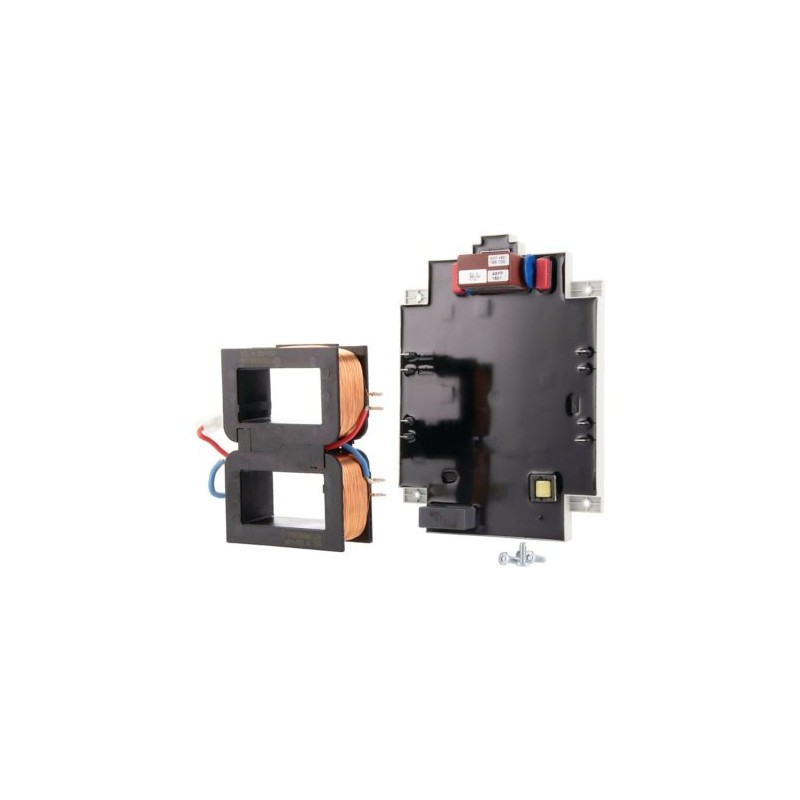

Bobina de substituição com módulo eletrônico para DILM185 225 250 RAC500

Eaton Moeller® series DILM Replacement coil, RAC 500: 250 - 500 V 40-60 Hz/DC on request, AC operation, For use with: DILM(-C)185, DILM(-C)225, DILM(-C)250

Bobina de substituição, Tensão de atuação: RAC 500: 250 - 500 V 40-60 Hz/DC a pedido, Tensão CA/CC: Operação CA, Para uso com: DILM(-C)185, DILM(-C)225, DILM(-C)250

Mais detalhes


Aparelhos elétricos de baixa tensão > Bobina para contator

Contatores mais de 170 A

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $797.80
Preço unitário: $797.80
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series DILM replacement coil
Catalog Number
208253
EAN
4015082082536
Product Length/Depth
100 mm
Product Height
175 mm
Product Width
135 mm
Product Weight
1.19 kg
Certifications
UL Category Control No.: NLDX
UL File No.: E29096
CSA
CE
UL 508
CSA-C22.2 No. 14-05
IEC/EN 60947-4-1
CSA Class No.: 3211-04
UL
CSA File No.: 1017510
Model Code
DILM250-XSP/E(RAC500)

Geral

Accessories
Individual coils
Product category
Accessories
Voltage type
AC/DC

Condições meteorológicas

Ambient operating temperature - min
-40 °C
Ambient operating temperature - max
60 °C

Sistema magnético

Rated control supply voltage (Us) at AC, 50 Hz - min
480 V
Rated control supply voltage (Us) at AC, 50 Hz - max
500 V
Rated control supply voltage (Us) at AC, 60 Hz - min
480 V
Rated control supply voltage (Us) at AC, 60 Hz - max
500 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V

Verificação do design

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 208253 Low-voltage industrial controls and switchgear (EC001043)
Característica Valor
Rated control supply voltage AC 50 Hz (EF003978) 480 V
Rated control supply voltage AC 60 Hz (EF003979) 480 V
Rated control supply voltage DC (EF003980) 0 V
Voltage type for actuating (EF008242) AC/DC

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
DILM250-XSP/E(RAC500) Y7-208253 208253 FR_208256.pdf 1 Mbytes DILM250-XSP/E(RAC500) Y7-208253 208253 FR_208256.pdf
