DC1-1D2D3NN-A6SOE1 199394 EATON ELECTRIC DC1-1D2D3NN-A6SOE1
DC1-1D2D3NN-A6SOE1
199394
EATON-MOELLER
DC1-1D2D3NN-A6SOE1

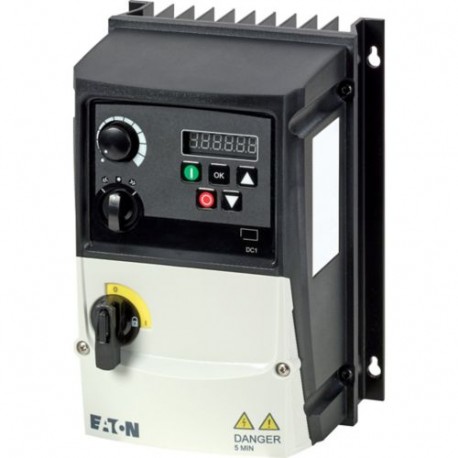

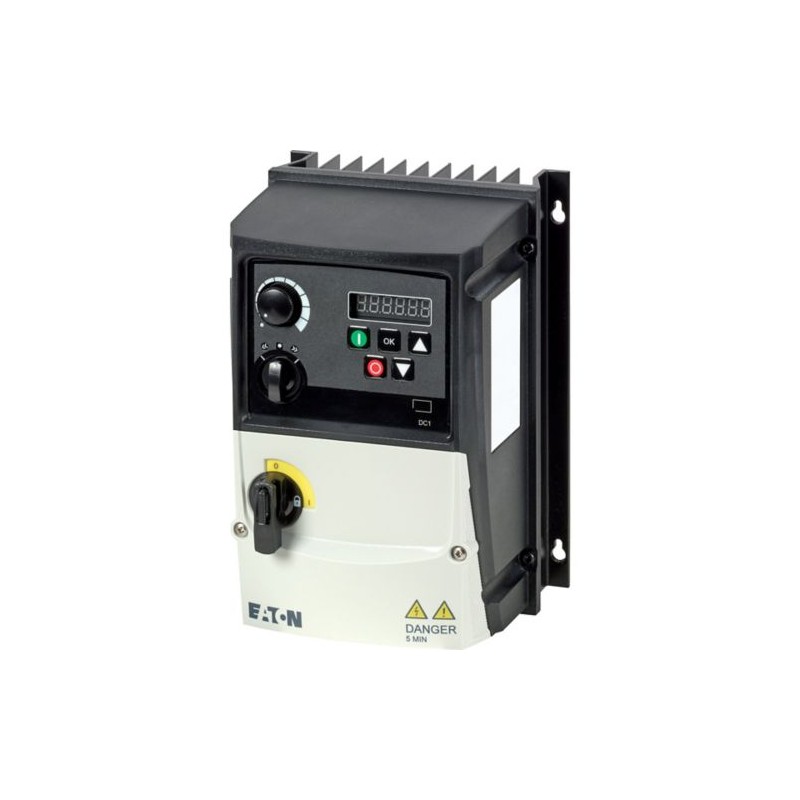

Eaton DC1 Variable frequency drive, 115 V AC, single-phase, 2.3 A, 0.37 kW, IP66/NEMA 4X, 7-digital display assembly, Local controls, Additional PCB protection, UV resistant, FS1
Conversores de Frequência Power XL
* Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER
Mais informação
▲General specifications
Product Name
Eaton DC1 Variable frequency drive
Catalog Number
199394
EAN
4015081977833
Product Length/Depth
162 mm
Product Height
232 mm
Product Width
161 mm
Product Weight
2.5 kg
Certifications
CE marking
EAC
RCM
CSA-C22.2 No. 14
UL 508C
UL Category Control No.: NMMS, NMMS7
UL Listed
UL File No.: E172143
IEC/EN61800-5
CUL
Certified by UL for use in Canada
RoHS, ISO 9001
IEC/EN 61800-5-1
UL
CE
UL report applies to both US and Canada
IEC/EN 61800-2
UkrSEPRO
IEC/EN 61800-3
EAC
RCM
CSA-C22.2 No. 14
UL 508C
UL Category Control No.: NMMS, NMMS7
UL Listed
UL File No.: E172143
IEC/EN61800-5
CUL
Certified by UL for use in Canada
RoHS, ISO 9001
IEC/EN 61800-5-1
UL
CE
UL report applies to both US and Canada
IEC/EN 61800-2
UkrSEPRO
IEC/EN 61800-3
Model Code
DC1-1D2D3NN-A6SOE1
Especificações do produto
Features
Parameterization: drivesConnect mobile (App)
Parameterization: drivesConnect
Parameterization: Fieldbus
Parameterization: Keypad
Parameterization: drivesConnect
Parameterization: Fieldbus
Parameterization: Keypad
Fitted with:
Internal DC link
PC connection
Additional PCB protection
UV resistance
7-digital display assembly
Control unit
Local controls
IGBT inverter
PC connection
Additional PCB protection
UV resistance
7-digital display assembly
Control unit
Local controls
IGBT inverter
Climatic proofing
< 95 average relative humidity (RH), no condensation, no corrosion
Connection to SmartWire-DT
No
Operating mode
Speed control with slip compensation
Synchronous reluctance motors
U/f control
BLDC motors
PM motors
Sensorless vector control (SLV)
Synchronous reluctance motors
U/f control
BLDC motors
PM motors
Sensorless vector control (SLV)
Frame size
FS1
Altitude
Above 1000 m with 1 % derating per 100 m
Max. 4000 m
Max. 4000 m
Application in domestic and commercial area permitted
Yes
Mains switch-on frequency
Maximum of one time every 30 seconds
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-20 °C
Mains voltage - max
115 V
Output voltage - max
250 V
Relative symmetric net frequency tolerance
10 %
Relative symmetric net voltage tolerance
10 %
Ambient storage temperature - max
60 °C
Ambient storage temperature - min
-40 °C
Application in industrial area permitted
Yes
Product category
Variable frequency drives
Protection
Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)
Resolution
0.1 Hz (Frequency resolution, setpoint value)
Voltage rating - max
120 V
Mounting position
Vertical
Communication interface
OP-Bus (RS485), built in
SmartWire-DT, optional
Modbus RTU, built in
CANopen®, built in
SmartWire-DT, optional
Modbus RTU, built in
CANopen®, built in
Converter type
U converter
Degree of protection
IP66
NEMA 4X
NEMA 4X
Assigned motor power at 230/240 V, 60 Hz, 1-phase
0.5 HP
Input current ILN at 150% overload
7.8 A
Assigned motor current IM at 230 V, 50 Hz, 150% overload
2 A
Protocol
EtherNet/IP
MODBUS
CAN
Other bus systems
MODBUS
CAN
Other bus systems
Overload current IL at 150% overload
3.45 A
Rated frequency - max
62 Hz
Rated frequency - min
48 Hz
Rated operational power at 220/230 V, 50 Hz, 1-phase
0.37 kW
System configuration type
AC supply systems with earthed center point
Braking torque
Max. 30 % MN, Standard - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Max. 100 % of rated operational current Ie, variable, DC - Main circuit
Cable length
150 m, unscreened, with motor choke, maximum permissible, Motor feeder
100 m, screened, with motor choke, maximum permissible, Motor feeder
75 m, unscreened, maximum permissible, Motor feeder
50 m, screened, maximum permissible, Motor feeder
100 m, screened, with motor choke, maximum permissible, Motor feeder
75 m, unscreened, maximum permissible, Motor feeder
50 m, screened, maximum permissible, Motor feeder
Output voltage (U2)
230 V AC, 3-phase
Number of inputs (analog)
2
Number of inputs (digital)
4
Radio interference class
Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
Number of outputs (digital)
1
Starting current - max
175 % IH
Number of phases (input)
1
Number of relay outputs
1 (parameterizable, N/O, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))
Number of phases (output)
3
Power consumption
18.5 W
Rated control supply voltage
10 V DC (Us, max. 10 mA)
Efficiency
97 % (η)
Supply frequency
50/60 Hz
Leakage current at ground IPE - max
4.8 mA
Mains voltage - min
110 V
Nominal output current I2N
2.3 A
Number of HW-interfaces (industrial ethernet)
0
Number of HW-interfaces (other)
0
Number of HW-interfaces (parallel)
0
Number of HW-interfaces (RS-232)
0
Number of HW-interfaces (RS-422)
0
Number of HW-interfaces (RS-485)
1
Number of HW-interfaces (serial TTY)
0
Number of HW-interfaces (USB)
0
Number of interfaces (PROFINET)
0
Number of outputs (analog)
1
Output at linear load at rated output voltage - max
0.37 kW
Output at quadratic load at rated output voltage - max
0.37 kW
Output frequency - max
500 Hz
Output frequency - min
0 Hz
Suitable for
Branch circuits, (UL/CSA)
Switching frequency
8 kHz, 4 - 32 kHz adjustable (audible), fPWM, Power section, Main circuit
Rated operational current (Ie)
2.3 A at 150% overload (at an operating frequency of 6 kHz and an ambient air temperature of +40 °C)
Rated operational voltage
115 V AC, 1-phase
Short-circuit protection rating
15 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring
Datasheet - PDF
