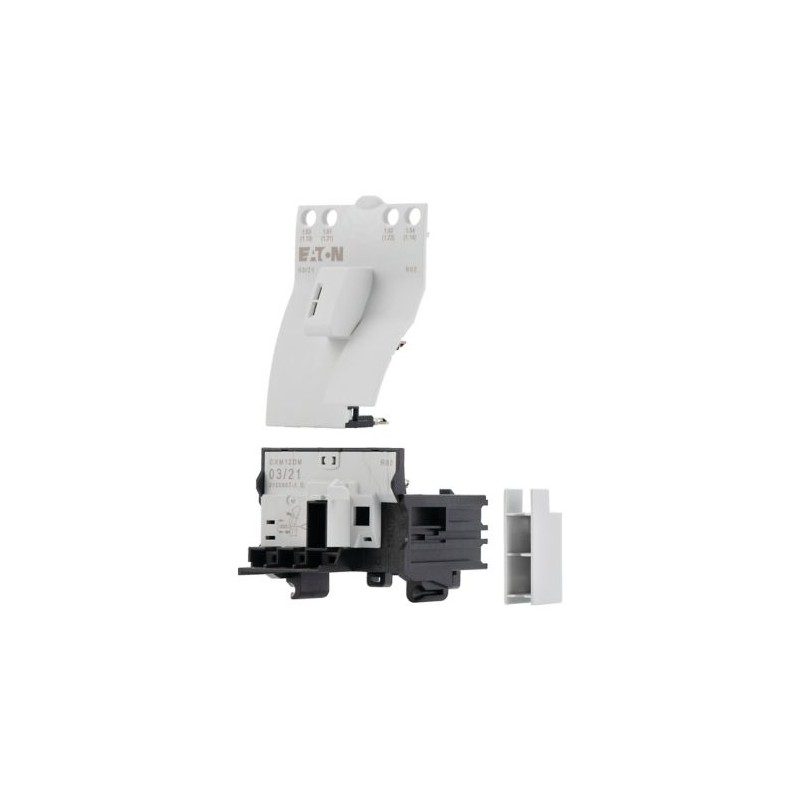

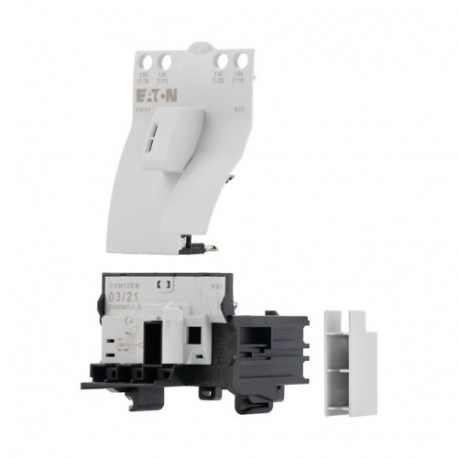

PKZM0-XDM12 283149 Y7-283149 EATON ELECTRIC Game Connection XTPAXTPCB Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

PKZM0-XDM12 283149 Y7-283149 EATON ELECTRIC Game Connection XTPAXTPCB

PKZM0-XDM12

283149

Y7-283149

EATON-MOELLER

Game Connection XTPAXTPCB

Conexão definida Direct Starter para conexão entre PKZM0 e

Eaton Moeller® series PKZM0 Wiring set, For DOL Starter, DILM7-M15

O conjunto de cabos pode ser usado para o acionador de partida DOL para PKZM0 + DILM7, PKZM0 + DILM9, PKZM0 + DILM12, PKZM0 + DILM15

Mais detalhes


Aparelhos elétricos de baixa tensão > Jogo de cabos para disjuntor

Chaves de proteção do motor

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $8.25
Preço unitário: $8.25
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

geralmente comprados juntos

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series PKZM0 Accessory Wiring set
Catalog Number
283149
EAN
4015082831493
Product Length/Depth
91 mm
Product Height
67 mm
Product Width
45 mm
Product Weight
0.058 kg
Certifications
UL
UL File No.: E36332
CSA-C22.2 No. 14
CE
CSA
IEC/EN 60947-4-1
CSA Class No.: 3211-05
CSA File No.: 165628
UL 508
UL Category Control No.: NLRV
Model Code
PKZM0-XDM12

Geral

Accessories
Cable routing, main current wiring between PKZM0 and contactor with tool-less plug connection, mechanical connection element for PKZM0 and contactor included with supplied equipment.
Model
Direct circuit
Product category
Accessories

Condições meteorológicas

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Classificação elétrica

Rated operational voltage (Ue) - max
415 VAC

Verificação do design

Equipment heat dissipation, current-dependent Pvid
1.5 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.5 W
Rated operational current for specified heat dissipation (In)
15.5 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 283149 Componentes industriais para Baixa Tensão (EC002050)
Característica Valor
Adaptado ao número de polos (EF001589) 3
Modelo (EF000010) Circuito direto

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
PKZM0-XDM12 Y7-283149 283149 ES_283149.pdf 2 Mbytes PKZM0-XDM12 Y7-283149 283149 ES_283149.pdf
