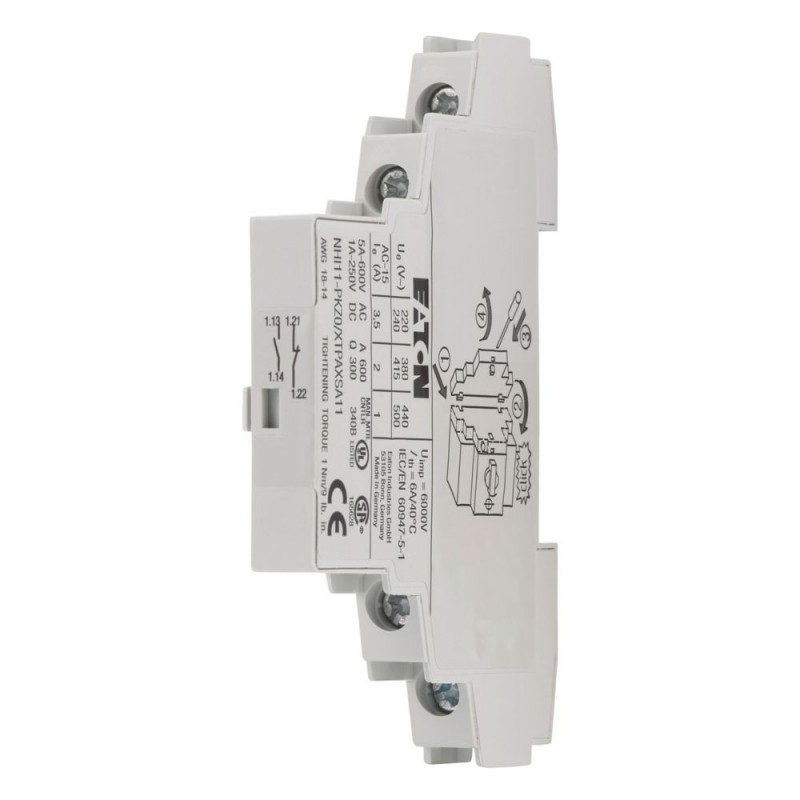

NHI11-PKZ0 072896 Y7-72896 EATON ELECTRIC XTPAXSA11 auxiliar contato 1NC + 1NO Side Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

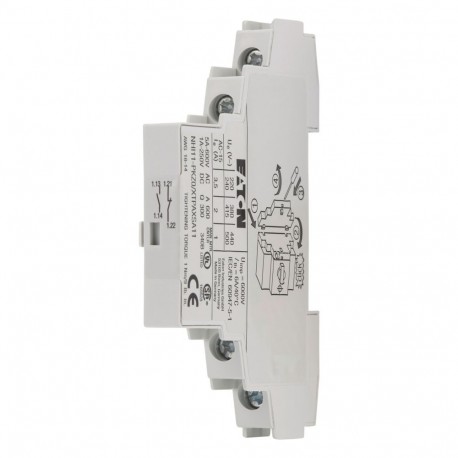

NHI11-PKZ0 072896 Y7-72896 EATON ELECTRIC XTPAXSA11 auxiliar contato 1NC + 1NO Side

NHI11-PKZ0

072896

Y7-72896

EATON-MOELLER

XTPAXSA11 auxiliar contato 1NC + 1NO Side

Contato auxiliar lateral 1 NO + 1 NC Conexão de parafuso

Eaton Moeller® series NHI Standard auxiliary contact, 1 N/O, 1 NC, Can be retrofitted on the right side of motor-protective circuit-breakers, Screw terminals

Contato Auxiliar Padrão, Contatos N/O = Normalmente Aberto: 1 N/O, Contatos N/A = Normalmente Fechado: 1 NF, Para Uso Com: PKZM01, PKZM0, PKZM4, PKZM0-T, PKM0, PKE

Mais detalhes


Aparelhos elétricos de baixa tensão > Bloco de contatos auxiliares

Chaves de proteção do motor

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $12.81
Preço unitário: $12.81
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

geralmente comprados juntos

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series NHI Accessory Standard auxiliary contact
Catalog Number
072896
EAN
4015080728962
Product Length/Depth
68 mm
Product Height
90 mm
Product Width
15 mm
Product Weight
0.033 kg
Certifications
CE
UL 508
CSA File No.: 165628
UL
UL File No.: E36332
IEC/EN 60947-4-1
CSA-C22.2 No. 14
UL Category Control No.: NLRV
CSA
CSA Class No.: 3211-05
Catalog Notes
Can be retrofitted on the right side of motor-protective circuit-breakers
Model Code
NHI11-PKZ0

Funcionalidades e Funções

Electric connection type
Screw connection
Features
Interlocked opposing contacts

Geral

Lifespan, electrical
50,000 Operations
Model
Top mounting
Mounting method
Side mounting
Overvoltage category
III
Pollution degree
3
Product category
Accessories
Rated impulse withstand voltage (Uimp)
6000 V AC
Used with
Motor protective circuit-breaker

Condições meteorológicas

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Capacidades dos terminais

Terminal capacity (solid/flexible with ferrule)
0.75 - 1.5 mm²
Terminal capacity (solid/stranded AWG)
18 - 14, Screw terminals

Classificação elétrica

Rated operational current (Ie)
1 A at AC-15, 440 V 500 V
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
3.5 A
Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V
2 A
Rated operational current (Ie) at DC-13, 110 V
0.5 A
Rated operational current (Ie) at DC-13, 220 V, 230 V
0.25 A
Rated operational current (Ie) at DC-13, 24 V
2 A
Rated operational current (Ie) at DC-13, 60 V
1 A
Rated operational voltage (Ue) at AC - max
500 V
Rated operational voltage (Ue) at DC - max
250 V
Safe isolation
440 V, Between auxiliary contacts and main contacts, According to EN 61140
Short-circuit protection rating without welding
10 A gG/gL, Fuse, Auxiliary contacts

Comunicação

Connection type
Screw connection

Contactos

Control circuit reliability
< 2 λ, < 1 failure at 100,000,000 Operations (at Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1

Verificação do design

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.04 W
Rated operational current for specified heat dissipation (In)
3.5 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 072896 Componentes industriais para Baixa Tensão (EC000041)
Característica Valor
Número de contatos como inversores (EF008257) 0
Número de contatos como contato normalmente aberto (EF008256) 1
Número de contatos como contato normalmente fechado (EF008255) 1
Número de comutadores de sinal de erro (EF007613) 0
Corrente nominal de operação Ie em AC-15, 230 V (EF001385) 3.5 A
Acabamento da conexão elétrica (EF003961) Ligação com parafuso
Modelo (EF000010) Clip-on
Método de montagem (EF000003) Montagem lateral
Suporte da lâmpada (EF000048) Nenhum

Datasheet - PDF

▲
