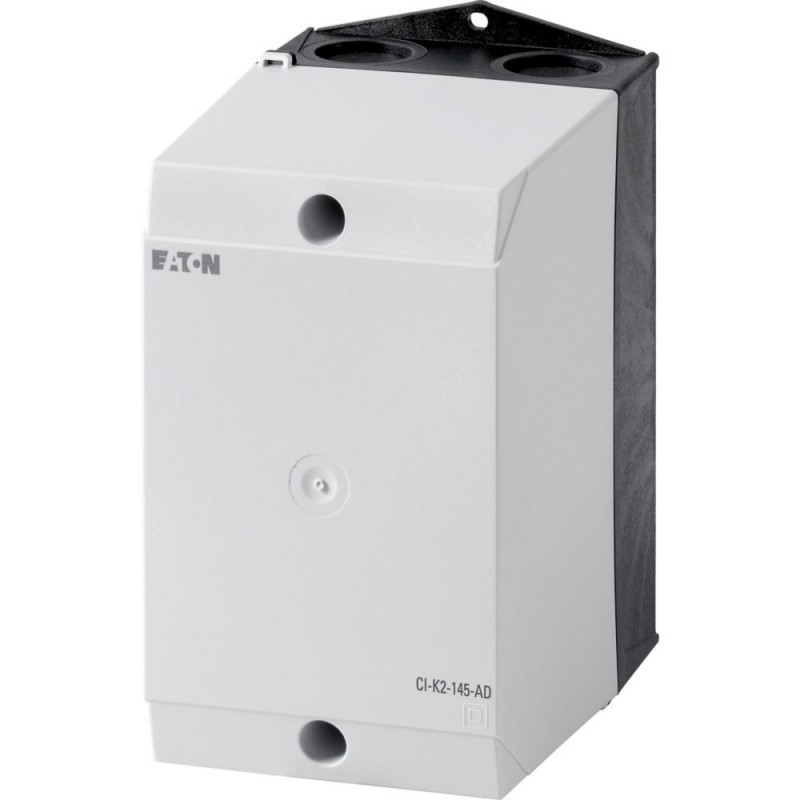

CI-K2-145-AD 207632 Y7-207632 EATON ELECTRIC Insulated enclosure, HxWxD 160x100x145mm, +component adapter DI.. Ver maior
As imagens são só a título ilustrativo. Por favor, consulte a ficha técnica.

CI-K2-145-AD 207632 Y7-207632 EATON ELECTRIC Insulated enclosure, HxWxD 160x100x145mm, +component adapter DI..

CI-K2-145-AD

207632

Y7-207632

EATON-MOELLER

Insulated enclosure, HxWxD=160x100x145mm, +component adapter DILE+ZE

Caixa isolada, placa, 100x160x145

Eaton Moeller® series CI-K Insulated enclosure, HxWxD=160x100x145mm, +component adapter DILE+ZE CI-K2-145-AD

Caixa isolada, com placa adaptadora para contatores DILE com relé de proteção do motor ZE, Gama de produtos: Caixas pequenas CI-K, Caixas básicas, Unidade única, Grau de proteção: Frontal IP65, IP65, com entrada de cabo de pressão, Material: Policarbonato reforçado com fibra de vidro, Cor: Base de caixa RAL 9005, preto, RAL 7035 apenas operador, Cinza claro, Descrição: Aberturas de entrada de cabos métricos na parte superior, inferior e traseira, Entrada de cabo de controle, indicador de lâmpada... pode ser montado na base perfurada M20/M25, Entrada de cabos: Diafragma de entrada de cabo de pressão, Dimensões Largura: 100 mm, Altura: 160 mm, Profundidade: 145 mm, Profundidade de montagem com placa de montagem: 124 mm, Normas: IEC/EN 60529, DIN EN 62208

Mais detalhes


Aparelhos elétricos de baixa tensão > Caixa vazia para aparamenta

Caixas de isolamento

Produto novo em sua embalagem original com todas as garantias e certificações de EATON-MOELLER

Preço total: $39.27
Preço unitário: $39.27
Este preço é por unidade e mostra o valor líquido (excluindo impostos indirectos se aplicável).

Se o nosso preço não é o melhor, peça-nos uma cotação Solicitar uma cotação

Related products

▲

Best sellers

▲

Mais informação

▲


General specifications

Product Name
Eaton Moeller® series CI-K Insulated enclosure
Catalog Number
207632
EAN
4015082076320
Product Length/Depth
181 mm
Product Height
145 mm
Product Width
100 mm
Product Weight
0.46 kg
Certifications
IEC/EN 60529
DIN EN 62208
UL94: HB
UL94: VO/1.5 mm thickness
IEC 60068-2-11
Catalog Notes
Lamp indicator L‐… can be mounted in base knock-out M20/M25
Model Code
CI-K2-145-AD

Especificações do produto

Type
Basic enclosure
Features
UV resistance beneath protective shield
Halogen free
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Not applicable.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Meets the product standard's requirements.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Meets the product standard's requirements.
Fitted with:
Adapter plate for contactors DILE motor-protective relay ZE
Control cable entry
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Enclosure material
1 Ω x 10¹³ (Surface resistance to IEC 60093)
Plastic
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
18.5 W
Heat dissipation per pole, current-dependent Pvid
0 W
Mounting depth
124 mm
Mounting weight capacity - max
0.7 kg
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
Product category
Empty enclosures
Enclosure color
Light gray, Operator (RAL 7035)
Black (RAL 9005)
Light gray, Cover (RAL 7035)
Environmental resistance
Resistant against alkalis
Partly resistant to greases
Chemical resistant (Push-through membrane (CI-K1/CI-K2) and sealing material)
Partly resistant to acids (> 10%)
Resistant against gasoline
Chemical resistant (Base, Cover)
Not resistant to Mineral oil
Partly resistant to benzene
Not resistant to benzene
Partly resistant to alcohol
Not resistant to alkalis
Resistant against mineral oil
Resistant against alcohol
Resistant against greases
Resistant against benzene
Resistant against salt solutions
Resistant against acids (< 10%)
Cover material
Glass-fiber reinforced polycarbonate
Degree of protection
IP65
NEMA Other
Model
Surface mounting
Dielectric strength
30 kV/mm, according to IEC 60243-1
Degree of protection (front side)
IP65
Temperature resistance
-40 - 80 °C (gasket)
-40 - 120 °C (enclosure)
Suitable for
Emergency stop
Flammability characteristics
650 °C/1 mm thick (push-through membrane and seal material) to VDE 0471 Part 2)
960 °C/1 mm thickness (base, cover; glow wire to VDE 0471 Part 2)
Knockouts
Push-through cable entry diaphragm
Metric cable entry knockouts at the top, bottom and back plate
Impact resistance
IK06 (according to EN 50102)
Radiated heat dissipation with separate mounting
18.5 W (at an ambient temperature of 20 °C)
Surface treatment
Resistant to corrosion
Track resistance
CTI 175 (base, to IEC 60112)
CTI 175 (cover, to IEC 60112)
Water consumption
0.29 % (According to DIN EN ISO 62)

ETIM for 207632 Componentes industriais para Baixa Tensão (EC000712)
Característica Valor
Material da caixa protetora (EF001596) Plástico
Largura (EF000008) 100 mm
Altura (EF000040) 145 mm
Profundidade (EF000049) 181 mm
Com tampa transparente (EF001094) Não
Adequado para paragem de emergência (EF001433) Sim
Modelo (EF000010) Montagem saliente
Grau de proteção (IP) (EF005474) IP65
Grau de proteção (NEMA) (EF011959) Outro

Datasheet - PDF

▲
Título: Tamanho: Tipo:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
CI-K2-145-AD Y7-207632 207632 ES_225325.pdf 1 Mbytes CI-K2-145-AD Y7-207632 207632 ES_225325.pdf
